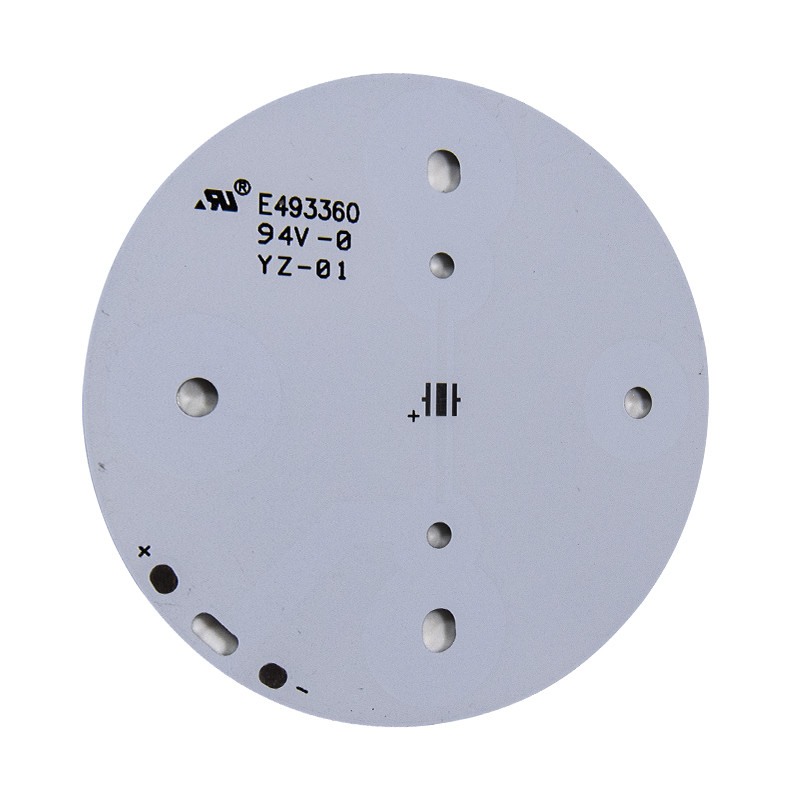

Round HASL ENIG Custom LED PCB 94V0 Electronics Circuit Board
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: round pcb 01
High Light:



6oz Copper Custom LED PCB


94V0 Electronics Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Copper Thickness: 2oz/3oz/4oz/6oz
Base Material: Aluminum Base
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL,OSP,ENIG, Gold Fingers,etc
Color: Green, Red, Blue, Black, White Etc
Application: Medical Equipments,automotive Electronics,industry
Product Description

Round HASL ENIG Custom LED PCB 94V0 Electronics Circuit Board


Electronics circuit board round 94v-0 pcb board aluminum base led pcb


What is Aluminum PCB?

Before we look into aluminum PCB, we must have a clear concept of  what is PCB?PCB is an acronym of Printed Circuit Board, which uses conductive paths and traces incorporated on a single board that electrically connects different electronic components on the board. Copper is used to provide a conductive path that is laminated on the substrate material.

  •  Aluminum PCB, also referred as metal base PCB, is a type of PCB that consists of copper-clad laminate and a thin dielectric thermally conductive and electrically insulating layer of Aluminium.

  •  The copper foil adopts the desired circuit pattern while the aluminum base allows the heat-dissipating with the help of a dielectric placed between the layers.

  •  Aluminum constructions are mainly divided into three layers

  •  Circuit Layer: It is a copper layer that comes with a thickness of around 1 to 10 oz.

  •  Insulating Layer: A dielectric layer of thermally conductive and electrically insulating material

  •  Base Aluminum Layer: This is mainly composed of copper or aluminum metal substrate. There are multiple thicknesses available, however the most common thickness is 1mm.

Copper Thickness
Max 6oz
Board Thickness
Min. Hole Size
Min. Line Width
0.075mm (3mil)
Min. Line Spacing
0.075mm (3mil)
Surface Finishing
HASL,OSP,ENIG, Gold fingers,etc
Board material
FR-4 Tg130-Tg180/ FR-4 CTI175 / FR-4 CTI300/CEM-1/CEM-3
V-cut dept tolerance: +/-0.1mm
Wrap and twist
Minimun thickness of soldermask
Green/ White/ Black/ Blue/ Yellow etc.
Testing Service
AOI X-Ray Function Test


Round HASL ENIG Custom LED PCB 94V0 Electronics Circuit Board 0





Round HASL ENIG Custom LED PCB 94V0 Electronics Circuit Board 1
