Washing Machine Copper 4oz Custom LED PCB For Illumination Lighting
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Led PCB Board 03
High Light:

Copper 4oz Custom LED PCB


Copper 3oz Custom LED PCB


Copper 3oz Washing Machine PCB Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Base Material: Aluminum Base
Layer: Single Layer
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL, Gold Fingers,Immersion Gold
Combustibility: UL94v0 Standard
Application: Medical Equipments,automotive Electronics,industry
Copper Thickness: 0.5oz, 1oz, 2oz, 3oz And 4oz
Product Description

Washing Machine Copper 4oz Custom LED PCB For Illumination Lighting


Washing Machine PCB Board Led PCB Board Aluminum For Illumination Lighting


Advantages of Aluminum PCB:

1. The high level of heat dissipation provided by aluminum PCB makes them an ideal choice for applications involving high temperature and running hours.

2. Low cost is another benefit that makes aluminum effective and economical. Aluminum is a common metal, easily available that can be mined and refined at a very low cost.

3. The non-toxic nature of aluminum makes it environmentally friendly and an ideal choice for applications that involve the recycling of products.

4. The strength and durability provided by aluminum-based products are much higher than fiberglass and ceramic materials.

5.  Aluminum material is very strong and sturdy in nature that makes it capable of enduring more pressure and stress when it comes to manufacturing and material handling as compared to other metals.

6.  Aluminum is very lightweight. It adds strength and durability to the product without adding additional weight.

7. The thermal conductance of dielectric used is 5 to 10 times higher than old epoxy glass.

8. Thermal transfer is more efficient and reliable than regular PCB.


PCB Item Manufacture Capacity
Copper thickness 0.5oz, 1oz, 2oz, 3oz and 4 oz
Dielectric Thickness (to Substrate) 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm
Finished Board Thickness 0.4mm To 4.0mm
Thickness Tolerance +/-10%
Aluminum Machining Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available
Min. Finish hole size 0.25mm
Max.working voltage 2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric)
Min.Track Width 0.2mm (8mils)
Min.Track gap 0.2mm (8mils)
Min. SMD pad pitch 0.2mm (8mils)
Surface Finishing HASL, HASL Leadfree, Immersion gold, Flash gold, OSP
Soldermask color White, Black, others Available
Legend color Black, White, others Available
Etest YES

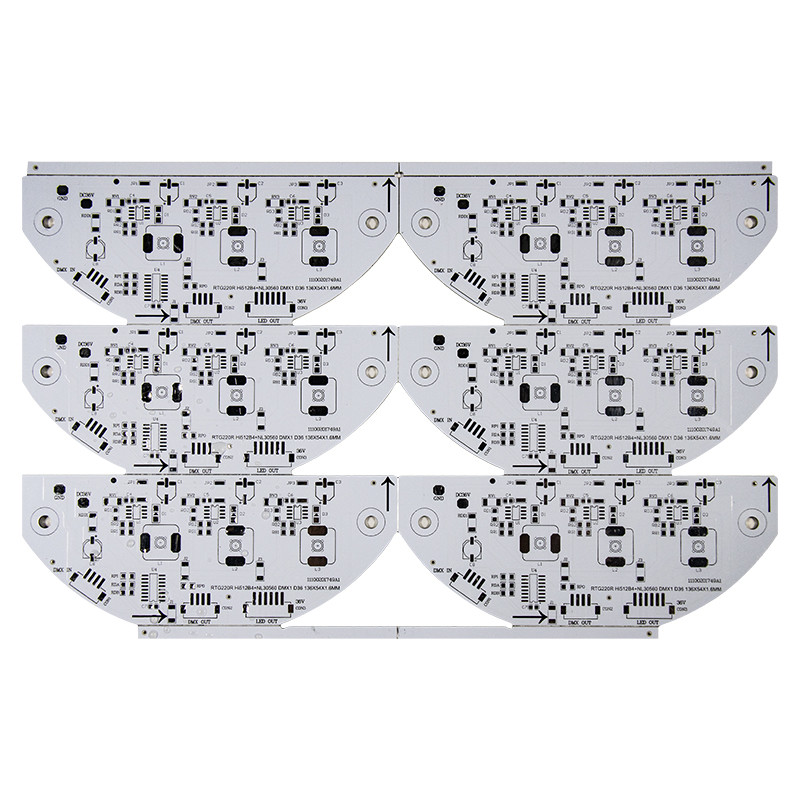

Washing Machine Copper 4oz Custom LED PCB For Illumination Lighting 0

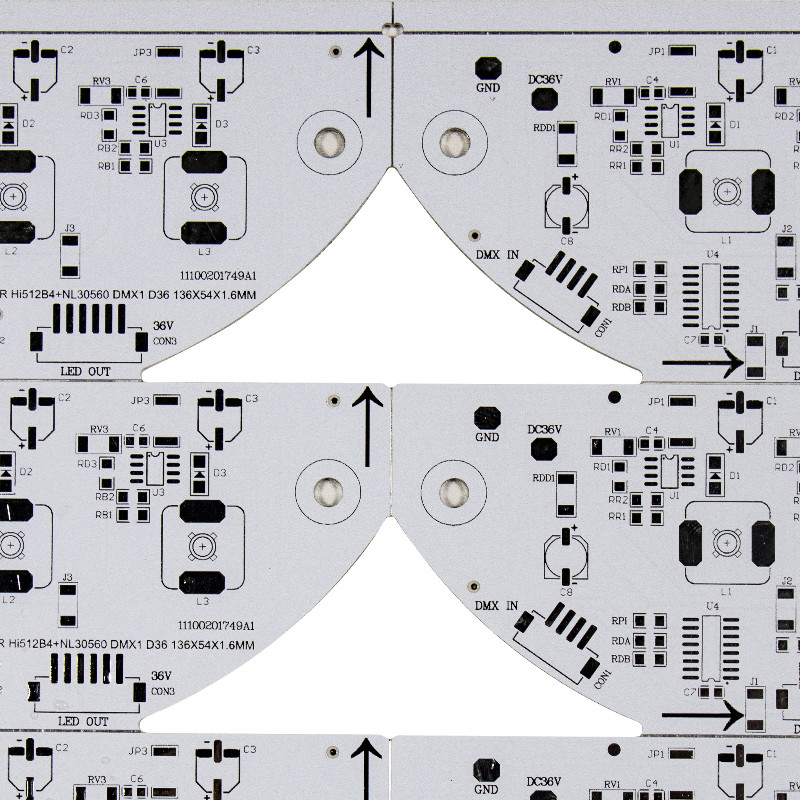

Washing Machine Copper 4oz Custom LED PCB For Illumination Lighting 1



Q1: How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q2: What about the transportation and delivery date?
A:  Normally,we use international express(such as,Fedex,DHL,TNT) to deliver samples and small volume orders. For large mass order, we can arrange shipping by sea.
