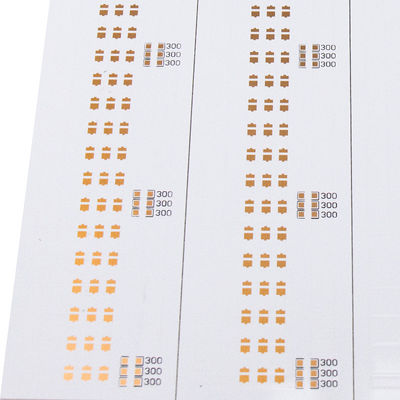

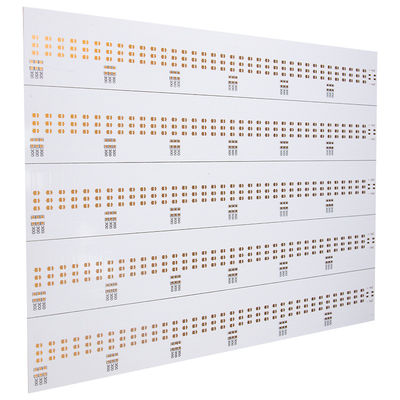

Single Sided ROHS 12V LED Light Circuit Board SMT Aluminum Base
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Led PCB Board 06
High Light:

ROHS 12V LED Light Circuit Board


SMT 12V LED Light Circuit Board


ROHS 12V Printed Circuit Board Assembly

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Base Material: Aluminum Base
Min. Line Spacing: 0.15mm
Min. Line Width: 0.15mm
Surface Finishing: HASL, Gold Fingers,Immersion Gold
Solder Mask Color: Green, Yellow, Black, White, Red, Blue
Profiling: Punching, Routing, V-cut, Golden Finger, Beveling
Product Description

Single Sided ROHS 12V LED Light Circuit Board SMT Aluminum Base


Aluminum SMT LED PCB Board Single-side ROHS 12v Led Light Circuit Board


Aluminum PCBs are printed Circuit Boards that contain a thin layer of conductive dielectric material. They are also known as Aluminum Clad, Aluminum base, MCPCB (Metal Clad Printed Circuit Board), IMS (Insulated Metal Substrate), Thermally Conductive PCBs, etc. Aluminum PCBs were developed in the 1970s, soon after which they’re applications increased dramatically. The first application was their use in Amplification Hybrid Integrated Circuits.

The basic structure of Aluminum PCBs is four layered. It consists of a layer of copper foil, a dielectric layer, an aluminum base layer, and an aluminum base membrane.

●  Use of surface mount technology (SMT);
●  The circuit design of the thermal diffusion of highly effective treatment;
●  Reduce product operating temperature,increase the power density and reliability,extended product life;
●  Smaller footprint,lower hardware and assembly costs;
●  Replace the fragile ceramic base pcb,better mechanical durability.
As an advocate to promote energy-saving lamps and colorful energy-saving LED lights are very popular by the market, the aluminum pcb used in LED lights have begun a large-scale applications.

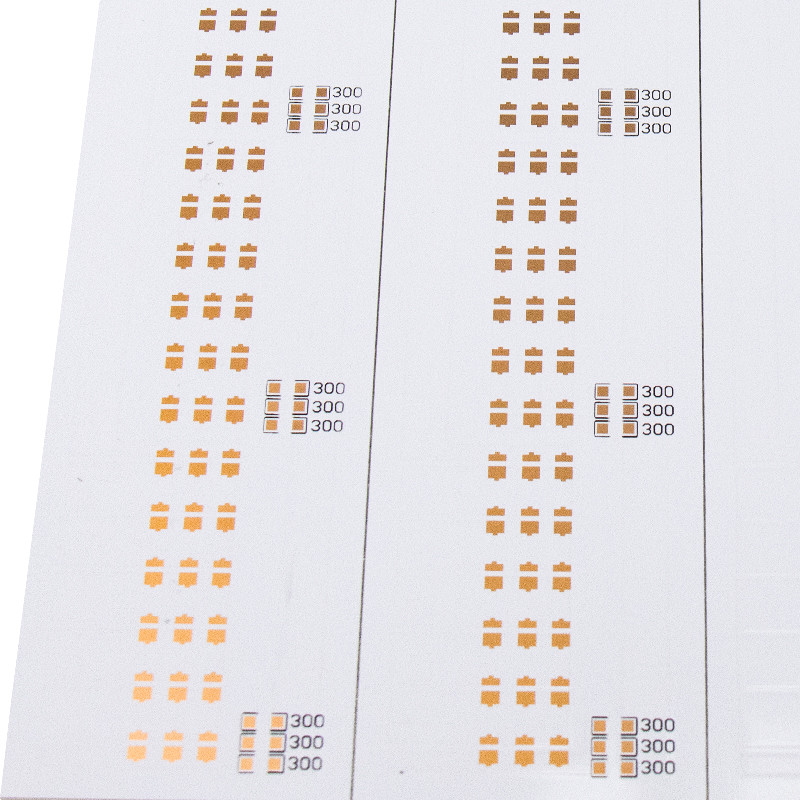

Single Sided ROHS 12V LED Light Circuit Board SMT Aluminum Base 0

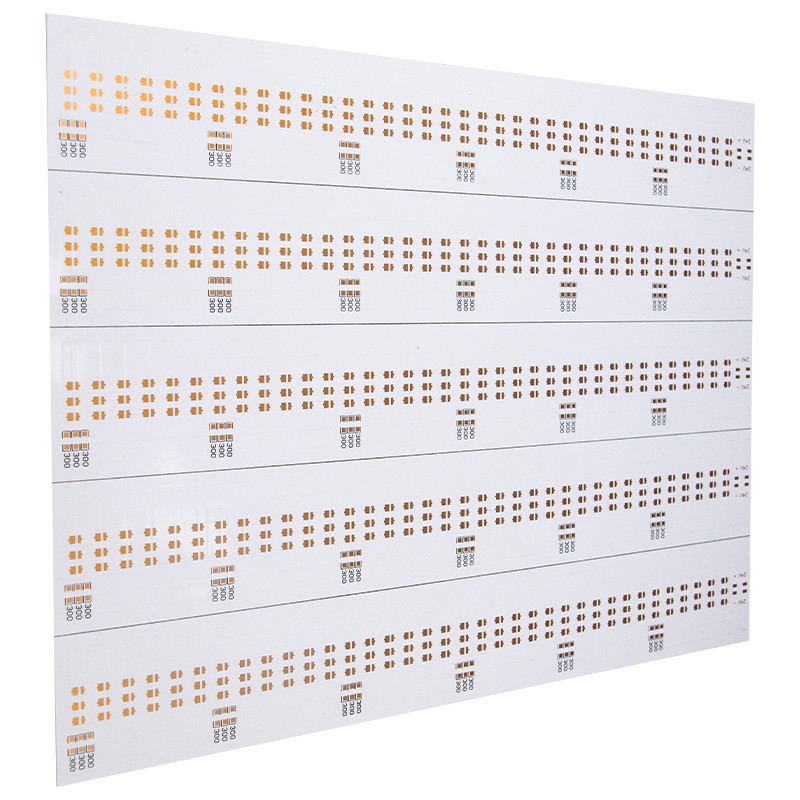

Single Sided ROHS 12V LED Light Circuit Board SMT Aluminum Base 1




Q1: How about your supply capacity?

A: For PCB board, you need to prepare files of Gerber file,it should including RS274X,ODB++, DXF, PCB, PCBDOC etc formats.For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample picture or 3D PDF version file etc.


Q2: What file do you need to prepare if you want to get an quotation from us?

A: A:We can offer one-stop service from PCB manufacturing to PCB assembling, testing,housing and other value-added service.
