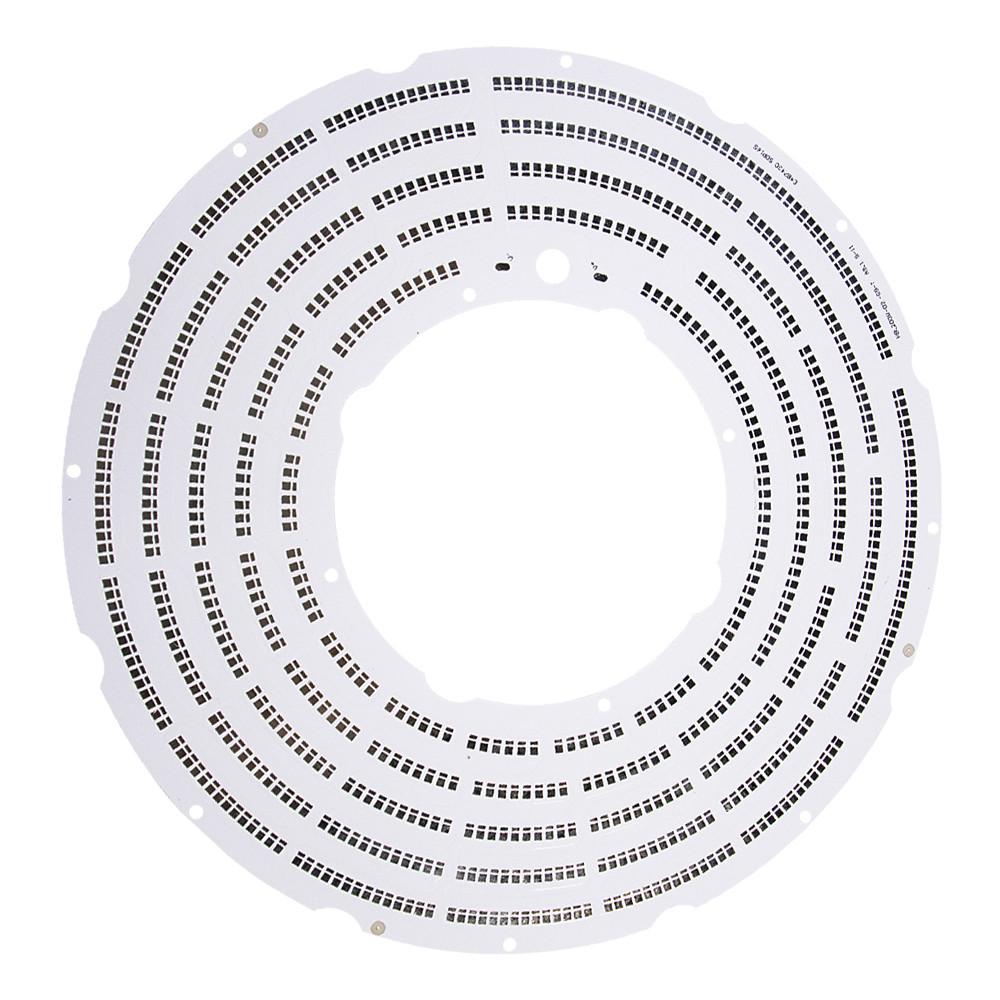

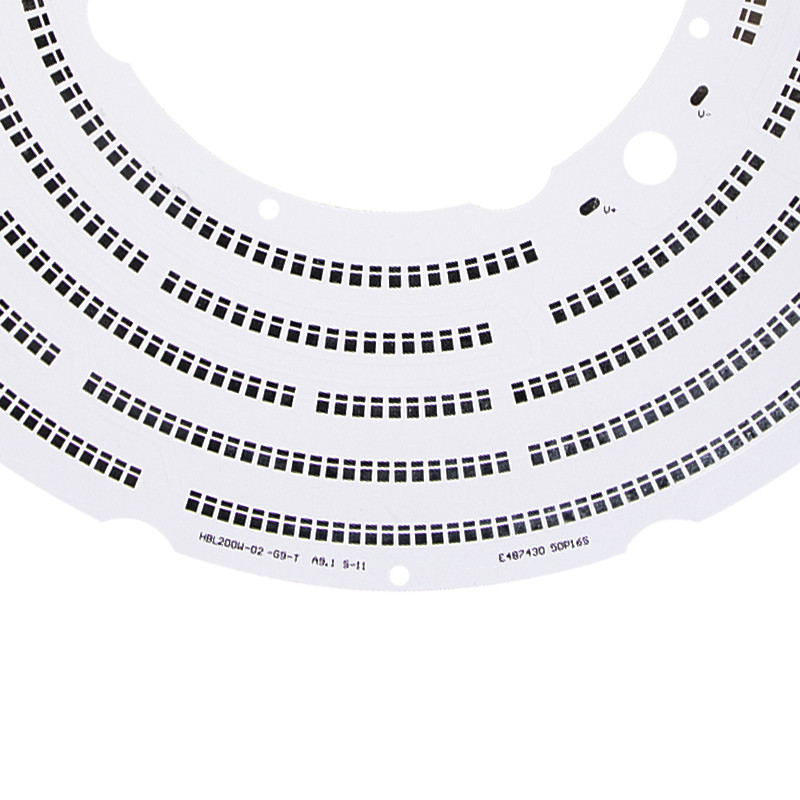

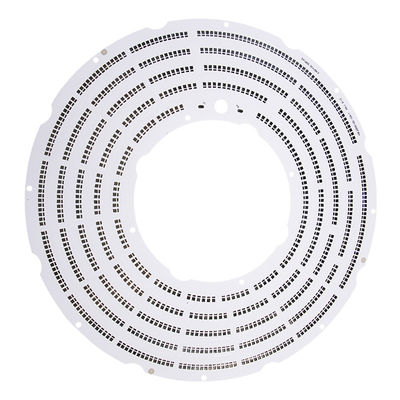

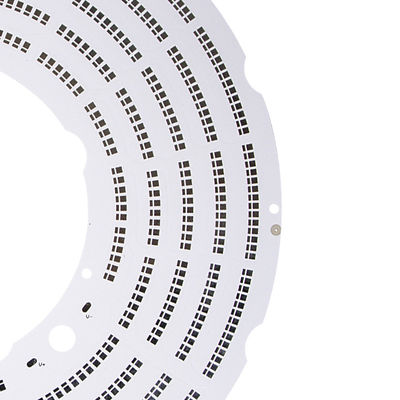

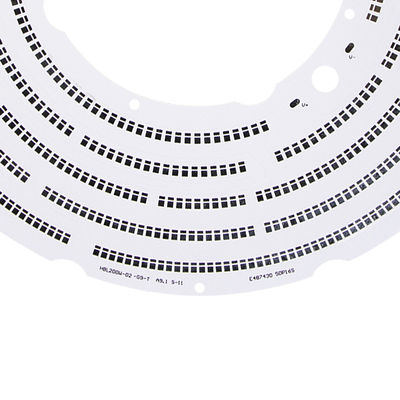

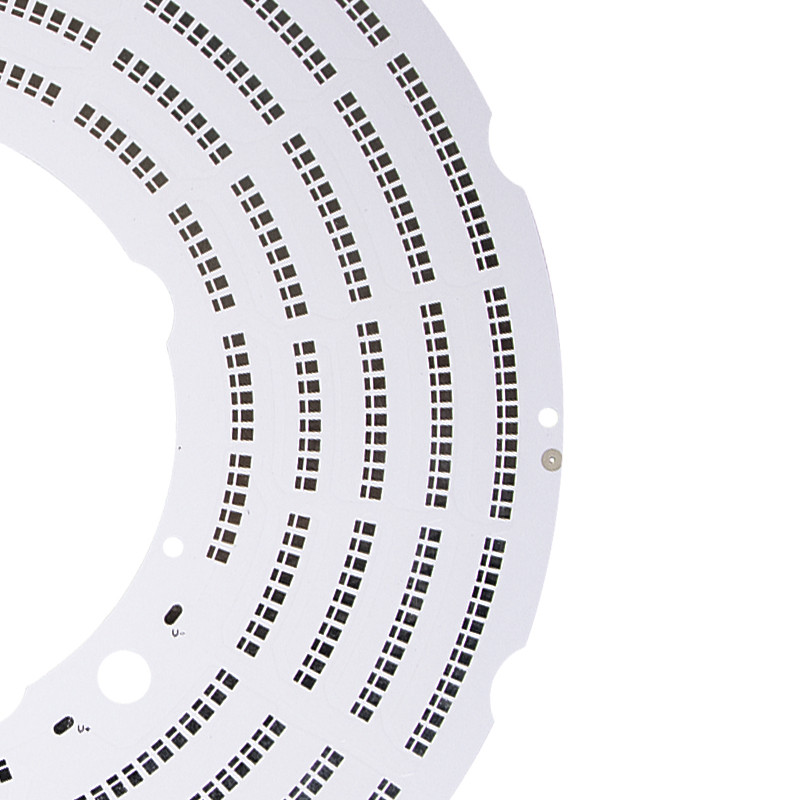

Min Line Width 0.15mm Custom LED PCB Board Assembly For Medical
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Led PCB Board 07
High Light:

0.15mm Custom LED PCB Board

,

Gold fingers Custom LED PCB

,

Line Width 0.15mm Medical PCB Assembly
Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Base Material: Aluminum Base
Min. Line Spacing: 0.15mm
Min. Line Width: 0.15mm
Surface Finishing: HASL, Gold Fingers,Immersion Gold
Delivery: 10-15 Work Days
Application: Led Stage Light,Medical
Product Description

Min Line Width 0.15mm Custom LED PCB Board Assembly For Medical



Led Pcb Board Electronic Element OEM Manufacturing Pcb Board for medical



Layers

1-2 layers

Material

Aluminum, Copper

Production Capacity

7000㎡/months

Board shape

Rectangular, Round, Slots, Cutouts, Complex Irregular

Min Board size

5mm*5mm

Max Board size

1500mm*1500mm

Min Tracing/Spacing

0.1mm

Board thickness

0.3mm-5.0mm

Copper thickness

1oz-10oz

Dimensional tolerance

±0.15mm(Die blank); +-0.10mm(CNC)

V-CUT tolerance

±0.1mm

Hole tolerance

±0.076mm

Aluminum PCBs are printed Circuit Boards that contain a thin layer of conductive dielectric material. They are also known as Aluminum Clad, Aluminum base, MCPCB (Metal Clad Printed Circuit Board), IMS (Insulated Metal Substrate), Thermally Conductive PCBs, etc. Aluminum PCBs were developed in the 1970s, soon after which they’re applications increased dramatically. The first application was their use in Amplification Hybrid Integrated Circuits.

The basic structure of Aluminum PCBs is four layered. It consists of a layer of copper foil, a dielectric layer, an aluminum base layer, and an aluminum base membrane.

Min Line Width 0.15mm Custom LED PCB Board Assembly For Medical 0Min Line Width 0.15mm Custom LED PCB Board Assembly For Medical 1

Application:

PCB is mainly used in automotive electronics, industrial control power supply, IT communication, medical equipment, etc., and is committed to becoming the best quality value-added service solution provider for small and medium batches and allegro production.



FAQ:

Q1: How about your supply capacity?
A: For PCB board, you need to prepare files of Gerber file,it should including RS274X,ODB++, DXF, PCB, PCBDOC etc formats.For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample picture or 3D PDF version file etc.

Q2: How long is the lead time?
A: For samples, it will take 5-7 work days; for bulk orders, it will take 10-15 word days.
Tag:

Beveling Custom LED PCB

Peelable 0.5mm Custom LED PCB

Peelable 0.3mm Custom LED PCB
