OEM 12W LED Lighting Board Aluminum Base One Stop Service

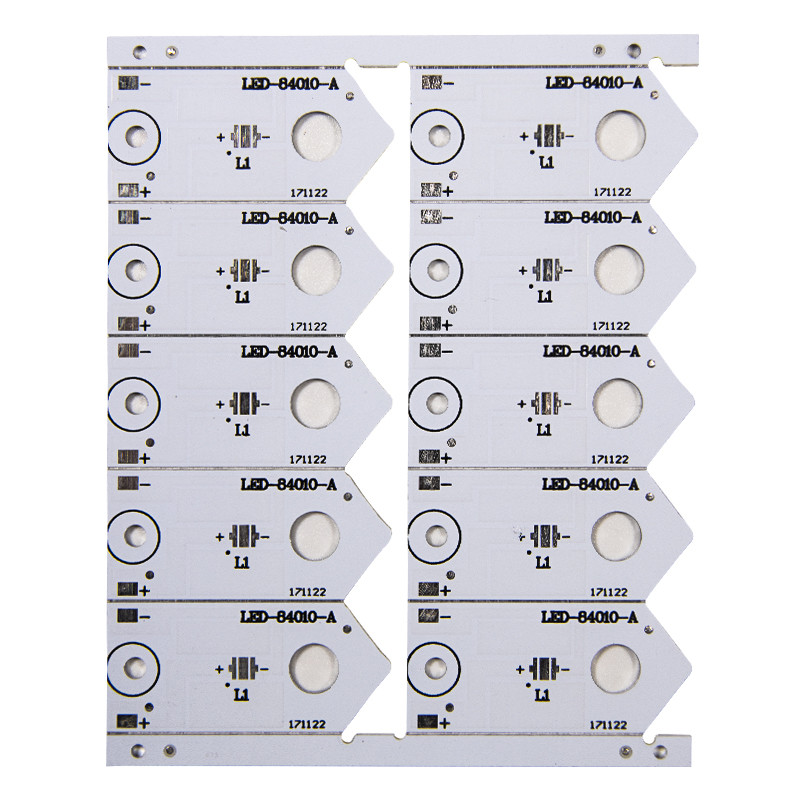

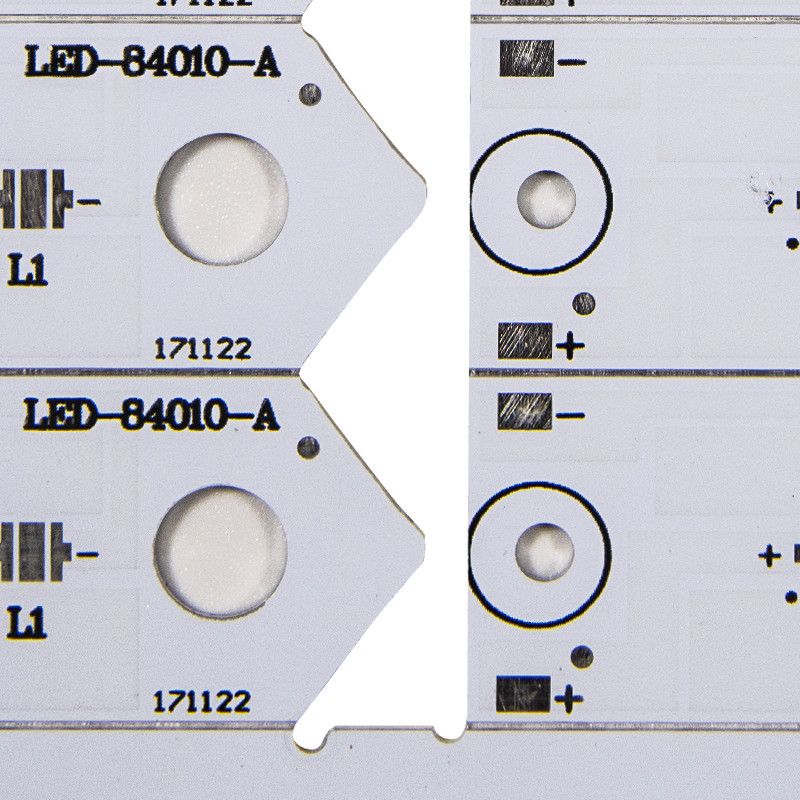

OEM Pcba Manufacturer 12W led pcb board LED Lighting Board
Aluminum PCB is one type of metal core printed circuit board (MCPCB), widely be used in LED lighting industry.
If you are looking for Aluminum PCB Manufacturer, Shenzhen Yizhuo PCB factory has rich experience in manufacturing Aluminium PCB with high thermal conductivity , we offers a first class service and extensive high-tech options.
MCPCB, Metal Core PCB, thermal PCB – whichever name you prefer, they are all boards which use a base metal material as the heat spreader portion of the circuit board.These types of are typically fabricated with a metal base consisting of aluminum (most common) but can also be produced with copper.
Applications of Aluminum PCB:
General lighting applications (Streetlight , Flashlight, Spotlight, etc.)
Back light unit applications
System automotive LED applications
Power converters: telecom, high voltage regulator, power supplies
Hybrid/electric motor control applications
Photovoltaic
|
Layer
|
1~64 Layers
|
|
Material
|
FR4, CEM1, CEM3, Hight TG, Rogers, F4B, Taconic, FR1, FR2, 94V0, Aluminum
|
|
Production Capacity
|
30000 ㎡/months
|
|
Board shape
|
Rectangular, Round, Slots, Cutouts, Complex Irregular
|
|
Board cutting
|
Shear, V-Score, Tab-Routed, Counter Sunk
|
|
Board thickness
|
0.2~8.0mm, Flex 0.1-0.25mm
|
|
Copper weight
|
0.5oZ~12oZ
|
|
Solder Mask
|
Double-sided Green LPI, Red, White, Yellow, Blue, Black, Purple etc.Solder mask
|
|
Silk screen
|
Double-Sided or Single-Sided in White, Yellow, Black etc
|
|
Min line width/space
|
0.08mm/3mil
|
|
Max board dimensions
|
25.6inch*43.3inch or 650mm*1100mm
|
|
Min drill hole diameter
|
0.1mm
|
|
Min Laser Drill hole diameter
|
0.075mm
|
|
Surface finish
|
HASL, ENIG, Immersion Tin, Immersion Silver, OSP,ENEPIG etc
|
|
Board thickness toleranc
|
± 10%
|
|
Min slot width
|
0.12",3.0mm,or 120mils
|
|
V-score depth
|
20-25% of board thickness
|
|
PTH Wall Thickness
|
>0.025mm
|
|
PTH Hole Dia Tolerance
|
±0.076mm
|
|
Non PTH Hole Dia Tolerance
|
±0.05mm
|
|
Hole Position Deviation
|
±0.076mm
|
|
Sink holes
|
Yes
|
|
Quality Standard
|
IPC-A600F/MIL-STD-105D
|
|
Design file format
|
Gerber RS-274X, 274D, Eagle and AutoCAD'S DXF,DWG
|
