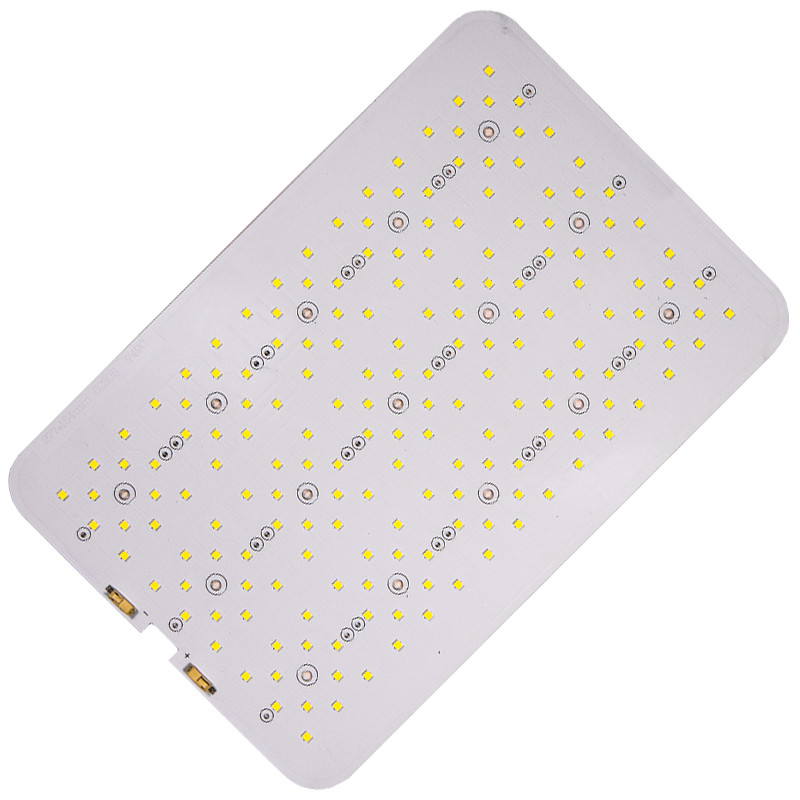

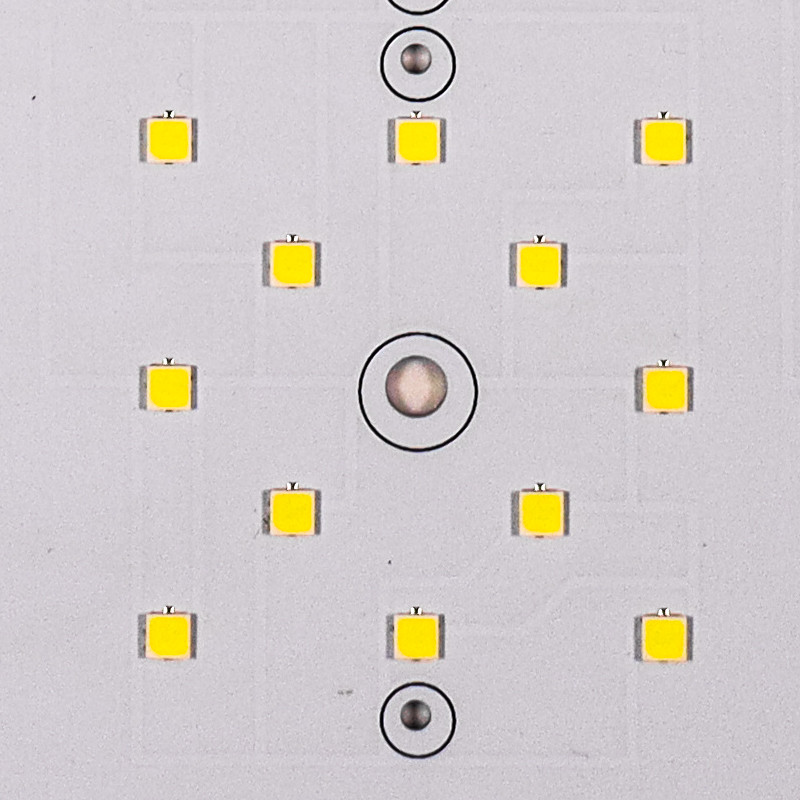

3000k 6500k 94v0 LED Light Circuit Board Assembly Single Sided
Aluminum board single side led pcb assembly OEM 94v0 led light module
Advantages of Aluminum LED PCB:
Less Cost
The cost of Aluminum LED PCB is much lower than other metal-core PCBs. It’s a cost-effective solution for high-volume heat dissipation. Furthermore, there is no need to use heat sinks.
Excellent Heat Dissipation
Aluminum LED PCB is used because of excellent heat dissipation. LEDs give off more heat as compared to other electronic components; therefore, they need excellent heat dissipation. It increases the life of the components and saves them from any damage.
Lower power consumption
The efficiency of high-quality LED lamps is six to seven times that of traditional incandescent lamps. On average, switching your house from incandescent to LED light can reduce your energy consumption by more than 80%.
Durable
Metal-core PCBs are durable. They do not bend due to high temperatures, and they can bear wear and tear. They are rugged, which is the reason they are used in automobiles and streetlights.
|
No. |
Item |
Specification |
|
1 |
PCB Layers |
1 to 24 layers |
|
2 |
PCB Max working panel area |
457 x 610 mm |
|
3 |
Min trace width |
0.10mm |
|
4 |
Min spacing |
0.10mm |
|
5 |
Min hole diameter |
0.20mm |
|
6 |
Min Copper thickness in hole |
0.020mm |
|
7 |
PTH size tolerance |
±0.05mm |
|
8 |
NPTH size tolerance |
±0.025mm |
|
9 |
Hole position tolerance |
±0.05mm |
|
10 |
Dimension tolerance |
±0.1mm |
|
11 |
Min solder mask dam |
0.08mm |
|
12 |
Insulation resistance |
1E+12Ω (normal condition) |
|
13 |
Max Board twist and wrap |
≤0.7% |
|
14 |
High Vlotage endurance |
1.3KV/mm |
|
15 |
Copper foil peel off endurance |
1.4N/mm |
|
16 |
Hardness of resist ink |
≥6H |
|
17 |
Flame resistance |
94V-0 |
|
18 |
Impedance control |
±5% |
FAQ:
Q1. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q2: Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: What file formats do you accept for PCB PCBA production?
A: Gerber file, PCB file, BOM
