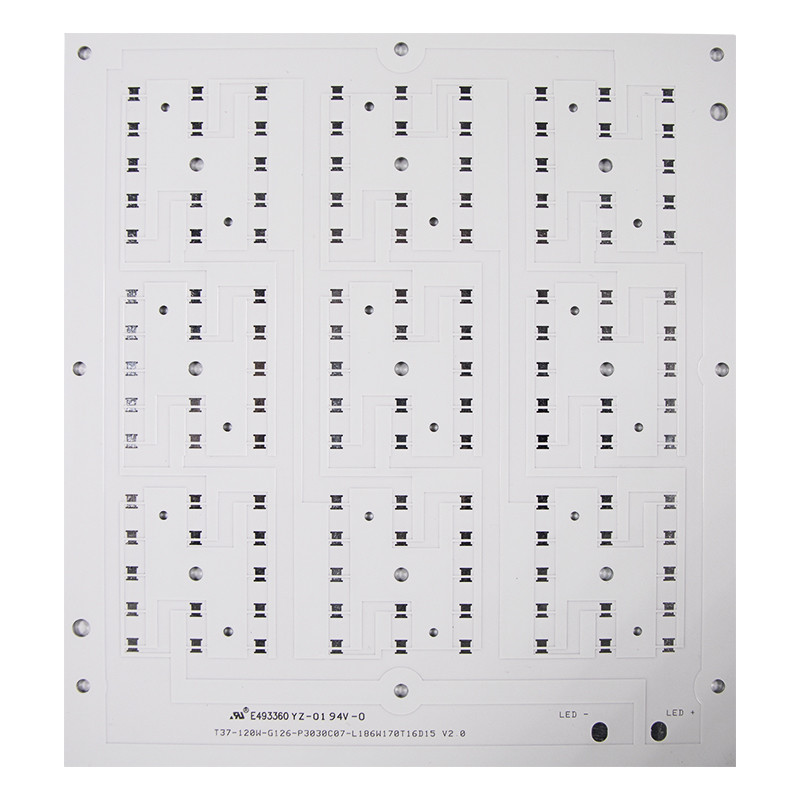

LED Light SMD RGB Heavy Copper PCB Board Single Sided Aluminum Base
copper clad PCB board copper thickness With LED Light SMD RGB LED PCB Board
The single-sided aluminum-based PCB consists of 3 layers: the circuit layer (copper foil), the insulating layer and the metal base layer.
The circuit layer plays a conductive role, the insulating layer transfers the heat generated by the LED to the aluminum substrate, and the metal base layer transfers the exported heat to the circuit layer, forming a cyclic process. The main products are single-sided aluminum substrate, double-sided aluminum substrate, high-power aluminum substrate, LED chip metal plate, etc. Products are widely used in lighting (such as street lamp PCB, lawn lamp PCB, fluorescent lamp PCB, stage lamp PCB, etc.), electronics, machinery, communications, automobiles etc.
|
LAYER |
PROTOTYPE |
MASS PRODUCTION (above 20 m2) |
|
|
Quick Turn |
Standard Time |
||
|
MC PCB |
48 hours |
4-5 days |
10-12 days |
|
PFC 1 L |
48 hours |
5-6 days |
12-13 days |
|
1L |
24 hours |
3-4 days |
8-10 days |
|
2L |
24 hours |
3-4 days |
8-10 days |
|
4L |
48 hours |
5-6 days |
8-10 days |
|
6L |
72 hours |
6-7 days |
10-12 days |
|
8L |
72 hours |
7-8 days |
12-14 days |
|
10L |
96 hours |
9-10days |
16-18 days |
FAQ:
Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3: What service do you have?
A: We can offer one-stop service from PCB manufacturing to PCB assembling, testing,housing and other value-added service.
