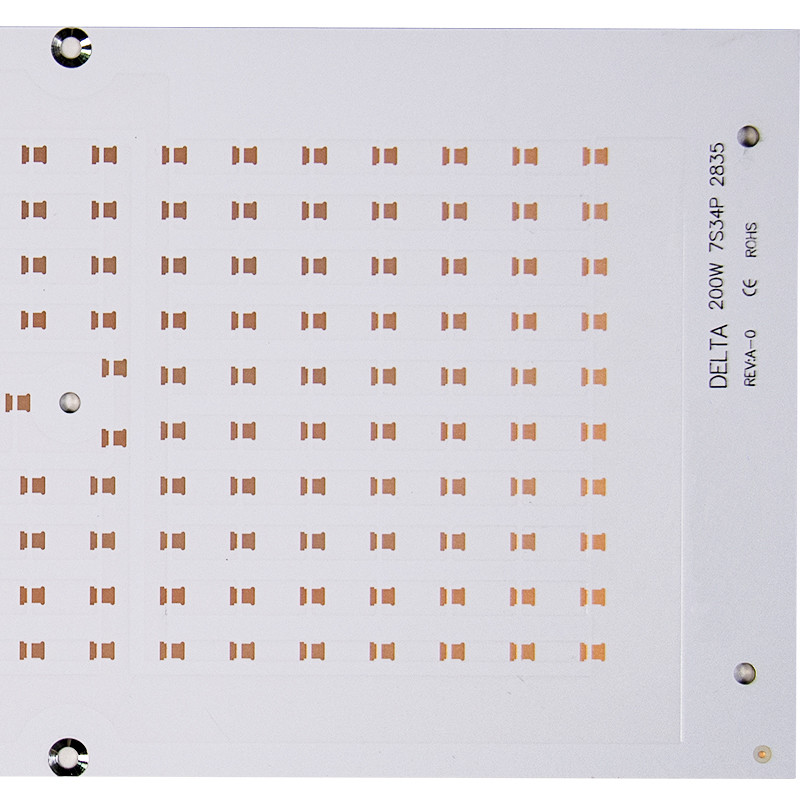

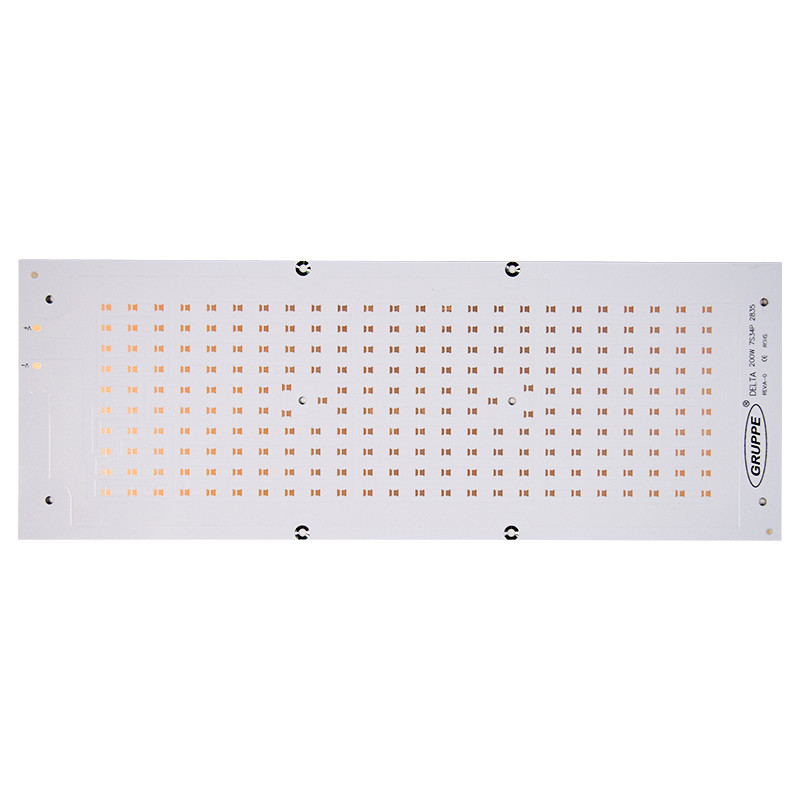

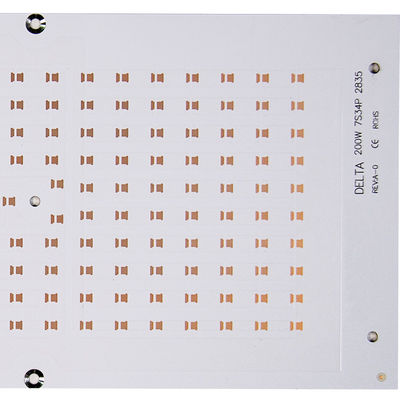

ROHS 94v0 Double Sided Copper Clad Board 12V LED Rock Light
Heavy Copper pcb board rohs 94v0 12V led pcb board rock light
Heavy copper PCB is divided into a single-layer thick copper plate, double-sided thick copper plate and multilayer thick copper plate. The minimum hole (distance or line from one edge of something, through its center, to the other edge) of mechanical drilling during production is from 0.4mm down to 0.2mm or even smaller, so the metal hole (distance or line from one edge of something, through its center, to the other edge) is getting smaller and smaller. Metallization on which board layers and interlayer interconnects depend The hole directly affects the reliability of the heavy copper PCB. (steps are taken to prevent trouble or injury) for the manufacturing process of heavy copper PCB.
|
Item |
Capability |
|
Product types |
1-2 layer aluminum, copper base pcb boards |
|
Product types |
aluminum, copper |
|
Maximum finished board size |
250*5000mm |
|
Board thickness |
0.4mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 4.0mm, 6.0mm |
|
Min. trace width & spacing |
0.045/0.045MM |
|
Tolerance for finished product |
±0.03mm |
|
Copper thickness |
12UM, 18UM, 36UM, 70UM |
|
PTH Hole Dia.Tolerance(plated-through-hole) |
±0.05mm |
|
Acceptance criteria |
Factory production standard, GB；IPC-650, IPC-6012, IPC-6013 II, IPC-6013 III, etc |
FAQ:
Q1. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3: Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
