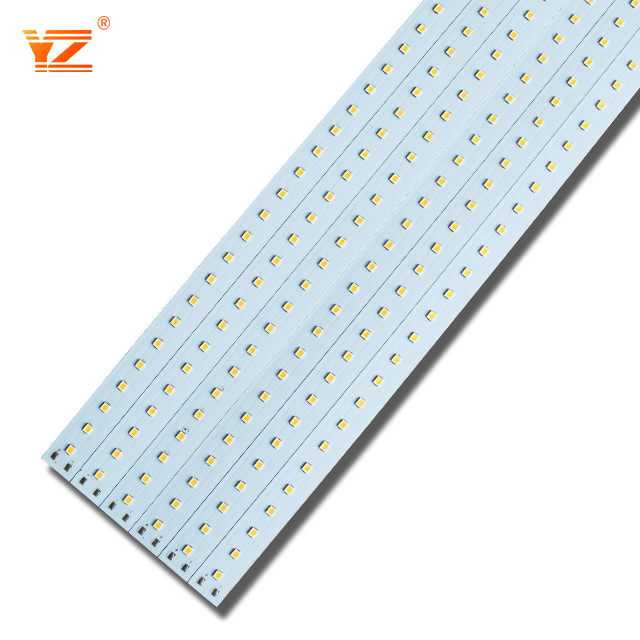

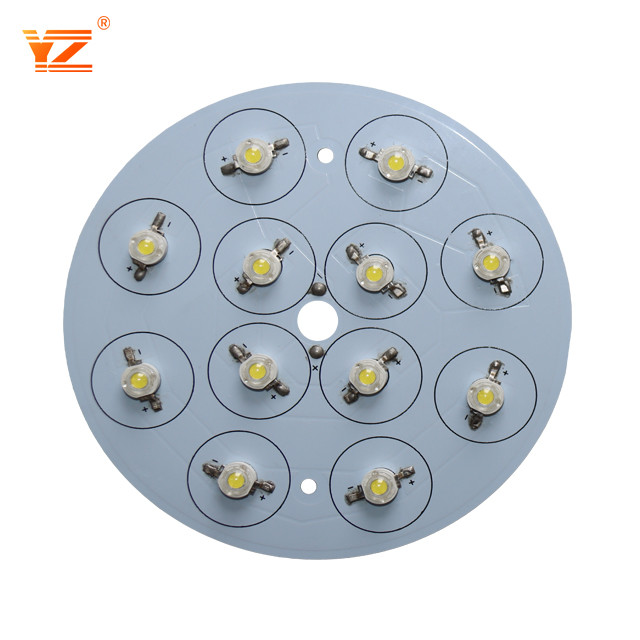

Aluminum Board SMD 2835 94V0 Assembled PCB For LED Bulb Light
Assembled Led Pcb 2835 Mcpcb 94-v0 Aluminum Board For Bulb Light
Classification of Aluminum PCB
Aluminum PCBs are essentially divided into three categories.
Universal Aluminum PCB: the dielectric layer used here is made up of epoxy glass fiber pre-preg.
High Thermal-Conductive Aluminum PCB: the dielectric layer is made up of epoxy resin. The resin used must have high thermal conductivity.
High-frequency Aluminum PCB: the dielectric layer is composed of polyolefin or polyimide resin glass fiber pre-preg.
|
PCB Capactity |
|
|
Base Material |
FR-4, CEM-3, aluminum |
|
Layers |
1-22 layers |
|
Max Panel |
1550mm*800mm |
|
Copper Thickness |
0.5oz, 1oz, 2oz, 3oz,4oz |
|
Dielectric Thickness |
0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm |
|
Board Core Thickness |
0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,1.5mm, 2.0mm, 3.0mm and 3.2mm |
|
Board Thickness |
0.4mm - 4.0mm |
|
Thickness Tolerance |
+/-10% |
|
Aluminum Machining |
Drilling, Tapping, Milling, Routing, Die-Punching, Break-off tab available |
|
Min Hole |
0.2 mm |
|
Max Working Voltage |
2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) |
|
Min Track Width |
0.2mm (8mil) |
|
Min Track Gap |
0.2mm (8mil) |
|
Min SMD Pad Pitch |
0.2mm (8mil) |
|
Surface Finishing |
HASL lead free, Immersion Gold, Immersion Silver |
|
Solder Mask Color |
Green, Blue etc |
|
Legend Color |
Black, White etc |
|
E-test |
Yes |
|
Certificate |
UL / ROHS / ISO9001 |
Applications:
1. Indoor out door decoration.
2. Architectural and boutique atmosphere lighting.
3. Street lamp,Spotlight.
4. Emergency & security, advertisement sign lighting.
5. Holiday Decoration.
FAQ:
Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3: What service do you have?
A: We can offer one-stop service from PCB manufacturing to PCB assembling, testing,housing and other value-added service.
