Board Thickness 0.8mm 2.0mm Heavy Copper PCB Customized Multilayers
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
High Light:

2.0mm Heavy Copper PCB

,

0.8mm Heavy Copper PCB

,

1.2mm Copper Clad Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Layer: Single-side, Double Side,Multilayer
Copper Thickness: 1/2OZ
Board Thickness: 0.8, 1.0, 1.2, 1.5, 1.6, 2.0mm
Profiling Punching: Routing, V-CUT, Beveling
Service: One-stop Service
Material: Heavy Copper
Surface: OSP
Product Description

Board Thickness 0.8mm 2.0mm Heavy Copper PCB Customized Multilayers



Customized Multilayer PCB In Electronics Industry LED PCB Power Supply PCB Board



We will, as always, keep improving, keep making progress, and constantly improve the quality of FR4 Material LED Light PCB Board, circuit for washing machine, wireless circuit electronic. Welcome to visit our website and do not hesitate to communicate with us. We promise that we'll be responsible all the way to the end once our services begin. For a long time, we have been adhering to the concept of 'integrity, 'pragmatism' and 'team', constantly improving service efficiency and product quality, and have achieved long-term progress and development. With continuous innovation and excellent service, we always think about the needs of our customers and build ourselves into a respected company in the industry.



LED PCB Board Assembly

Layer

Single-side, Double Side,Multilayer

Board thickness

0.8, 1.0, 1.2, 1.5, 1.6, 2.0

Technical Specification



Minimum line width/gap:3.5/4mll(laserdrill)
Minimum hole size:0.2mm(mechanical drill)/4mil(laser drill)
Minimum Annular Ring: 4mil
Max Copper thickness: 60Z
Board Thickness:D/S: 0.2-4.0mm.

Multilayers:0.40-4.0mm,

Min Solder Mask Bridge:0.08mm

Aspect ratio: 8: 1
Plugging Vias capability: 0.2-0.8mm



Surface Treatment

OSP







LAYER

PROTOTYPE

MASS PRODUCTION (above 20 m2)

Quick Turn

Standard Time

MC PCB

48 hours

4-5 days

10-12 days

PFC 1 L

48 hours

5-6 days

12-13 days

1L

24 hours

3-4 days

8-10 days

2L

24 hours

3-4 days

8-10 days

4L

48 hours

5-6 days

8-10 days

6L

72 hours

6-7 days

10-12 days

8L

72 hours

7-8 days

12-14 days

10L

96 hours

9-10days

16-18 days

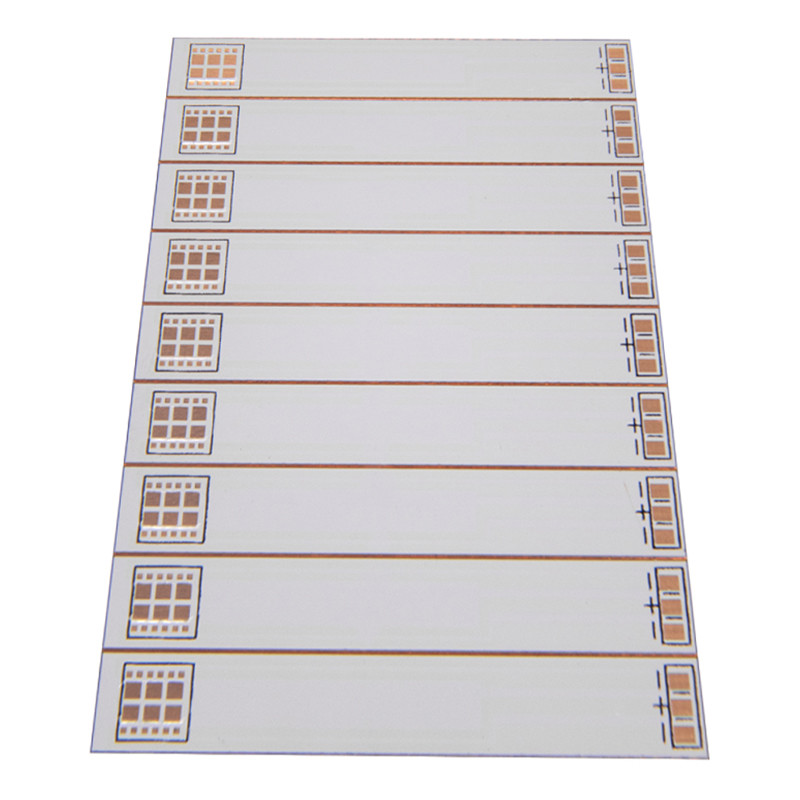

Board Thickness 0.8mm 2.0mm Heavy Copper PCB Customized Multilayers 0

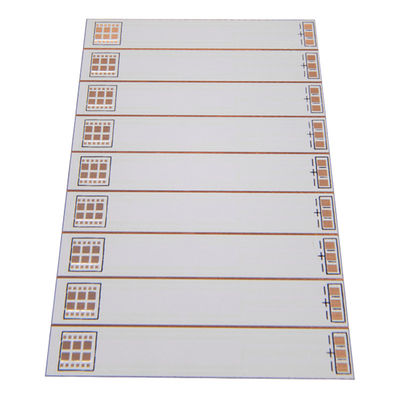

Board Thickness 0.8mm 2.0mm Heavy Copper PCB Customized Multilayers 1
