8 OZ Heavy Copper PCB
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: Heavy Copper PCB
High Light:

8 OZ Heavy Copper PCB


12UM Heavy Copper PCB


8OZ Copper Printed Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Product Name: Copper Printed Circuit Board
Testing: Fixturer Testing Jig/flying Testing
Keywords: LED Tube PCB Board
PCBA Service: SMD SMT DIP Component Assembly
Silkscreen: White, Yellow, Black
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing,
Product Description

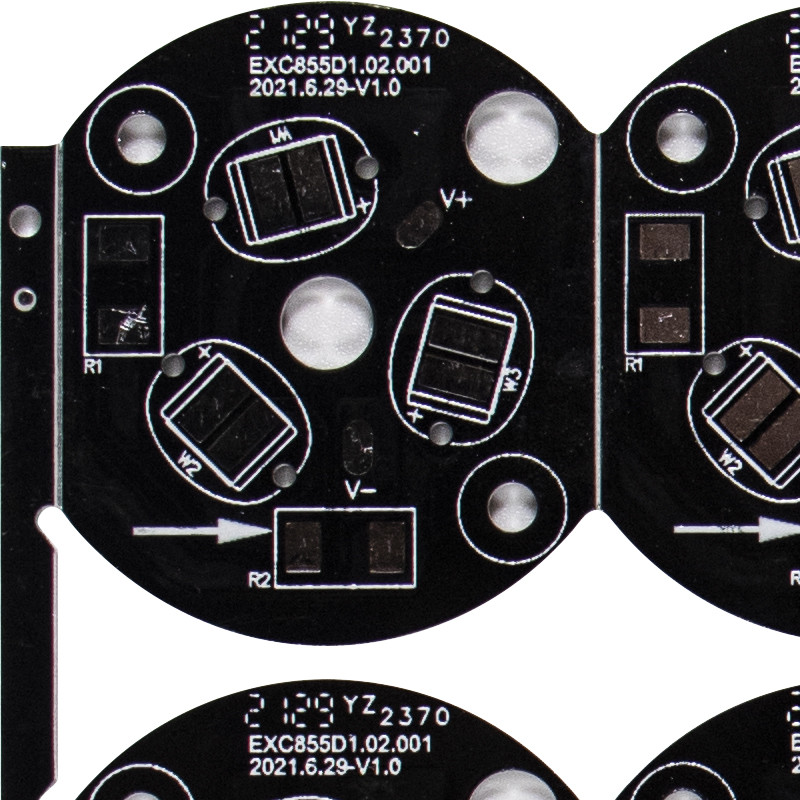

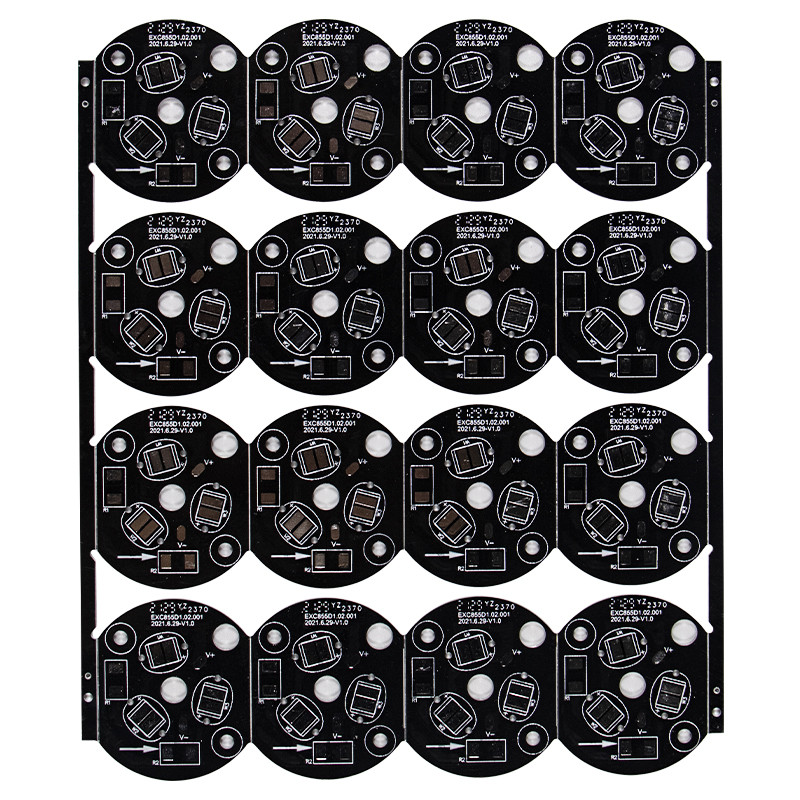

8 OZ Heavy Copper PCB


8OZ Heavy Copper PCB On Aluminum Base Single board For Industrial Control


The thick copper printed circuit board is a printed circuit board made of thick copper foil and extra thick copper foil. It uses conductive materials (copper foil) and substrate materials, production processes, and application fields that are different from conventional PCBs, so it is a special type of PCB. Most of the thick copper printed circuit boards are high current substrates. The main application areas of high current substrates are – power modules (power modules) and automotive electronic components. Its main terminal electronics field is similar to conventional PCB (such as portable electronic products, network products, base station equipment, etc.), and some are different from conventional PCB fields, such as automotive, industrial control, power modules.


Product types
1-2 layer aluminum, copper base pcb boards
Product types
aluminum, copper
Maximum finished board size
Board thickness
0.4mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 4.0mm, 6.0mm
Min. trace width & spacing
Tolerance for finished product
Copper thickness
12UM, 18UM, 36UM, 70UM
PTH Hole Dia.Tolerance(plated-through-hole)
Acceptance criteria
Factory production standard, GB;IPC-650, IPC-6012, IPC-6013 II, IPC-6013 III, etc


8 OZ Heavy Copper PCB 0

The copper PCB is the most expensive types in metal core printed circuit board. The thermal conductivity is much better than aluminum PCB, this is usually used in high-frequency circuit design.

Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3:  Is it OK to print my logo on product?
A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
