OSP Heavy Copper PCB

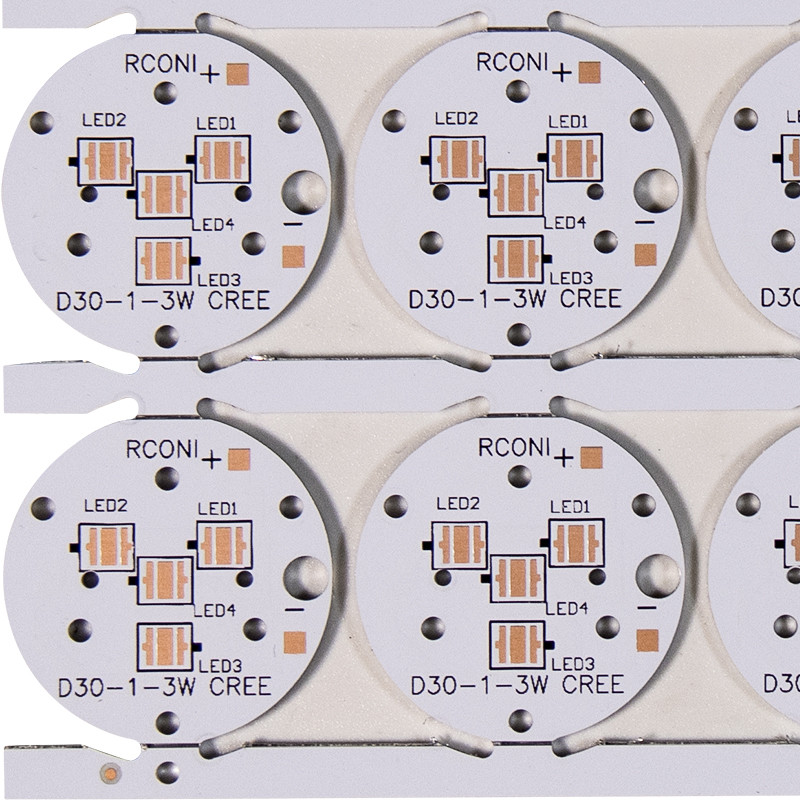

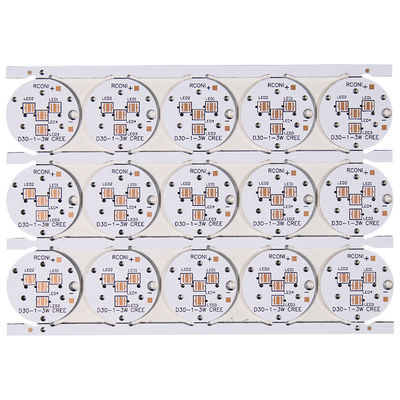

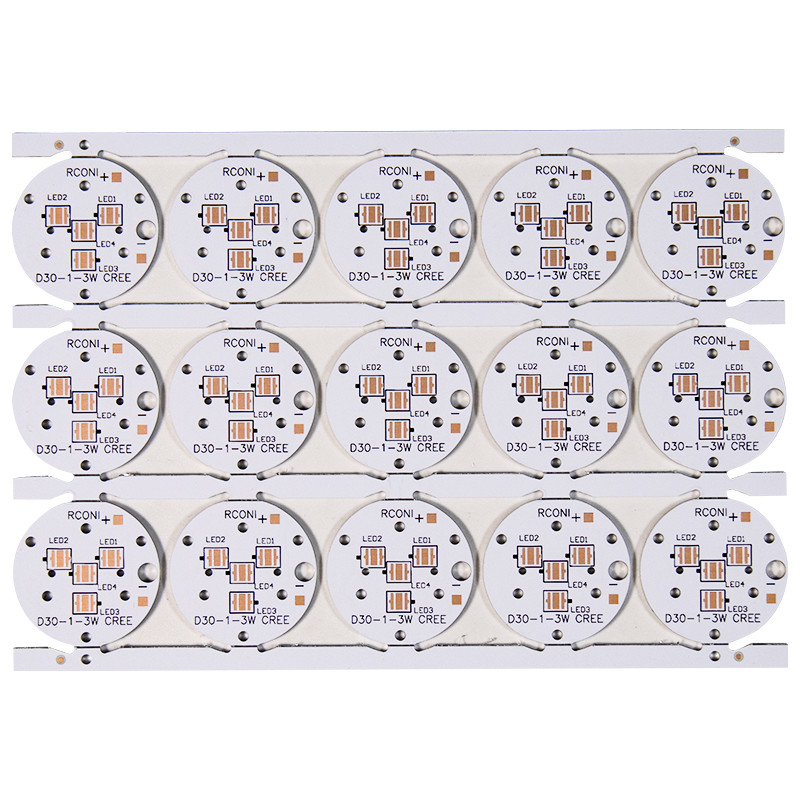

Led lighting aluminum osp pcb board smd led module led bulb pcb mcpcb
LED PCBs is the core of the LED lighting. A chip creates an electrical connection between LED and printed circuit board, and there has a thermal heat sink to dissipate heat. Because of the well-performance in dissipate heat, the metal core PCBs, especially aluminum PCBs are popular for LED PCB manufacturers. Usually, the aluminum LED PCB has a thin layer of thermally conductive dielectric material that is more efficient at dissipating heat than traditional PCBs.
Advantages of LED PCBs:
Well performance for heat dissipating
Lightweight
Efficient low power consumption
Dust and moisture resistant
|
Base Material |
Aluminum |
|
Board thickness |
2.0mm |
|
Copper Thickness |
1oz |
|
Min. Hole Size |
0.10mm |
|
Min. Line Width |
0.10mm |
|
Min. Line Spacing |
0.1mm4mil |
|
Surface Finishing |
HASL |
|
Emitting color |
warm/natural/pure/cool white |
|
Feature |
High Lllumination, non-pollution, high light efficiency, economical |
We offer all kinds of LED PCB Product. For High-Power LED of the Aluminum Base PCB, copper base PCB, ceramic base PCB, for low-power LED of the FR4 PCB, High-Temperature PCB. As the Aluminum Base PCB of good thermal performance, High-Power LED products most commonly used Aluminum Base PCB.
FAQ:
Q1. What is needed for PCB PCBA quotation?
A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
Q2: Are all your products certified with UL, ROHS etc?
A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.
Q3: Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
