Custom Aluminum Base 1.6mm DOB MCPCB Board For LED Panel Light
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: led panel light pcb
High Light:

1.6mm MCPCB Board

,

Aluminum Base MCPCB Board

,

LED Panel Light DOB MCPCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Base Material: Aluminum
Layer: 1-2 Layers
Max Board Size: 600 X 1200mm
Service: PCBA Assembling
Silkscreen: White, Yellow, Black
Certification: UL,CE,ROHS
Product Description

Custom aluminum base PCBA 1.6mm dob 1.0W/m.k mcpcb for led panel light





Aluminum PCB Structure:

When it comes to aluminum PCB structure, it authentically indicates the structure of aluminum copper clad laminate (CCL) consisting of copper foil, dielectric layer, aluminum base and aluminum base membrane (selective). The structure of aluminum CCL is indicated as below.

1. Copper Foil Layer

2. Dielectric Layer

3. Aluminum Base Layer

4. Aluminum Base Membrane

Layer

1-2 layers

Board thickness

0.2mm-6.0mm

Copper thickness

0.5oz-6.0 oz

Max board size

600 x 1200mm

Min. hole diameter

0.1mm

Min. line width

0.075mm

file format

pcb,doc,ddb etc

MOQ

1 piece

Base material

FR-4,TG, CEM-1, CEM-3, Aluminium,94V0, 94HB

Solder mask

green, red, blue, yellow, black, white etc

Surface finish

ENIG, ImAg, ImSn, OSP, HASL, lead free,immersion gold,Gold-plate etc

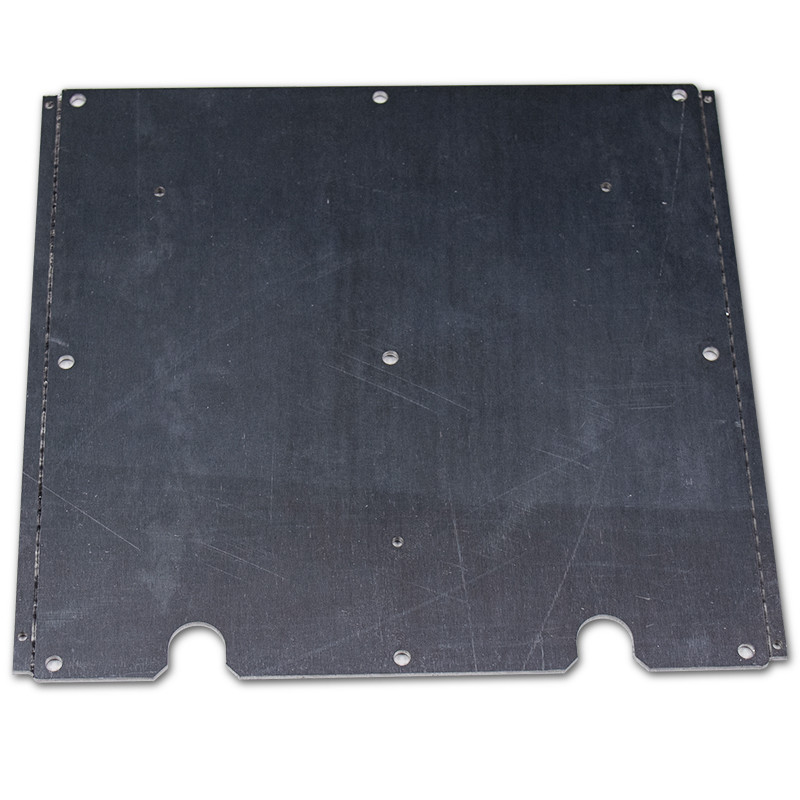

Custom Aluminum Base 1.6mm DOB MCPCB Board For LED Panel Light 0

Application areas of aluminum PCBs:

1. General lighting applications (Streetlight , Flashlight, Spotlight, etc.)

2. Back light unit applications

3. System automotive LED applications

4. Power converters: telecom, high voltage regulator, power supplies

5. Hybrid/electric motor control applications

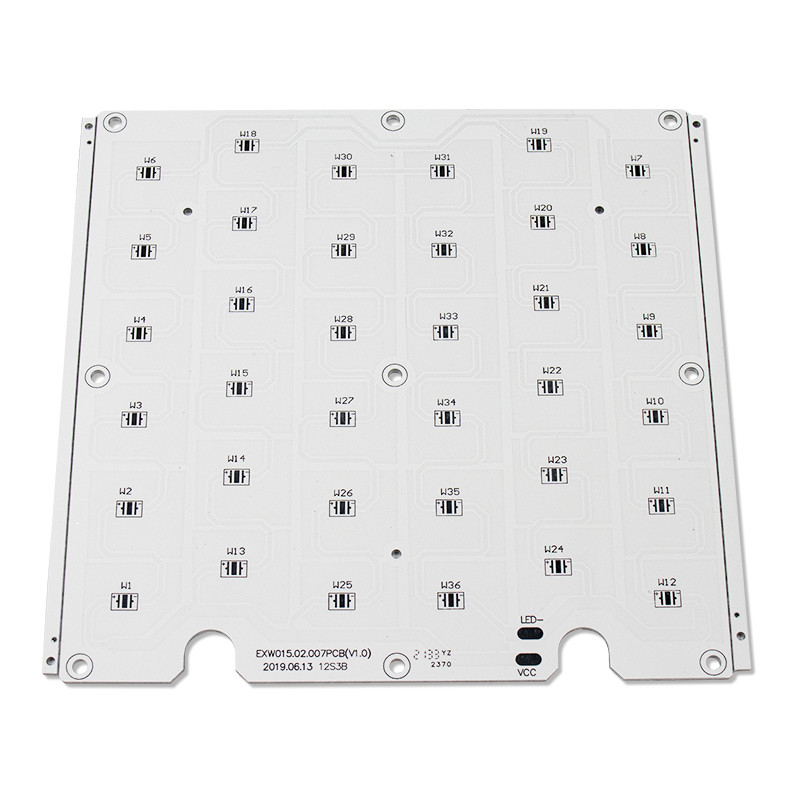

Custom Aluminum Base 1.6mm DOB MCPCB Board For LED Panel Light 1

FAQ:



Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.



Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.



Q3: Do you have MOQ limited?

A: We don’t have any MOQ limited, the minimum order we accept is 1pcs.
