HASL Lead Free 2700 - 6500K LED Printed Circuit Board
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: PCBA09
High Light:

6500K LED Printed Circuit Board


2700K LED Printed Circuit Board


HASL Lead Free PCBA Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Base Material: Aluminum
Board Thickness: 0.6mm 0.8mm 1mm 1.6mm 2mm
Application: Led Light Pcb Board Design
Certificate: ISO9001:2008,ROHS,UL
Max. PCB Size : 600mm×500mm
Surface Finishing: HASL Lead Free
Solder Mask Color: Green,Blue,White Black Yellow
Product Description

LED Printed Circuit Board Manufacturer Aluminum PCBA One Stop Service


Introduction of Aluminum PCB:

Aluminum PCB is the PCB type that used the low alloyed Al-Mg-Si with high plasticity alloy plate as the substrate material that has better thermal conductivity, electrical insulation, and machining performance, compared with the traditional FR4 PCB.


Similar to other types of PCBs, Aluminum PCB is structured by the conductive layer (copper layer); insulation layer (dielectric layer); and the substrate layer.


Aluminum PCB is capable to stand higher current with the same thickness and line width. Aluminum PCB is able to withstand voltage up to 4500V and thermal conductivity is more than 2.0. At present, aluminum PCB is the most common type for LED lighting PCB applications.

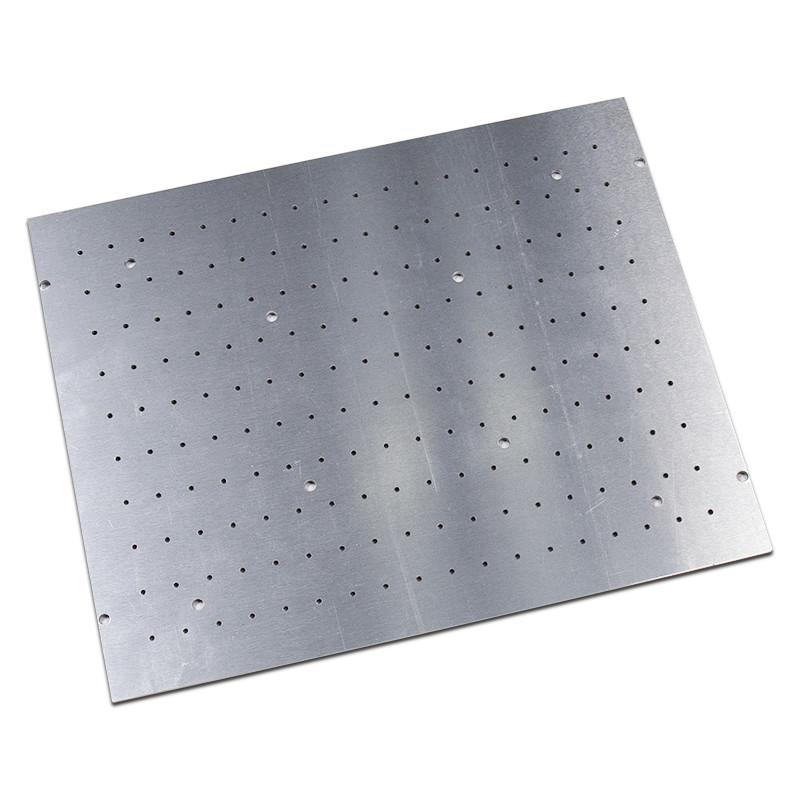

Common LED PCB has two sides. The top side with white solder mask is used for soldering SMD LED beads, and the other side normally has no solder mask and showing as aluminum metal color. If there is a demand for high-power heat dissipation, the aluminum base can also be coated with a thermal conductive silicone grease layer to connect with the installed heatsinks for better heat dissipation.


Item PCB+SMD LED chips
Material Aluminum Base
Voltage 160-280V
Wattage 18W 30W 36W
LED Chip Model No. 2835/5730/5050/3030....
LED Quantity can be customized
Diameter 90mm
Temperature 2700-6500k
Warranty 2 years

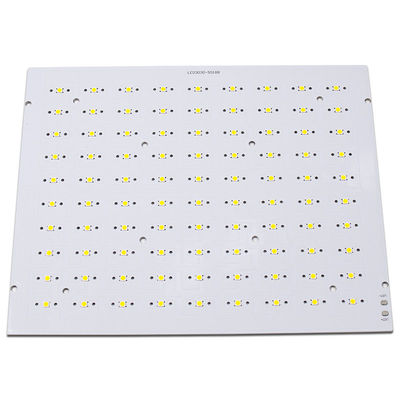

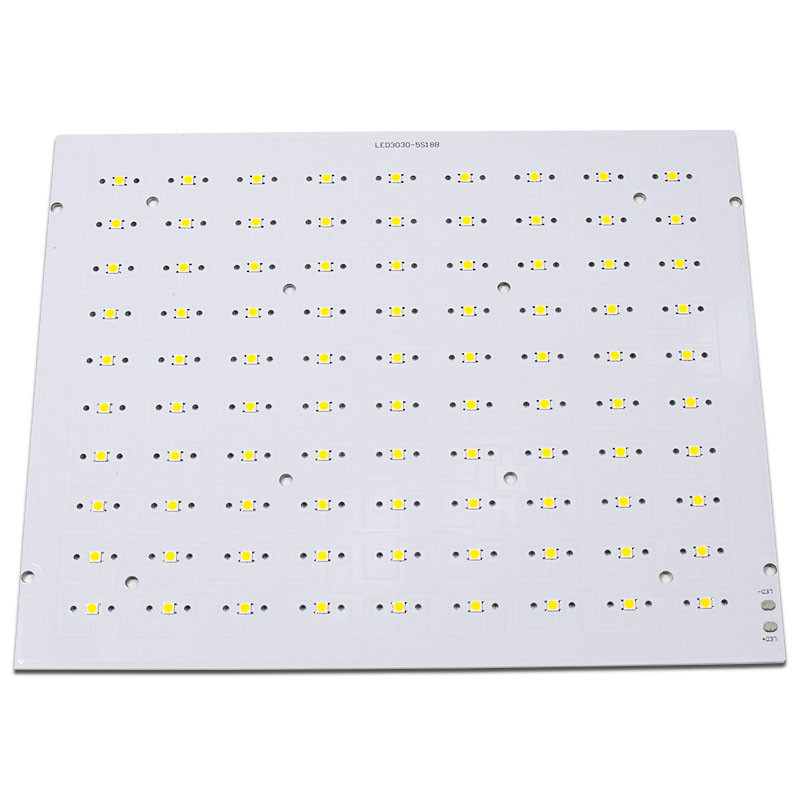

HASL Lead Free 2700 - 6500K LED Printed Circuit Board 0

HASL Lead Free 2700 - 6500K LED Printed Circuit Board 1



Shenzhen Yizhuo offers custom PCB prototype assembly service to go along with our high-quality fabrication and component procurement services. This includes fast, affordable prototype assembly where we take your unique PCB designs, prepare them for the assembly process and perform comprehensive testing to ensure they meet your precise performance requirements. We can provide a complete turnkey PCB prototype assembly featuring a one-stop approach that saves you time, money and hassles.


HASL Lead Free 2700 - 6500K LED Printed Circuit Board 2


HASL Lead Free 2700 - 6500K LED Printed Circuit Board 3

HASL Lead Free 2700 - 6500K LED Printed Circuit Board 4





Q1. What is needed for PCB PCBA quotation?
A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)

    PCBA: PCB information, BOM, (Testing documents...)


Q2. What service do you have?
A: We can offer one-stop service from PCB manufacturing to PCB assembling, testing,Soldering wire ,Coating and other value-added service.


Q3: Is it OK to print my logo on product?

A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
