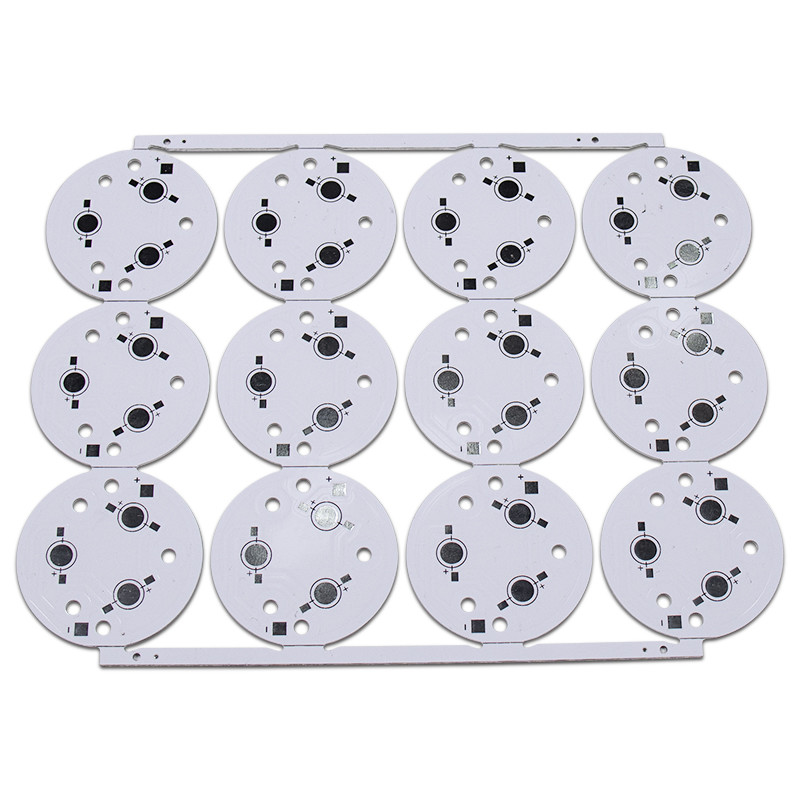

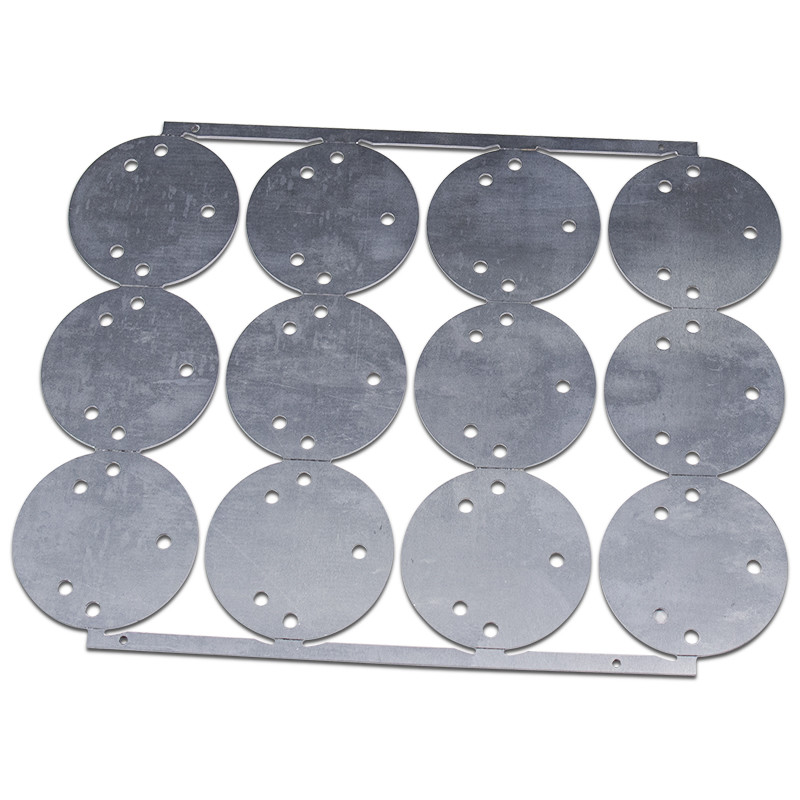

Aluminum Led Pcb Custom 1.0mm 1.6mm thickness Led circuit board
LED stands for Light Emitting Diode. It’s a semiconductor that emits light when current flows through it. It provides light, which is the reason it is famous and widely used.
Now, LEDs have replaced the old and traditional lighting methods that consume more electricity and are expensive. LED is a better way because it’s more reliable, long-lasting, and efficient. But when we need more lightning to illuminate a particular area, a combination of LEDs is used. In simple words, an LED is not enough to illuminate a large extent, so multiple LEDs are used according to the requirement. Most of the time, the SMD LEDs are used because they are compact and can provide excellent brightness or lumens. There is a special SMD LED PCB board, which is widely used. These LEDs are placed on a PCB; hence, the board is named as LED PCB.
LEDs have a long life, so that they can last for a long time. For instance, an SMD LED can last up to 100,000 hours on average, and even more. Therefore, they are preferred over other methods.
|
PCBA Capabilities
|
|
|
Turnkey PCBA
|
PCB+components sourcing+assembly+package
|
|
Assembly details
|
SMT and Thru-hole, ISO SMT and DIP lines
|
|
Lead Time
|
Prototype: 15 work days. Mass order: 20~25 work days
|
|
Testing on products
|
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
|
|
Quantity
|
Min quantity: 1pcs. Prototype, small order, mass order, all OK
|
|
Files needed
|
PCB: Gerber files(CAM, PCB, PCBDOC)
|
|
Components: Bill of Materials(BOM list)
|
|
|
Assembly: Pick-N-Place file
|
|
|
PCB Panel Size
|
Min size: 0.25*0.25 inches(6*6mm)
|
|
Max size: 20*20 inches(500*500mm)
|
|
|
PCB Solder Type
|
Water Soluble Solder Paste, RoHS lead free
|
|
Components details
|
Passive Down to 0201 size
|
|
BGA and VFBGA
|
|
|
Leadless Chip Carriers/CSP
|
|
|
Double-sided SMT Assembly
|
|
|
Fine Pitch to 0.8mils
|
|
|
BGA Repair and Reball
|
|
|
Part Removal and Replacement
|
|
|
Component package
|
Cut Tape,Tube,Reels,Loose Parts
|
|
PCB assembly process
|
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
Aluminum LED PCB Circuit Board of Application:
1. Traffic lights
2. Medical lamp
3. Indoor lamp
4. Tunnel lamp
5. Street lamp
6. Flashlight
Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified by ISO9001: 2015 international quality management system. It was founded in 2012 and has been committed to the innovation and sustainable development of electronic technology. It is used in the manufacture and sales of various metal PCBs, LEDs and related products. The products are widely used in lighting, electronics, machinery, communications, automotive and other industries that require heat dissipation. With a senior management team and R & D design team with an average industry experience of more than 8 years, we have created a strong worldwide distribution network and sales channels, and our products sell well in Asia-Pacific, Europe, America, and the Middle East.
FAQ:
Q1. Do you have MOQ limited?
A: We don’t have any MOQ limited, the minimum order we accept is 1pcs.
Q2: Are all your products certified with UL, ROHS etc?
A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.
Q3: How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
