RoHS Certified SMD LED Prototype PCBA For Spotlight
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Led Pcb Assembly
High Light:

RoHS Prototype PCBA

,

SMD LED Spotlight Prototype PCBA

,

SMD LED PCB Assembly

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Product Name: Led Pcb Assembly
Profiling Punching: Routing, V-CUT, Beveling
Silk Screen: White,black,yellow
Electrical Testing: Fixture / Flying Probe
PCB Panel Size: Can Be Customized
Service: One-stop Service
Product Description

Led Pcb Assembly Rohs Pcb Circuit Board OEM ODM Prototype PCBA



What is an SMD LED PCB Board?

SMD stands for Surface Mount Device. The surface mount technology (SMT) has almost replaced the through-hole technology. However, through-hole technology is still used for the components that cannot be surface mounted. Therefore, Surface Mount LED PCB is very popular

SMDs are compact components that can be directly placed over the PCB.



There is no need for a hole because the components do not have leads or might have small leads. There are only small contacts at the ends of the device that are used to make connections. Consequently, the PCBA is very compact. SMDs are soldered using reflow soldering. At first, the solder paste is applied on the bare board. Then, the components are picked and placed in the desired place. Finally, the board is passed through a reflow oven, and the components are directly mounted without any hassle.



An SMD LED PCB board contains SMD LEDs that are more compact than their through-hole equivalents. SMD LEDs are widely used nowadays. They provide higher lumen output, which improves the level of illuminance in the area. They are more efficient and brighter. This is the reason SMD LED PCB boards are preferred.



PCBA Capabilities
Turnkey PCBA
PCB+components sourcing+assembly+package
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Lead Time
Prototype: 15 work days. Mass order: 20~25 work days
Testing on products
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Quantity
Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel Size
Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type
Water Soluble Solder Paste, RoHS lead free
Components details
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape,Tube,Reels,Loose Parts
PCB assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing



How to Make a LED Circuit Board?

Both LED aluminum PCB and FR-4 fiberglass circuit boards belong to PCB. To say differently, only compare LED aluminum substrate with FR-4 fiberglass circuit board.

The LED aluminum substrate is printed on the surface of aluminum material with better thermal conductivity, and then weld electronic components on it.

In electronics, an LED circuit or LED driver is an electrical circuit used to power a light-emitting diode (LED). The circuit must provide sufficient current to light the LED at the required brightness, but must limit the current to prevent damaging the LED.

The voltage drop across an LED is approximately constant over a wide range of operating current; therefore, a small increase in applied voltage dramatically increases the flow.

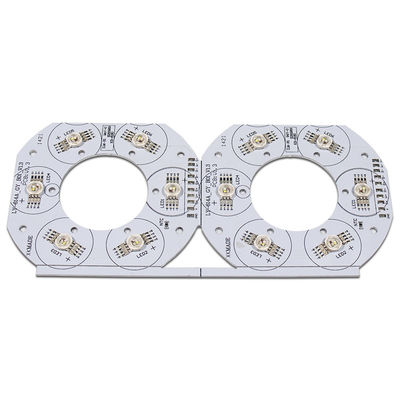

RoHS Certified SMD LED Prototype PCBA For Spotlight 0

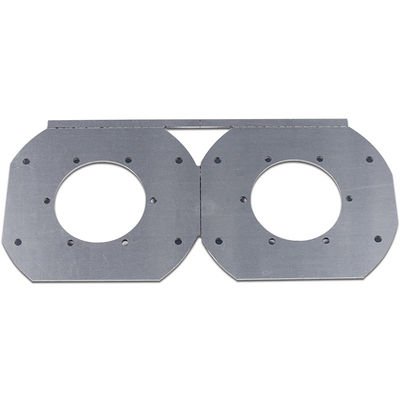

RoHS Certified SMD LED Prototype PCBA For Spotlight 1
