OEM 3 Layers Prototype SMT PCB Assembly For LED Light
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: PCB Assembling1
High Light:

Prototype SMT PCB Assembly

,

OEM SMT PCB Assembly

,

LED Light Prototype PCBA

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Product Name: PCB Assembling
Profiling Punching: Routing, V-CUT, Beveling
Silk Screen: White,black,yellow
Electrical Testing: Fixture / Flying Probe
Hole Tolerance: PTH: ±0.075, NTPH: ±0.05
Service: One-stop Service
Product Description

PCB Assembling SMT OEM LED Light PCB Board Prototype PCBA

YiZhuo PCB makes Aluminum PCBs, the most popular among metal core boards. Our aluminum substrate PCBs use aluminum core as the base material, and standard FR4 over it. The aluminum base acts as a thermal clad layer for dissipating heat efficiently, keeping heat producing components cool, thereby increasing the overall performance of the board and the device. Among all the aluminum-based PCB manufacturers, our customers consider our aluminum PCBs as the most useful solution to high power applications.


PCBA Capabilities
Turnkey PCBA
PCB+components sourcing+assembly+package
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Lead Time
Prototype: 15 work days. Mass order: 20~25 work days
Testing on products
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Quantity
Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel Size
Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type
Water Soluble Solder Paste, RoHS lead free
Components details
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape,Tube,Reels,Loose Parts
PCB assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

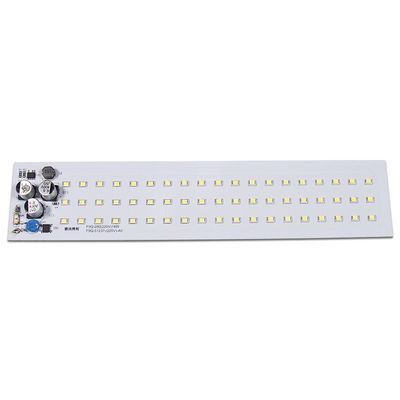

LED Light PCB Board introduction:



Aluminum Led light PCB have three major layers:

  •  Copper Layer
  •  Insulating Layer
  •  Metal Substrate

COPPER LAYER

For the copper layer, we typically use electrolytic copper foil, which we etch to form the printed circuit. This layer holds the SMD components and copper traces on the layer form the necessary interconnections. When compared to a traditional FR4 PCB of the same line width and copper weight, the presence of the aluminum base allows the board to carry more current without heating up.

INSULATING LAYER

Forming the core of the board, the insulating layer functions as the electrical insulator, heat conductor, and the bonding material between the copper layer and the aluminum substrate. In the entire buildup, the insulating layer also acts as a thermal barrier for the heat flow from the circuit to the aluminum. Therefore, better the thermal conductivity of the insulating layer, better is the heat management, and lower is the temperature rise of the components. High thermal conductivity not only increases the power output, it also extends the life-span of the board.

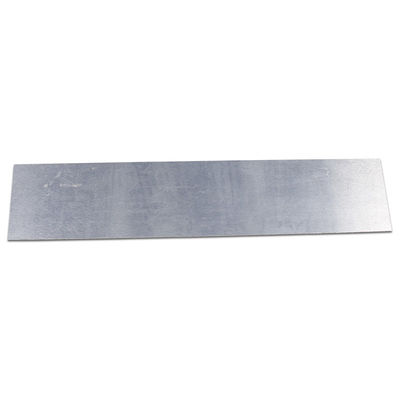

METAL SUBSTRATE

We choose a metal for the substrate depending on several factors such as cost, weight, hardness, strength, thermal coefficient of expansion, and thermal conductivity.


OEM 3 Layers Prototype SMT PCB Assembly For LED Light 0

Aluminum Led Pcb Applications:

Strip pcb Led Light pcb are widely used in LED lighting: Car led light, Ceiling light,Wall light, outdoor led light, living room led lighting,etc.


OEM 3 Layers Prototype SMT PCB Assembly For LED Light 1



Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB manufacturer,our products are widely used in lighting, Electronics, New Energy, Medical care ,Automotive and Other industries.Our PCB production capacity can reach 120000 sq.m/per month .

OEM 3 Layers Prototype SMT PCB Assembly For LED Light 2


FAQ:
Q1.  What service do you have?

A:  We can offer one-stop service from PCB manufacturing to PCB assembling, testing,housing and other value-added service.

Q2:  Are all your products certified with UL, ROHS etc?
A:  Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA,  UL , SGS, ROHS.

Q3:  What is needed for PCB PCBA quotation?
A:  PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)

PCBA: PCB information, BOM, (Testing documents...)
