IPC-II Standard Heavy Copper PCBA Circuit Board 94V0
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Copper pcb 03
High Light:

PCBA Circuit Board 94V0


IPC-II PCBA Circuit Board


PCBA Circuit Board Assembly 94V0

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 5-10work days
Payment Terms: T/T, Western Union
Supply Ability: PCB production capacity can reach 120000 sq.m/per month
Material: Copper
PCB Standard: IPC-II Standard
Copper Thickness: 0.5oz-6oz
Service Type: OEM/ODM/
Supplier Type: Factory
Application: Home Appliances, Electronics, Led Lighting
Product Description

Heavy Copper PCB circuit board 94V0 Rohs PCBA Manufacture

Heavy Copper PCB introduction:

Thick copper PCB products are used extensively in power electronic devices and power supply systems. A growing trend in the PCB industry, this unique type of heavy copper PCB features a finished copper weight of more than 4oz (140μm), compared to the 1oz (35μm) or 2oz (0μm) copper weight generally found in those with a standard PCB copper thickness.


The additional copper PCB thickness enables the board to conduct a higher current, achieve good thermal distribution and implement complex switches in a limited space. Other advantages include increased mechanical strength at connector sites, the ability to create a smaller product size by incorporating multiple weights on the same layer of circuitry and the ability to use exotic materials to their maximum capacity with minimal risk of circuit failure.



Place of Origin
Guangdong, China
Base Material
Min. Line Width
Brand Namey
Copper Thickness
1 Oz
Board Thickness
Min. Line Spacing
3 Mil (0.075 Mm)
Surface Finishing
HASL Lead Free
Min. Hole Size
Testing Service
Function Test
Solder masks color
Green,black,blue,red, white
Product name
PCB Board Assembly
Electronic Board
Custom logo

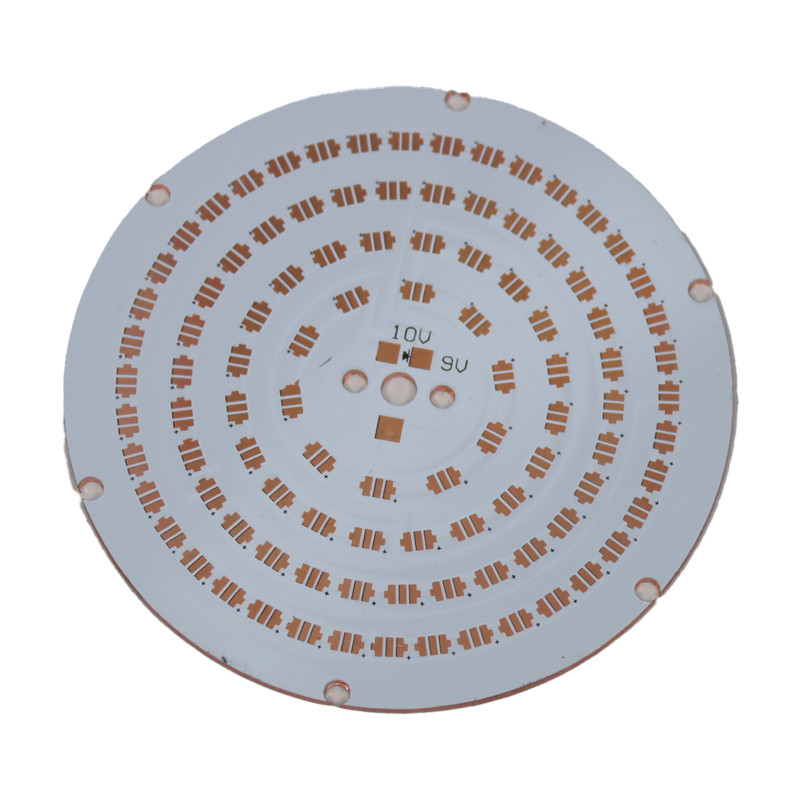

IPC-II Standard Heavy Copper PCBA Circuit Board 94V0 0

Applications Of Heavy Copper PCB Boards:

•  It helps in the dispersion of heat and reduces its core temperature. This application keeps the device safe by itself from any damage. It is able to transfer the heat of the component at a much faster rate.

•  It is a high frequency PCB and limited to only those who cannot be cooled by using conventional fan-cooling technique. The boards laminate, scatter and eliminate heat by making the device much cooler and therefore, the devices’ performance improves and increases their performance.

•  Heavy Copper PCB is made of a mixture consisting of various special alloys. Also Heavy Copper PCB is estimated to be 8 to 9 times faster than the other contemporary PCBs.

•  It is also useful for saving the performance of LED devices and from getting effected. It is necessary to use high density Heavy Copper PCB Board while using LED devices.

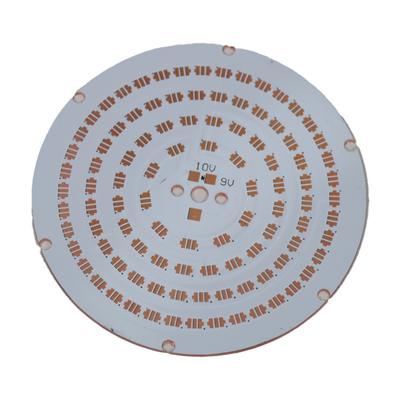

IPC-II Standard Heavy Copper PCBA Circuit Board 94V0 1

Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified by ISO9001: 2015 international quality management system. It was founded in 2012 and has been committed to the innovation and sustainable development of electronic technology. It is used in the manufacture and sales of various metal PCBs, LEDs and related products. The products are widely used in lighting, electronics, machinery, communications, automotive and other industries that require heat dissipation. With a senior management team and R & D design team with an average industry experience of more than 8 years, we have created a strong worldwide distribution network and sales channels, and our products sell well in Asia-Pacific, Europe, America, and the Middle East.

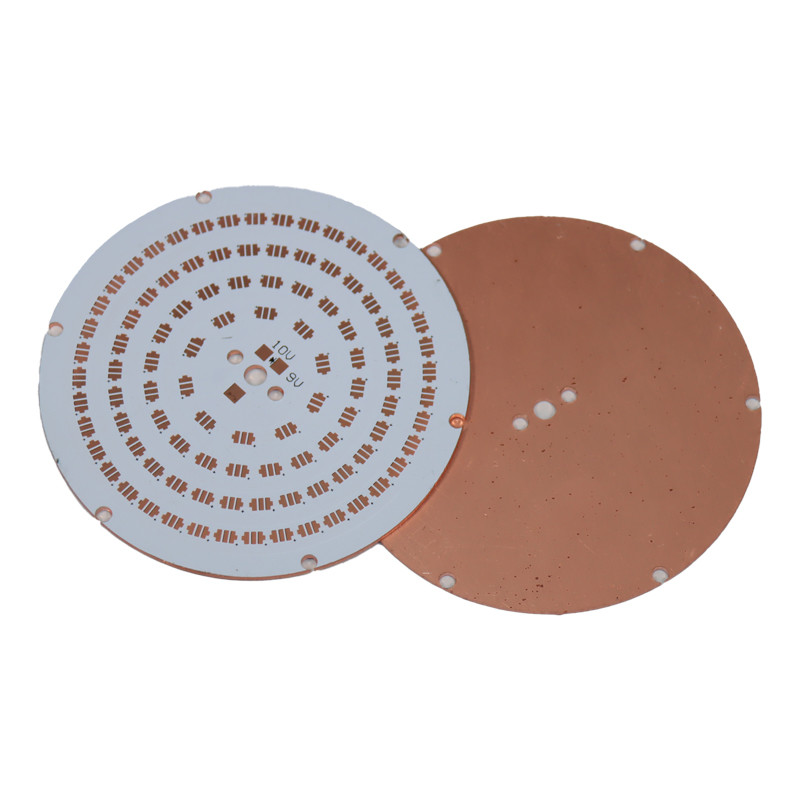

IPC-II Standard Heavy Copper PCBA Circuit Board 94V0 2


Q1.  What data is required for the quotation?
A:  Production requirements, materials (material thickness, copper thickness), production materials (Gerber files,), quantity

Q2.  What service do you have?
A:  We can provide one-stop services from PCB manufacturing to PCB assembly, testing, housing and other value-added services.

Q3.  How do I get samples and check your quality?
A:  After you pay and send us a confirmation document, your samples will be ready within 5-7 business days.
