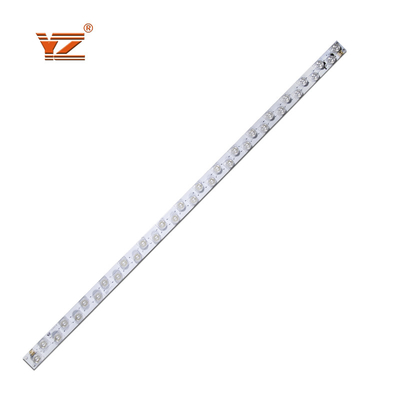

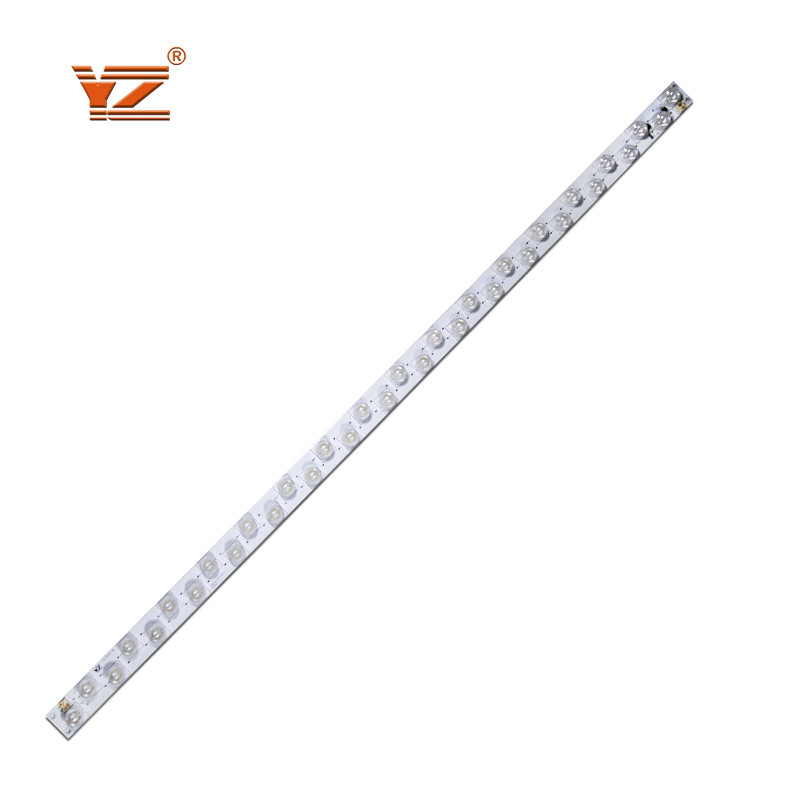

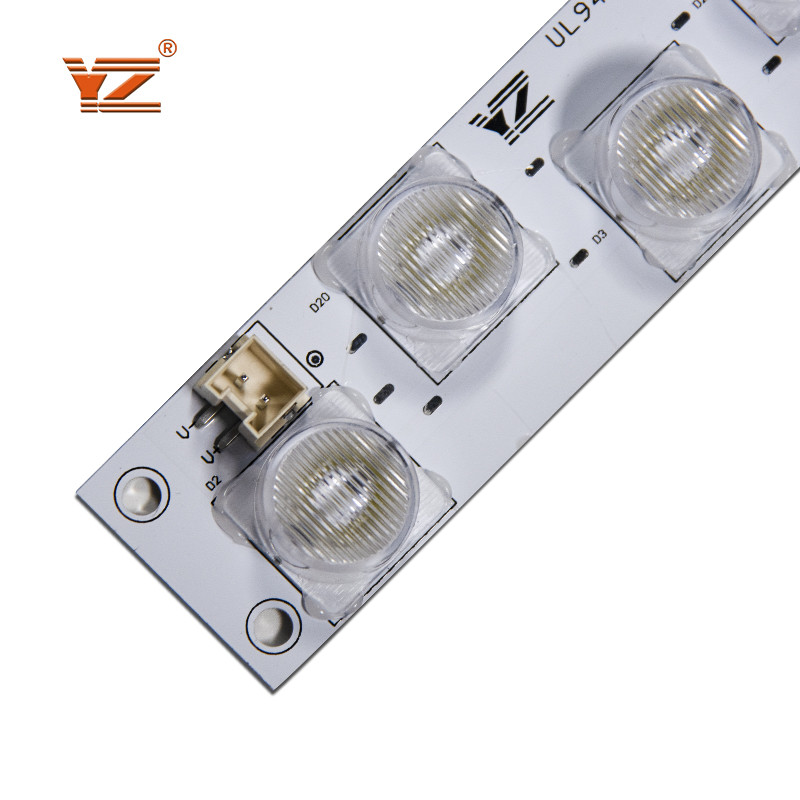

PCBA Marker Led Pcb Board Eesign Assembly Led Bulb Circuit Board
Electronics are an integral part of our daily lives. Everything from our smart phones to our cars includes electronic components. At the heart of these electronics is the printed circuit board, also known as a PCB.
Most people recognize printed circuit boards when they see them. These are the small green chips covered in lines and copper parts you'll find at the heart of gutted electronic devices. Made with fiberglass, copper lines and other metal parts, these boards are held together with epoxy and insulated with a solder mask. This solder mask is where that characteristic green color comes from.
However, have you ever observed those boards with components solidly stuck on? Never regard them as just decorations of a PCB board. An advanced circuit board won't be able to give its functionality until components are mounted on it. A PCB with components mounted on is called an assembled PCB and the manufacturing process is called PCB assembly or PCBA for short. The copper lines on bare board, called traces, electrically link connectors and components to each other. They run signals between these features, allowing the circuit board to function in a specifically designed way.
|
Technical Specification |
Minimum line width/gap:3.5/4mll(laserdrill) Multilayers:0.40-4.0mm, Min Solder Mask Bridge:0.08mm Aspect ratio: 8: 1
|
|||
Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified by ISO9001: 2015 international quality management system. It was founded in 2012 and has been committed to the innovation and sustainable development of electronic technology. It is used in the manufacture and sales of various metal PCBs, LEDs and related products. The products are widely used in lighting, electronics, machinery, communications, automotive and other industries that require heat dissipation. With a senior management team and R & D design team with an average industry experience of more than 8 years, we have created a strong worldwide distribution network and sales channels, and our products sell well in Asia-Pacific, Europe, America, and the Middle East.
FAQ:
Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
Q2. How do you ship the goods and how long does it take arrival?
A: We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5 days to arrive.
Q3: Do you have MOQ limited?
A: We don’t have any MOQ limited, the minimum order we accept is 1pcs.
