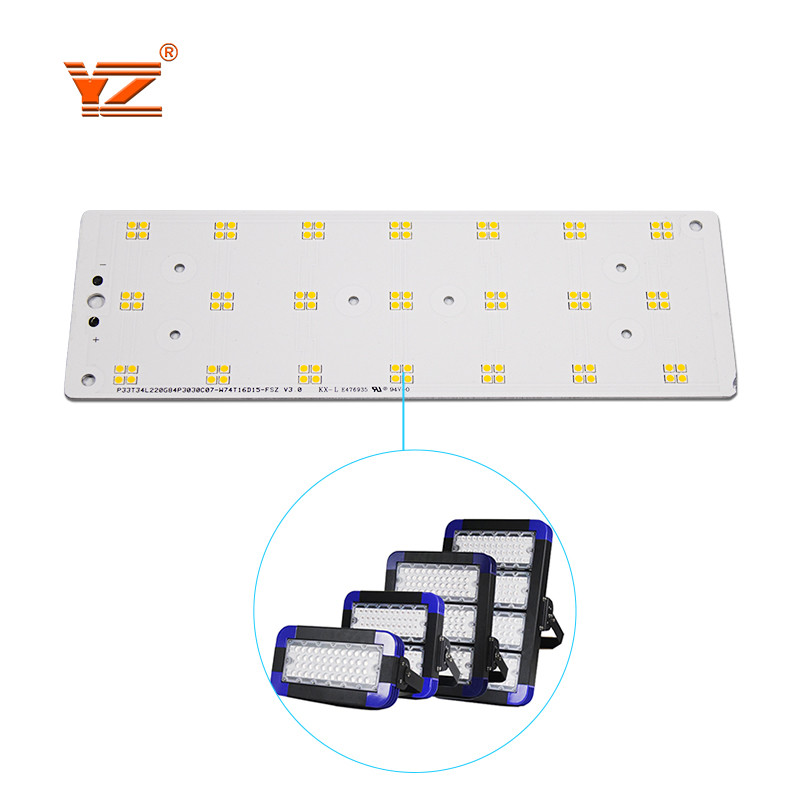

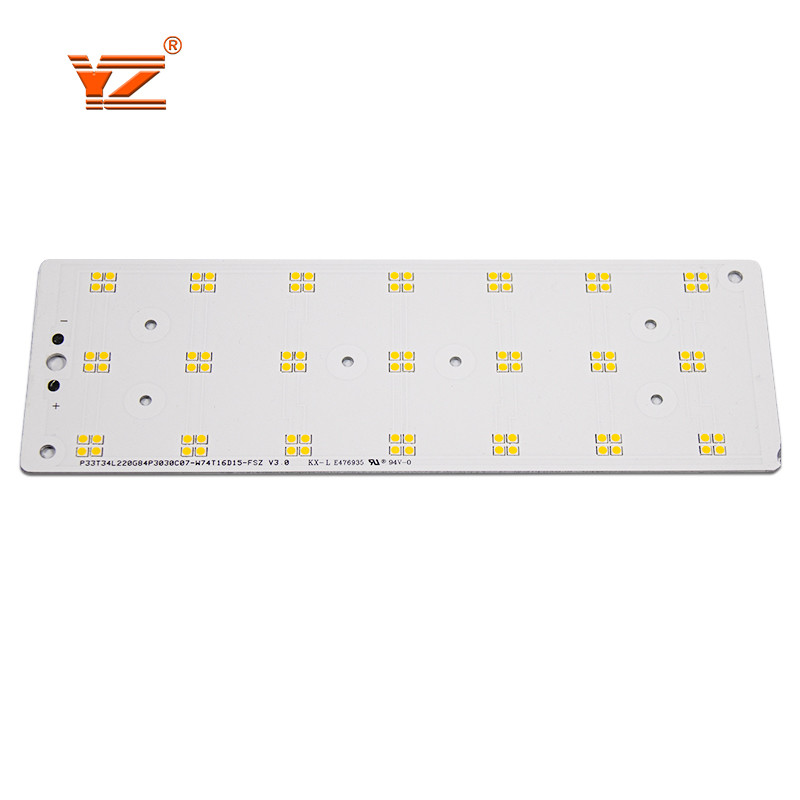

Aluminum Pcb Assembly Smd Led PCBA Circuit Board for flood Light
An LED PCB is a printed circuit board specially made for LED circuits since they produce a great amount of heat energy. LED PCBs are metal-based MCPCBS, and their substrate is aluminum, which has good thermal conductivity.
LED PCBs are made of a special thin layer of thermally conductive material which dissipates heat quickly as compared to the usual PCB boards. Aluminum is the main material used in LED circuit boards.
The design of LED PCBs is fairly simple. One or more LEDs are soldered to the aluminum-based board along with heat sinks and a chip.
All you need to do is connect the chip to a power supply through the positive and negative terminals present on the PCB, and the LED circuit board will light up instantly.
|
PCBA Capabilities
|
|
|
Turnkey PCBA
|
PCB+components sourcing+assembly+package
|
|
Assembly details
|
SMT and Thru-hole, ISO SMT and DIP lines
|
|
Lead Time
|
Prototype: 15 work days. Mass order: 20~25 work days
|
|
Testing on products
|
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
|
|
Quantity
|
Min quantity: 1pcs. Prototype, small order, mass order, all OK
|
|
Files needed
|
PCB: Gerber files(CAM, PCB, PCBDOC)
|
|
Components: Bill of Materials(BOM list)
|
|
|
Assembly: Pick-N-Place file
|
|
|
PCB Panel Size
|
Min size: 0.25*0.25 inches(6*6mm)
|
|
Max size: 20*20 inches(500*500mm)
|
|
|
PCB Solder Type
|
Water Soluble Solder Paste, RoHS lead free
|
|
Components details
|
Passive Down to 0201 size
|
|
BGA and VFBGA
|
|
|
Leadless Chip Carriers/CSP
|
|
|
Double-sided SMT Assembly
|
|
|
Fine Pitch to 0.8mils
|
|
|
BGA Repair and Reball
|
|
|
Part Removal and Replacement
|
|
|
Component package
|
Cut Tape,Tube,Reels,Loose Parts
|
|
PCB assembly process
|
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
The Applications of LED PCB Circuit Board:
The Led benefits make LED printed circuit boards very desirable for a number of applications and industries. Some of the more prominent applications of Aluminum LED PCB Circuit Board include:
Telecom LED PCB: Telecommunications equipments often uses LED indicators and displays, and because of the surrounding machinery, the improved heat transfer ability of Aluminum LED PCB is extremely useful in this application. Improved durability and decreased weight also make these aluminum PCB LED quite desirable within telecommunications applications. Not only that, but Led Metal core PCBs are commonly used in other components of telecommunications equipment as well, including filtering appliances and high-frequency amplifiers.
Automotive LED PCB: You can also find Led Aluminum PCB Board in cars on indicators, in headlights and brake lights, and other applications. The durability, longevity and relatively low price makes these Led aluminum PCB ideal within the automotive industry. Their applications don’t end at LED either – aluminum PCBs are commonly used within electronic regulators and power controllers.
Computer Led PCB: LED displays and indicators are becoming increasingly common within computer applications, and the heat sensitivity of computer machinery makes Led PCB the ideal solution. In addition to LED applications, computer parts like power devices, floppy drives and CPU boards are commonly use aluminum LED PCBs because of their ability to handle and transfer heat.
Medical LED PCB: Lighting tools used in surgeries and medical examinations commonly use high-powered LED lights, and these LED lights often use aluminum PCBs. This is primarily due to the durability and heat transfer capabilities of aluminum PCB LEDs — this ensures medical equipment is functioning properly regardless of the number of patients cycling through a medical office. In addition to lighting tools, medical scanning technology often uses aluminum PCBs as well.
