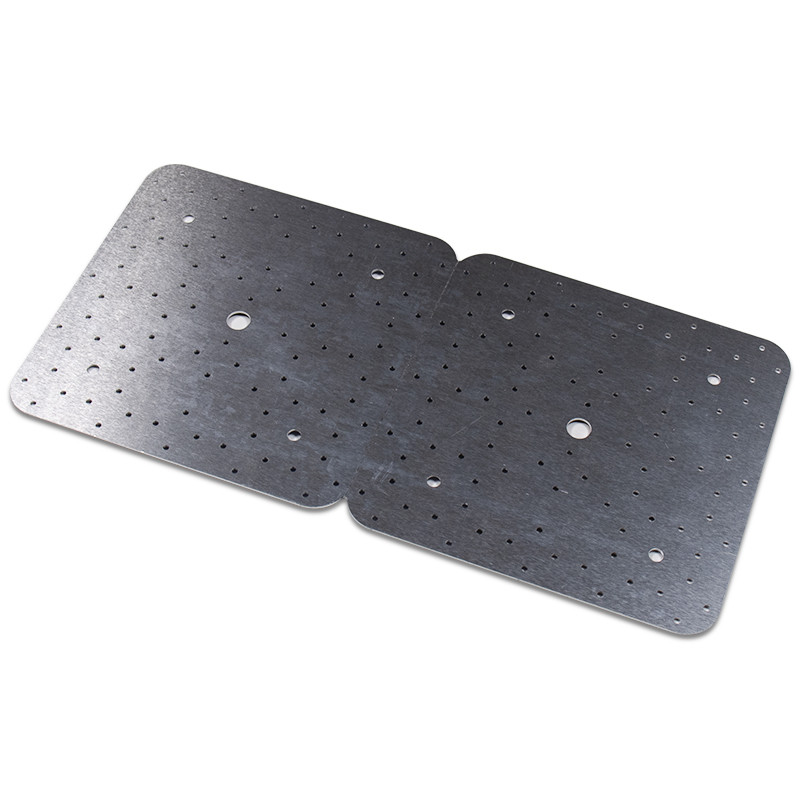

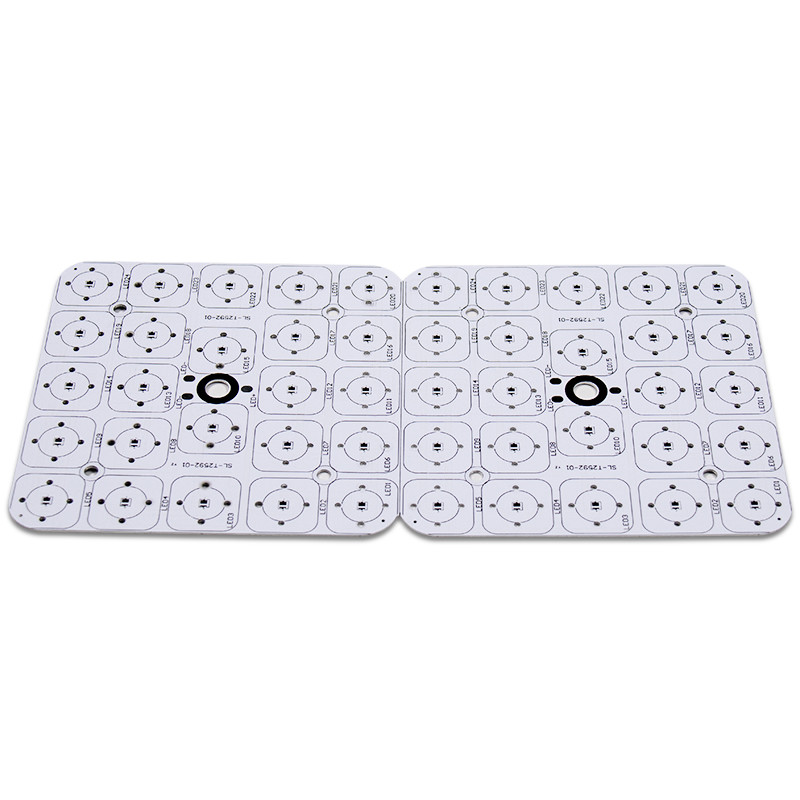

Custom aluminum led pcb 1.0mm 1.6mm 2.0mm thickness circuit board
Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified to ISO9001: 2015 international quality management system. We have CE, ROHS, UL certification. It was founded in 2012 and factory area consists of more than 6,000 square meters, 120 employees, and two shifts. We have the capability to manufacture aluminum PCBs, FR4 PCBs, LED PCBA, and other related products. We are also providing services like PCB design, PCB assembly, and LED SMT board processing for PCB designing services. The products are widely used in lighting, electronics, communications, automotive and other industries that require heat dissipation.
Shenzhen Yizhuo provided Custom LED PCB Assembly is considered as the powerful and modern structure that is made for satisfying various electrical needs of clients. We manufacture and supply our wide stock by employing advanced techniques and quality tested materials. All these assemblies are broadly acclaimed for distributing electricity to the domestic as well as commercial applications. To maintain quality, we inspect our line of Custom LED PCB Assembly on durability parameters.
Aluminum led pcb Features:
|
Layer
|
1~64 Layers
|
|
Material
|
FR4, CEM1, CEM3, Aluminum
|
|
Production Capacity
|
30000 ㎡/months
|
|
Board shape
|
Rectangular, Round, Slots, Cutouts, Complex Irregular
|
|
Board cutting
|
Shear, V-Score, Tab-Routed, Counter Sunk
|
|
Board thickness
|
0.2~8.0mm, Flex 0.1-0.25mm
|
|
Copper weight
|
0.5oZ~12oZ
|
|
Solder Mask
|
Double-sided Green LPI, Red, White, Yellow, Blue, Black, Purple etc.Solder mask
|
|
Silk screen
|
Double-Sided or Single-Sided in White, Yellow, Black etc
|
|
Min line width/space
|
0.08mm/3mil
|
|
Max board dimensions
|
25.6inch*43.3inch or 650mm*1100mm
|
|
Min drill hole diameter
|
0.1mm
|
|
Min Laser Drill hole diameter
|
0.075mm
|
|
Surface finish
|
HASL, ENIG, Immersion Tin, Immersion Silver, OSP,ENEPIG etc
|
|
Board thickness toleranc
|
± 10%
|
|
Min slot width
|
0.12",3.0mm,or 120mils
|
|
V-score depth
|
20-25% of board thickness
|
|
PTH Wall Thickness
|
>0.025mm
|
|
PTH Hole Dia Tolerance
|
±0.076mm
|
|
Non PTH Hole Dia Tolerance
|
±0.05mm
|
|
Hole Position Deviation
|
±0.076mm
|
|
Sink holes
|
Yes
|
|
Quality Standard
|
IPC-A600F/MIL-STD-105D
|
|
Design file format
|
Gerber RS-274X, 274D, Eagle and AutoCAD'S DXF,DWG
|
Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified to ISO9001: 2015 international quality management system. We have CE, ROHS, UL certification. It was founded in 2012 and factory area consists of more than 6,000 square meters, 120 employees, and two shifts. We have the capability to manufacture aluminum PCBs, FR4 PCBs, LED PCBA, and other related products. We are also providing services like PCB design, PCB assembly, and LED SMT board processing for PCB designing services. The products are widely used in lighting, electronics, communications, automotive and other industries that require heat dissipation. Our professionals work in close association to understand the specific requirements of our clients. In our quality testing unit, we meticulously test each product, thus results in their compliance with international quality standards. We can do ODM or OEM one-stop service for our customers.
FAQ:
Q1. Do you have MOQ limited?
A: We don’t have any MOQ limited, the minimum order we accept is 1pcs.
Q2: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products..
Q3: How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
