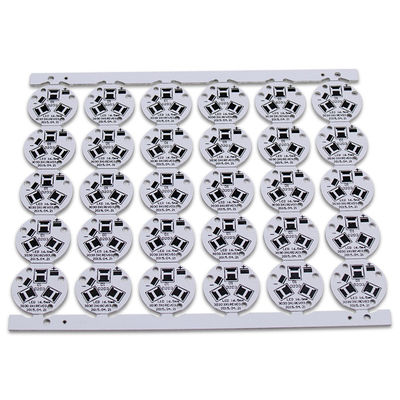

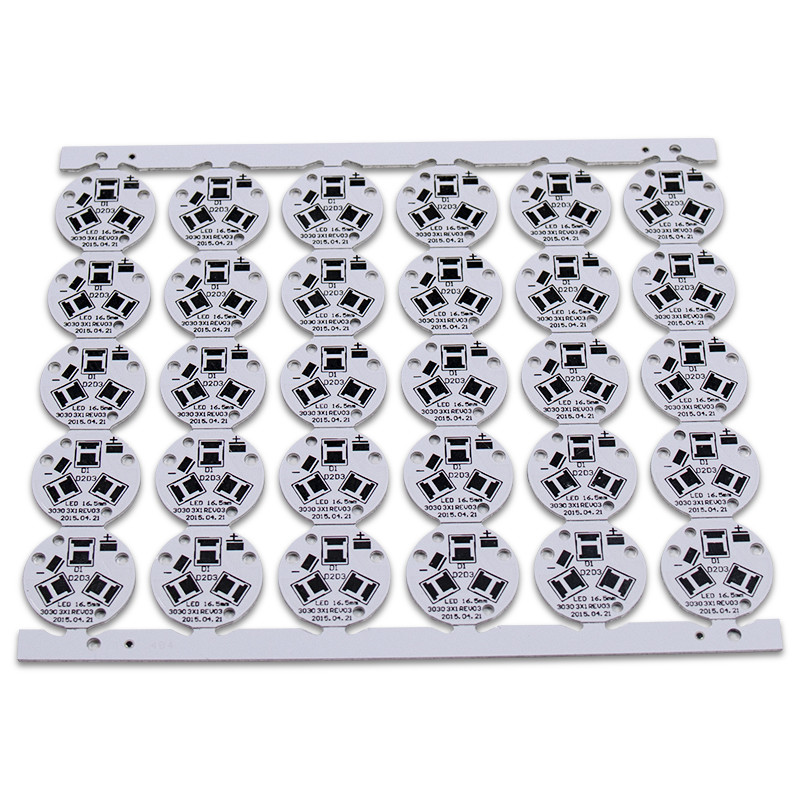

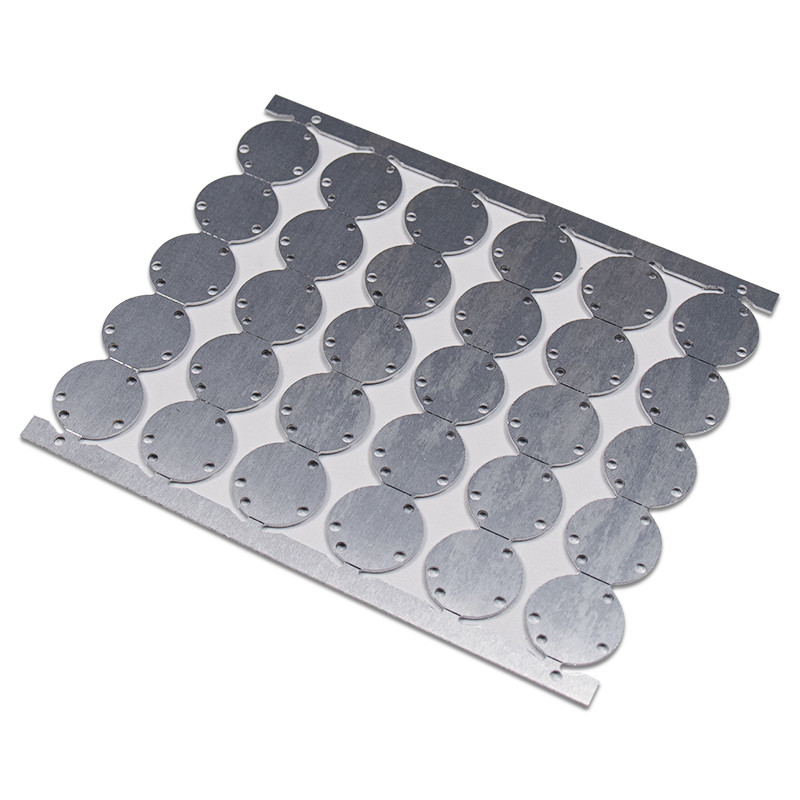

MCPCB LED Aluminum circuit board single-side PCB DOB module
General introduction of LED Aluminum circuit board:
Among all Metal core PCBs, Aluminum PCB is the most common type. The base material consists of an aluminum core and standard FR4. It features a thermal clad layer that dissipates heat in a highly efficient manner while cooling components and increasing the overall performance of the products. Currently, Aluminum Backed PCB is regarded as the solution to high power and tight tolerance applications.
Advantages of LED Aluminum circuit board:
1. Environmentally Friendly: Aluminum is non-toxic and recyclable. Manufacturing with aluminum is also conducive to conserving energy due to its ease of assembly. For printed circuit board suppliers, using this metal helps maintain the health of our planet.
2. Heat dissipation: High temperatures can cause severe damage to electronics, so it is wise to use a material that can help dissipate heat. Aluminum can actually transfer heat away from vital components, thus minimizing the harmful effect it could have on the circuit board.
3. Higher durability: Aluminum provides strength and durability to a product that ceramic or fiberglass bases cannot. Aluminum is a sturdy base material that can reduce accidental breakage during manufacturing, handling, and everyday use.
4. Lightweight: For its incredible durability, aluminum is a surprisingly lightweight metal. Aluminum adds strength and resilience without adding on any additional weight.
|
1.Base Material
|
FR-4 /Aluminum /CEM-1
|
|
2.Layers
|
1-40
|
|
3.Finised inner/outer copper thickness
|
1-6OZ
|
|
4.Finished board thickness
|
0.2-7.0mm
|
|
5.Min hole size
|
Mechanical hole: 0.15mm Laser hole: 0.1mm
|
|
6.Controlled Impedance
|
+/-5%
|
|
7.Plugging vias capability
|
0.2-0.8mm
|
|
8.Outline profile
|
Rout/ V-cut/ Bridge/ Stamp hole
|
|
9.Surface treatment
|
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS...
|
Shenzhen Yizhuo Electronics Co., Ltd. is a national high-tech enterprise certified to ISO9001: 2015 international quality management system. We have CE, ROHS, UL certification. It was founded in 2012 and factory area consists of more than 6,000 square meters, 120 employees, and two shifts. We have the capability to manufacture aluminum PCBs, FR4 PCBs, LED PCBA, and other related products. We are also providing services like PCB design, PCB assembly, and LED SMT board processing for PCB designing services. The products are widely used in lighting, electronics, communications, automotive and other industries that require heat dissipation. Our professionals work in close association to understand the specific requirements of our clients. In our quality testing unit, we meticulously test each product, thus results in their compliance with international quality standards. We can do ODM or OEM one-stop service for our customers.
FAQ:
Q1. Do you have MOQ limited?
A: We don’t have any MOQ limited, the minimum order we accept is 1pcs.
Q2: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products..
Q3: How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
