Custom Thickness 0.8mm 2.0mm LED PCB Board Min Line Width 0.1mm
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: led pcb board01
High Light:

2.0mm LED PCB Board

,

0.8mm LED PCB Board

,

0.8mm Custom Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Base Material: Aluminum
Board Thickness: 0.8, 1.0, 1.2, 1.5, 1.6, 2.0mm
Min. Hole Size: 0.1mm
Min. Line Width: 0.1mm
Board Size: Can Be Customized
Surface Finishing: OSP, HASL Lead Free
Copper Foil Thickness: 18um, 25um,35um, 70um
Product Description

Custom Thickness 0.8mm 2.0mm LED PCB Board Min Line Width 0.1mm



Pcb Manufacturer led pcb board custom circuit board led for led light





LED light PCB

Layer

Single-side, Double Side

Board thickness

0.8, 1.0, 1.2, 1.5, 1.6, 2.0

Copper foil thickness

18um, 25um,35um, 70um (can be customized,.the price is deifferent)

Surface Treatment

OSP

Silkscreen

White, Yellow, Black

PCB size

can be customized

Base Material

Aluminum

Package

Vacuum Package



What is Aluminum PCB?

Aluminum PCB is the PCB type that used the low alloyed Al-Mg-Si with high plasticity alloy plate as the substrate material that has better thermal conductivity, electrical insulation, and machining performance, compared with the traditional FR4 PCB.

Similar to other types of PCBs, Aluminum PCB is structured by the conductive layer (copper layer); insulation layer (dielectric layer); and the substrate layer.

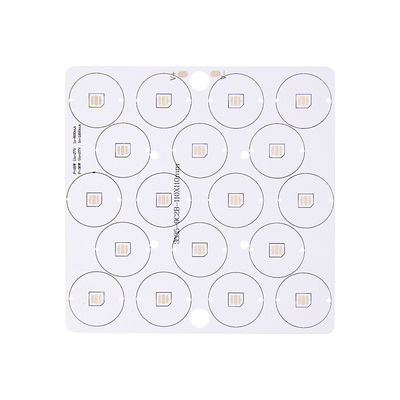

Custom Thickness 0.8mm 2.0mm LED PCB Board Min Line Width 0.1mm 0

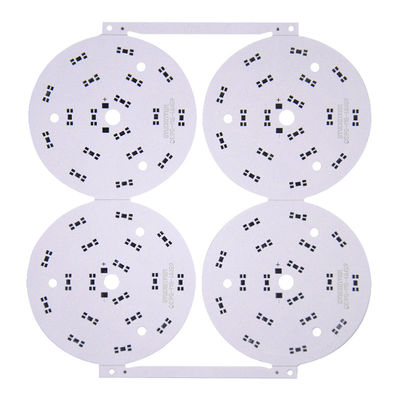

Custom Thickness 0.8mm 2.0mm LED PCB Board Min Line Width 0.1mm 1

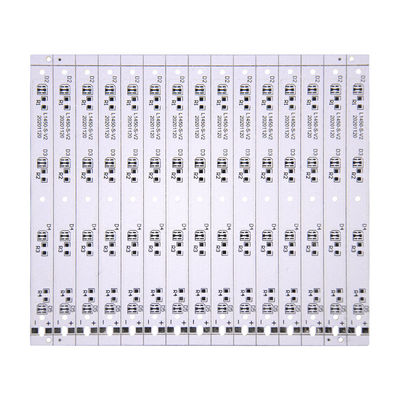

Custom Thickness 0.8mm 2.0mm LED PCB Board Min Line Width 0.1mm 2



Applications
1. Automoblie Light.
2. Medical equipment light
3. T5/T8 Lamp
4. Led plant lamp.
5. Household lamp.



Custom Thickness 0.8mm 2.0mm LED PCB Board Min Line Width 0.1mm 3



FAQ:

Q1. What service can you supply ?
A: We are OEM PCB and PCBA manufacturer since 2012 ,we can provide one-stop solution including RD PCB fabrication,SMT and assembly PCBA.

Q2. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
