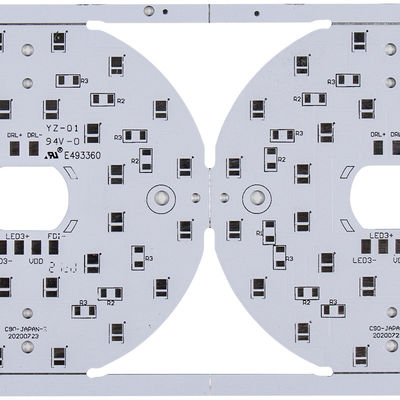

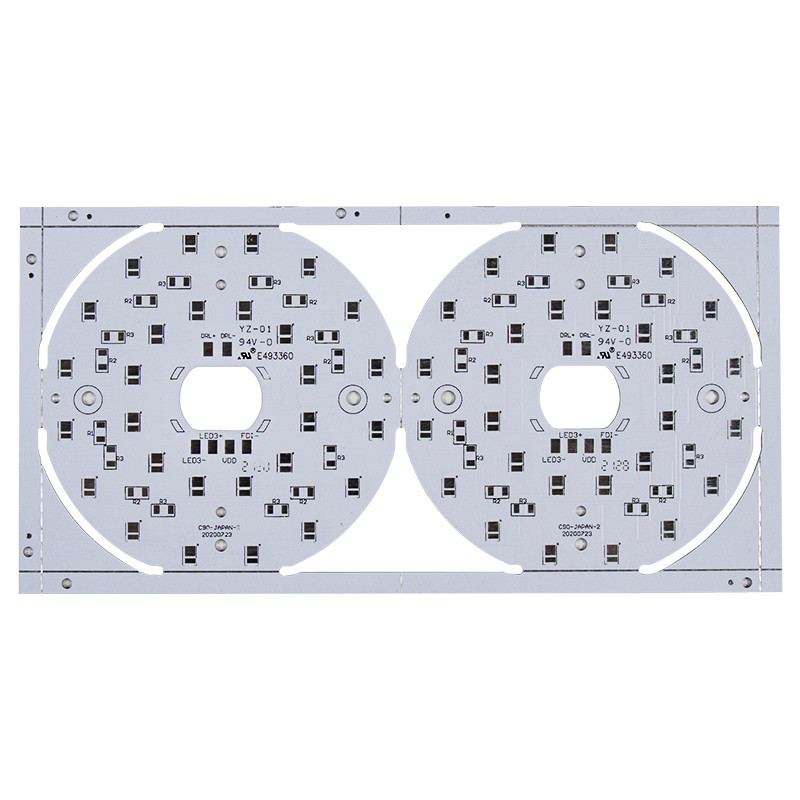

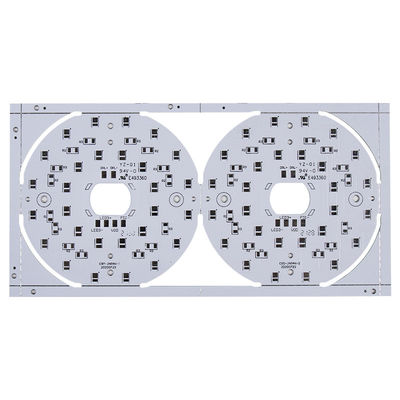

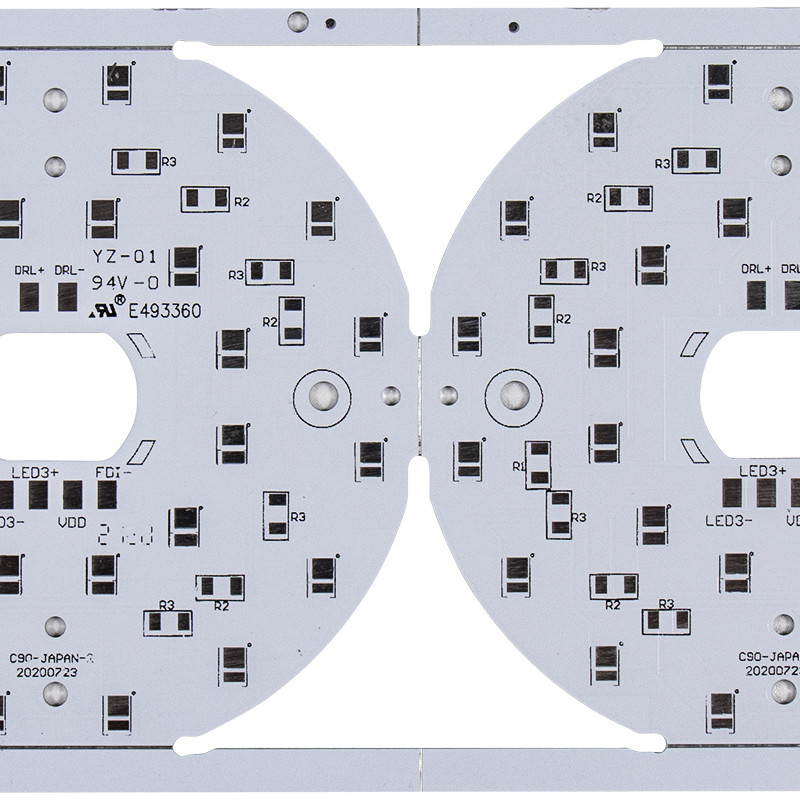

OEM ODM LED Light Circuit Board Assembly Aluminum Base PCB
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: Led Bulb circuit pcb
High Light:

ODM LED Light Circuit Board Assembly

,

OSP LED Light Circuit Board Assembly

,

ODM Aluminum Base PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Layer: 1-2 Layers
Testing: Fixturer Testing Jig/flying Testing
Keywords: Led Bulb Circuit Pcb
PCBA Service: SMD SMT DIP Component Assembly
Silkscreen: White, Yellow, Black
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing,
Product Description

OEM ODM LED Light Circuit Board Assembly Aluminum Base PCB



OEM LED Light PCB Board Led Bulb circuit pcb Aluminum base



Base Material FR-4 /Aluminum /CEM-1
Layers 1-22
Finised inner/outer copper thickness 1-6OZ
Finished board thickness 0.2-7.0mm
Min hole size Mechanical hole: 0.15mm Laser hole: 0.1mm
Controlled Impedance +/-5%
Plugging vias capability 0.2-0.8mm
Outline profile Rout/ V-cut/ Bridge/ Stamp hole
Surface treatment HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS...




In addition, using aluminum substrates has the following unique advantages:

  1. MeetsRestriction of Hazardous Substances (RoHS) requirements;
  2. More suitable for the surface-mounted technology (SMT)process;
  3. In terms of circuit design, thermal diffusion is extremely well treated, thereby reducing the operating temperature of the module, extending the service life, and improving the power density and reliability;
  4. Reducesthe assembly of heat sinks and other hardware (including thermal interface materials), reduces product volume, and reduces hardware and assembly costs; optimizes the combination of power circuits and control circuits; and
  5. Replacesfragile ceramic substrate PCBs to obtain better mechanical durability.OEM ODM LED Light Circuit Board Assembly Aluminum Base PCB 0


FAQ:

Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.

Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.

Q3:  Does our product will be tested before shipment?
A:  Yes, we could provide Function Circuit Testing .
