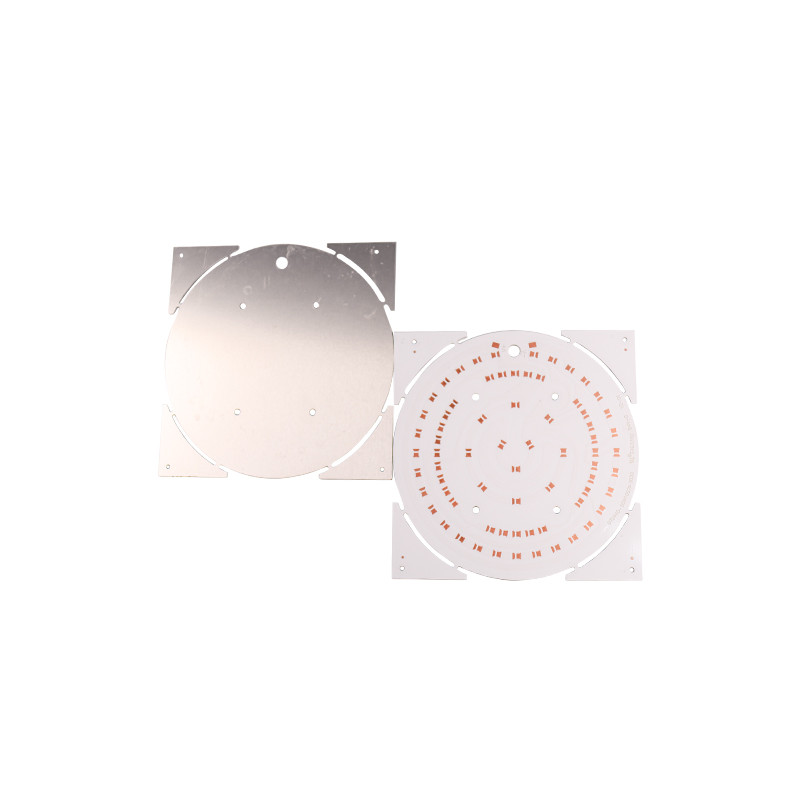

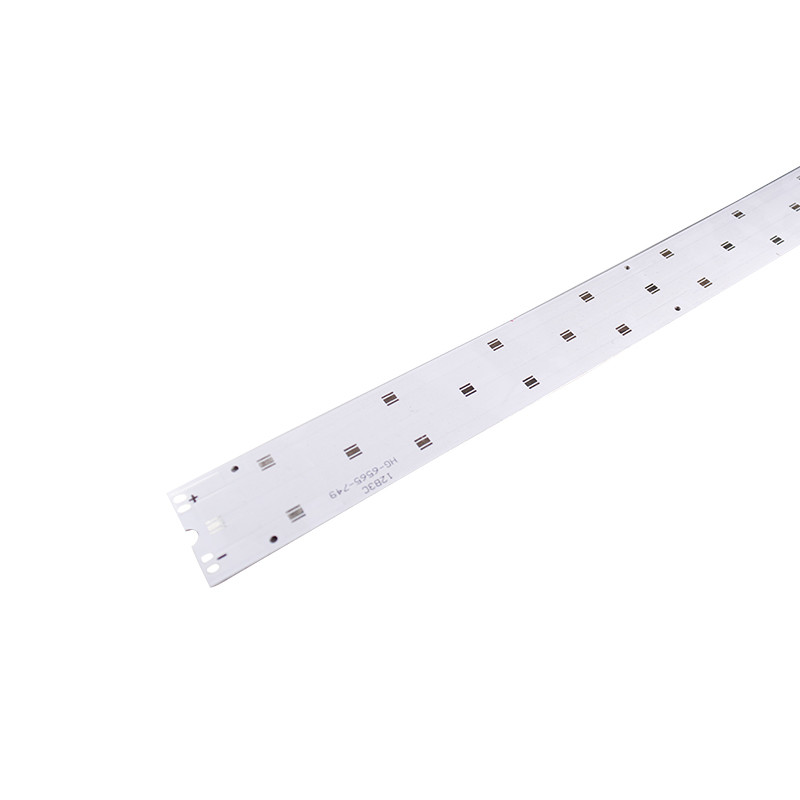

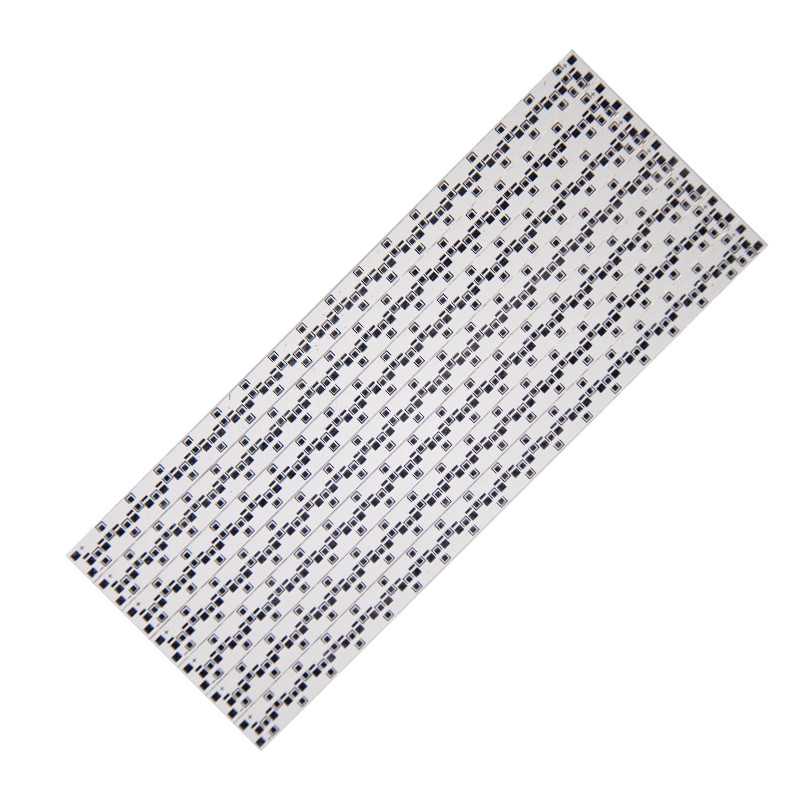

Custom Size 1oz Copper LED Printed Circuit Board HASL Lead Free
1 OZ Copper Aluminium PCB LED Circuit Board Custom Pcb size
1. Surface Treatment ---- HASL,Flash gold Immersion Gold/Nickle,OSP
2. Number of Layer ----- Single Sided , Two-sided and multilayer ,Special layer
3. Max. PCB Size ----- 600mm×500mm
4. PCB Thickness ----- 0.5-5.0mm
5. Copper Foil Thickness ----- H 1 2 3 4 6 10 (oz)
6. Insulating Layer Thickness ----- 50 75 100 125 150 (um)
|
LED light PCB
|
||||
|
Layer
|
Single-side, Double Side
|
|||
|
Board thickness
|
0.8, 1.0, 1.2, 1.5, 1.6, 2.0
|
|||
|
Board Thickness Tolerance
|
±10%(>1.0mm) ±8%(<1.0mm)
|
|||
|
Service type
|
OEM/ODM
|
|||
|
Silkscreen
|
White, Yellow, Black
|
|||
|
PCB size
|
can be customized
|
|||
|
Base Material
|
Aluminum
|
|||
|
Package
|
Vacuum Package
|
|||
Applications:
1. Indoor out door decoration.
2. Architectural and boutique atmosphere lighting.
3. Back, concealed , channel letter lighting.
4. Emergency & security, advertisement sign lighting.
5. Holiday Decoration.
FAQ:
Q1. What specifications do you need for PCB quotation?
A: Gerber file of the bare PCB board,BOM (bill of material) for assembly
Q2. Do you have any minimum order quantity (MOQ) requirement?
A: No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
Q3: How about the shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
