OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: Single-sided PCB 02
High Light:

94v0 Single Sided PCBs

,

LED Single Sided PCBs

,

94v0 Single Layer Pcb Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Layer: Single Layer
Base Material: Aluminium
Copper Thickness: 1oz~4oz
Certificate: ISO9001:2008,ROHS,UL
Led Pcb Board Dime: Round/square/custom
Application: Electronics Device
Product Description

OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration



OEM PCB Circuit Boards LED 94v0 Aluminum PCB for Illumination Lighting



Product Specification

Layers

1 Layer

Material

Aluminum

Application

LED

Copper thickness

1oz

Board thickness

1.6mm

Min. Hole Size

4mm

Min. Line Width

39mil

Min. Line Spacing

22mil

Surface Finish

LF_HASL

S/M Color

White

Legend Color

Black

Special Process

HDI, BVH, back drill, pressfit hole, edge plating, VOP, counter sunk, half hole, gold plating, gold finger, ENIG+OSP, flex board, rigid-flex board



●Single Sided PCB:
Single-Sided Aluminum PCB is divided into three layers, aluminum, insulating layer, and copper. Aluminum is for heat dissipation, insulating layer is for heat conduction, and copper is for conduction. Generally, one side is printed with circuit, the other side is smooth wireless circuit. The most common aluminum pcb on the market is a single-sided aluminum PCB. Compared with the traditional FR-4 pcb, it adopts the same thickness and the same line width, and the aluminum substrate can carry higher current.



●Product Features:

1.  Good thermal conductivity, electrical insulation properties and mechanical processing properties.

2. Single-Sided Aluminum PCB meets RoHs requirements.

3. Good mechanical durability, better than ceramic circuit boards made by some simple processes.



● Product Application:

Single-Sided Aluminum PCB is mainly used in input and output amplifiers, balanced amplifiers, audio amplifiers, pre-amplifiers, power amplifiers, inverter, solid state relay, rectifier bridge, etc.

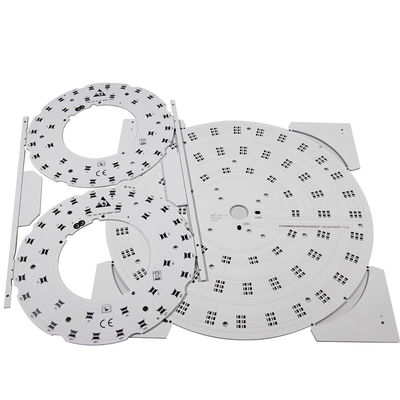

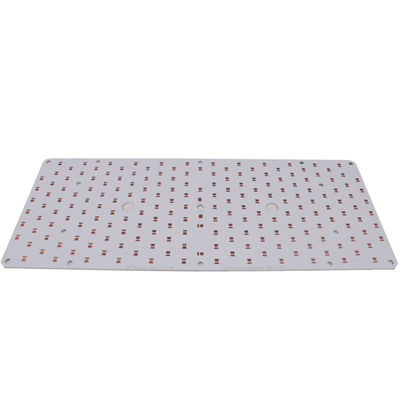

OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration 0OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration 1

Applications:

1. Indoor out door decoration.

2.  Architectural and boutique atmosphere lighting.

3.  channel letter lighting.

4.  Emergency & security, advertisement sign lighting.

5.  Holiday Decoration.

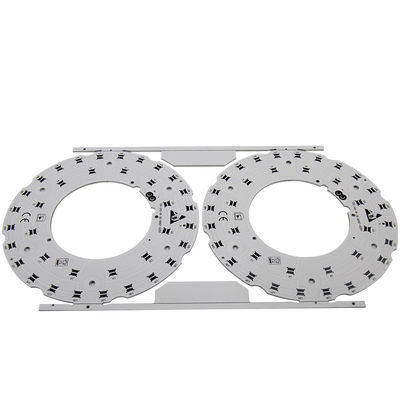

OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration 2

OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration 3
