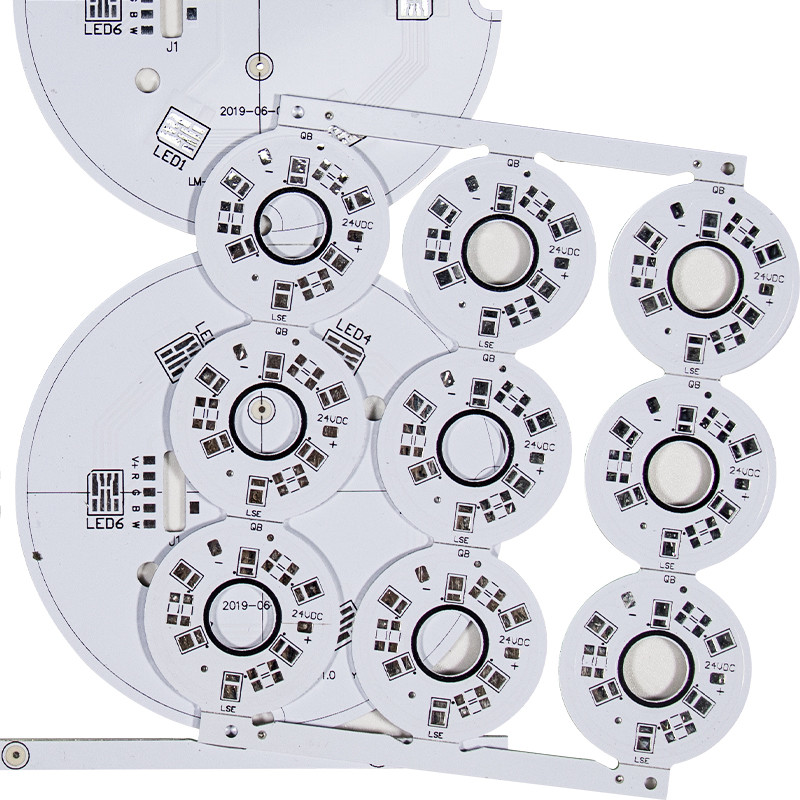

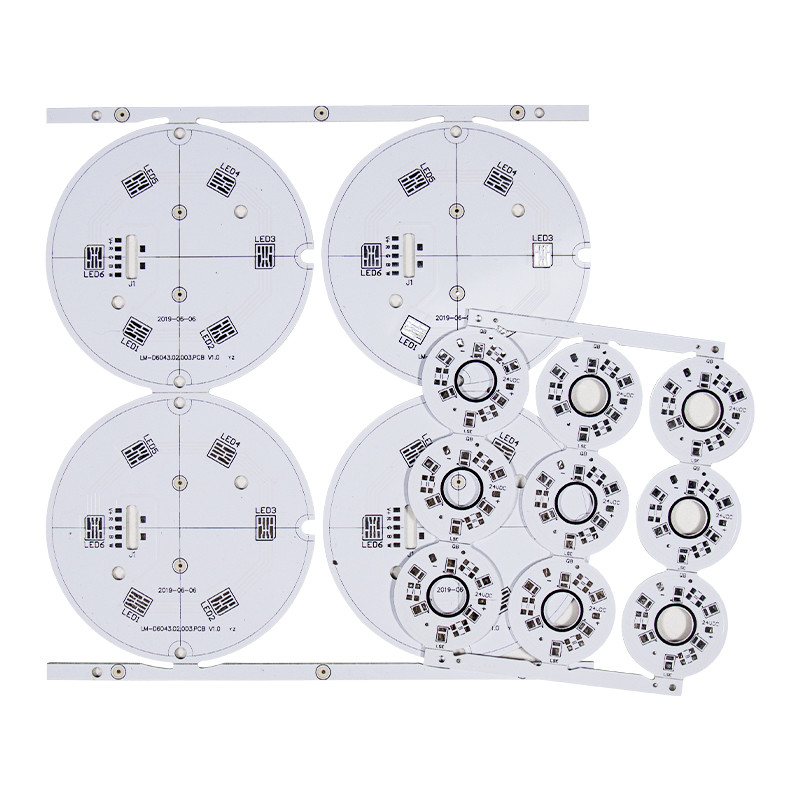

White Solder Mask Aluminum Single Sided PCBs SMT For LED Lighting
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Single Side PCB 06
High Light:

Aluminum Single Sided PCBs


SMT Single Sided PCBs


6OZ Single Circuit Board

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Surface Finishing: HALS Lead Free
Min. Line Spacing: 0.1mm
Min. Hole Size: 0.2mm
Electrical Testing: Fixture / Flying Probe
Service: PCB And PCB Assembly
Certification: UL,RoHS, CE
Product Description

White Solder Mask Aluminum Single Sided PCBs SMT For LED Lighting


Single Sided Aluminum PCB white solder mask OSP for lamp LED lighting

Features of Aluminium PCB Board:

1. The surface mounting technology (SMT) of flexible aluminum PCB; PCB aluminum plate has good heat dissipation operation in the circuit design scheme;

2. PCB aluminum plate can reduce temperature, improve product power density and reliability, and extend product life;]

3. Metal core printed circuit board can reduce the volume and reduce the cost of hardware and assembly;

4. PCB aluminum plate can replace ceramic substrate to obtain better mechanical endurance.

1.Base Material
FR-4 / High TG FR-4 /Aluminum /CEM-1/Rogers/Arlon/Taconic/Teflon
3.Finised inner/outer copper thickness
4.Finished board thickness
5.Min hole size
Mechanical hole: 0.15mm Laser hole: 0.1mm
6.Controlled Impedance
7.Plugging vias capability
8.Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
9.Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS...



White Solder Mask Aluminum Single Sided PCBs SMT For LED Lighting 0




Q1.  Are you a factory or trade company?

A:  We have our own PCB manufacturing & Assembly factory.


Q2:  Are all your products certified with UL, ROHS etc?

A:  Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA,  UL , SGS, ROHS.


Q3:  What service do you have?

A:  We are providing pcb fabrication, components purchasing, pcb assembly, complete assembly.
