Single Sided Aluminum 94v0 PCB Circuit Board Good Heat Dissipation
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Single Side PCB 05
High Light:

94v0 PCB Circuit Board


HALS PCB Circuit Board


94v0 Heat Dissipation PCB

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Surface Finishing: HALS Lead Free
Material: Aluminum
Silkscreen: White,Black
Electrical Testing: Fixture / Flying Probe
Service: PCB And PCB Assembly
Certification: UL,RoHS, CE
Product Description

Single Sided Aluminum 94v0 PCB Circuit Board Good Heat Dissipation


A thin layer of thermally conductive but electrically insulating dielectric is laminated between a metal base and a copper foil. The copper foil is etched into the desired circuit pattern and the metal base draws heat away from this circuit through the thin dielectric.

Aluminum PCB is a unique metal-based copper clad laminate; it has good thermal conductivity, electrical insulation and machining performance.

Aluminum PCB is one of metal-based pcb, including copper foil, thermal insulating layer and metal substrate, its structure divide into three layers:

  1. Circuit layer: the equivalent of an ordinary PCB, copper thickness from 1oz to 10oz.
  2. Insulation layer: Insulation is a layer of thermal insulating material with low thermal resistance. Thickness: 0.003 "to 0.006" inch is the aluminum pcb core technology.
  3. Based Layer: a metal substrate, usually aluminum or copper may be chosen.

The heat dissipation afforded by this construction is dramatically superior to standard FR-4 constructions. The dielectrics used are typically 5 to 10 times as thermally conductive as conventional epoxy-glass and a tenth of the thickness resulting in thermal transfer exponentially more efficient than a conventional rigid PCB.

Although Power Converters and LEDs are the largest users of these products, Automotive and RF companies are also looking to take advantage of the benefits of these constructions. A single layer construction is the simplest, most thermally conductive and most cost effective construction. Designs with higher component counts may not have room for all the required routing on a single layer. In this case a two layer design is required. A thin sheet of dielectric, typically around .006” thick, is drilled, plated and etched much like a standard double sided printed circuit board. The sheet is then laminated using thermally conductive bonding material to the metal base. This extra routing layer results in components farther away from the heat-sink and reduced heat transfer so this construction is recommended only when necessary.


1 Product Name High quality Base 5630 Led Aluminum Pcb Board
2 Brand sunsoar
3 Layer 1-24 layers
4 Max Board Size 457x610mm
5 Min Board Thickness 4(layers)0.40mm/16mil
6 Min Line Width1 0.10mm/4mil
7 MinLine Spacing 0.10mm/4mil
8 Min Hole Size 0.20mm/8mil
9 PTH Wall Thickness 0.020mm/0.8mil
10 PTH dia tolerance ±0.05mm/±2mil
11 NPTH hole dia tolerence ±0.025mm/±1mil
12 Outline Tolence ±0.1mm/±4mil
13 S/M Pitch 0.08mm/3mil
14 Aspect ratio 10:1
15 PCB Wrap and Twist ≤0.7%
16 Electric Strength >1.3KV/mm
17 Peel Strength 1.4N/mm
18 Solder Mask Abrasion ≥6H
19 PCB Flammability 94V-0
20 Impedance Control ±5%

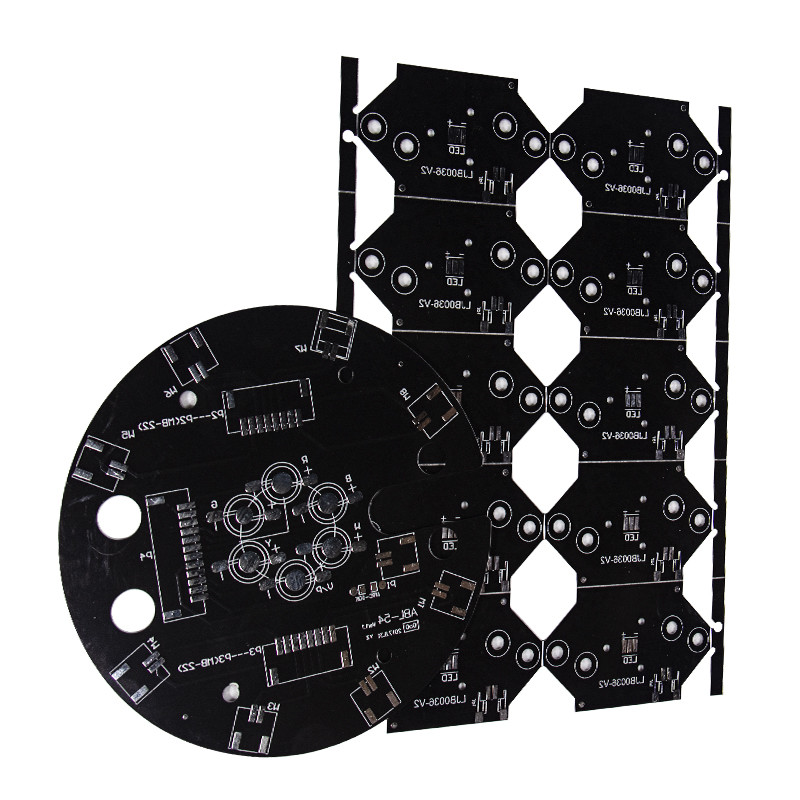

Single Sided Aluminum 94v0 PCB Circuit Board Good Heat Dissipation 0

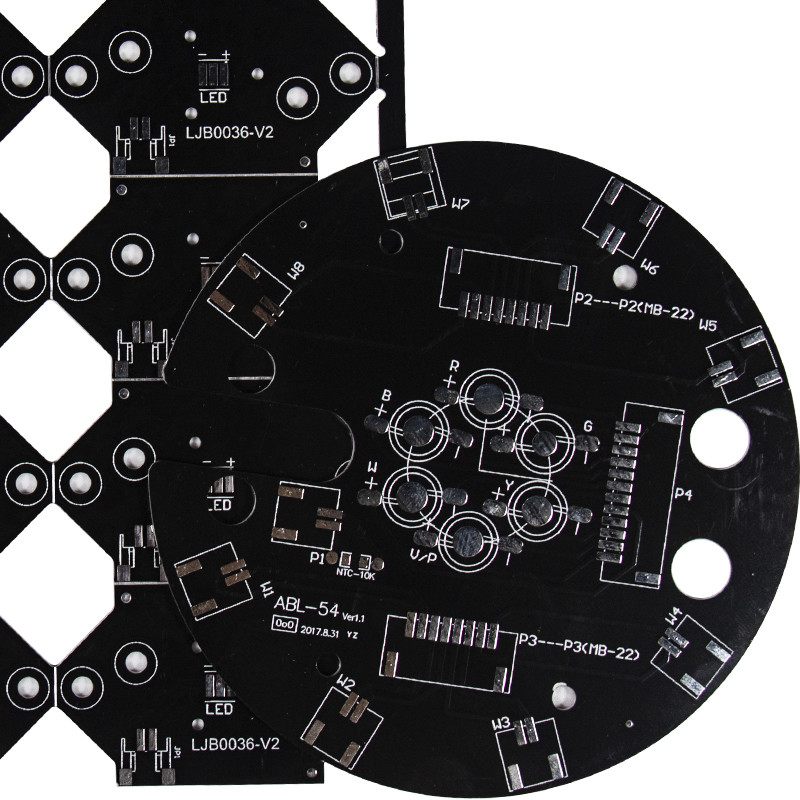

Single Sided Aluminum 94v0 PCB Circuit Board Good Heat Dissipation 1

Q1.  Are you a factory or trade company?

A:  We have our own PCB manufacturing & Assembly factory.


Q2:  Are all your products certified with UL, ROHS etc?

A:  Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA,  UL , SGS, ROHS.


Q3:  What service do you have?

A:  We are providing pcb fabrication, components purchasing, pcb assembly, complete assembly.
