Aluminium printed circuit board manufacturer for Led light pcb boards
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: pcb circuit board2
Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Base Material: Aluminum Circuit Board
Board Thickness: 1.0/1.2/1.6mm
Input Voltage: AC 220V
Certificate: ISO9001:2008,ROHS,UL
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing,
Surface Finishing: HASL Lead Free
Application: Industrial LED Light
Product Description

Aluminium printed circuit board manufacturer for Led light pcb boards




 Aluminumu PCB board(metal base PCB board: contains aluminum pcb,copper pcb,iron pcb) is a unique metal-based copper clad laminate,it has good thermal conductivity,electrical insulation and machining performance.
Aluminium PCB is one of metal-based pcb,including copper foil,thermal insulating layer and metal substrate,its structure divide into three layers:
1.  Circuit layer: the equivalent of an ordinary PCB,copper thickness from 1oz to 10oz.

2.  Insulation layer: Insulation is a layer of thermal insulating material with low thermal resistance.Thickness: 0.003 “to 0.006” inch is the aluminum pcb core technology.
3. Based Layer: a metal substrate,usually aluminum or copper may be chosen.
Features:
●  Use of surface mount technology (SMT);
●  The circuit design of the thermal diffusion of highly effective treatment;
●  Reduce product operating temperature,increase the power density and reliability,extended product life;
●  Smaller footprint,lower hardware and assembly costs;
●  Replace the fragile ceramic base pcb,better mechanical durability.
As an advocate to promote energy-saving lamps and colorful energy-saving LED lights are very popular by the market, the aluminum pcb used in LED lights have begun a large-scale applications.




If you have any questions about the aluminium pcb, please feel free to contact us  at anytime!





Aluminium printed circuit board
Layer
Single-side, Double Side
Board thickness
0.8, 1.0, 1.2, 1.5, 1.6, 2.0
Material
Aluminum plate
Silkscreen
White, Yellow, Black
Warranty
2 years
Base Material
Aluminum
Package
Vacuum Package

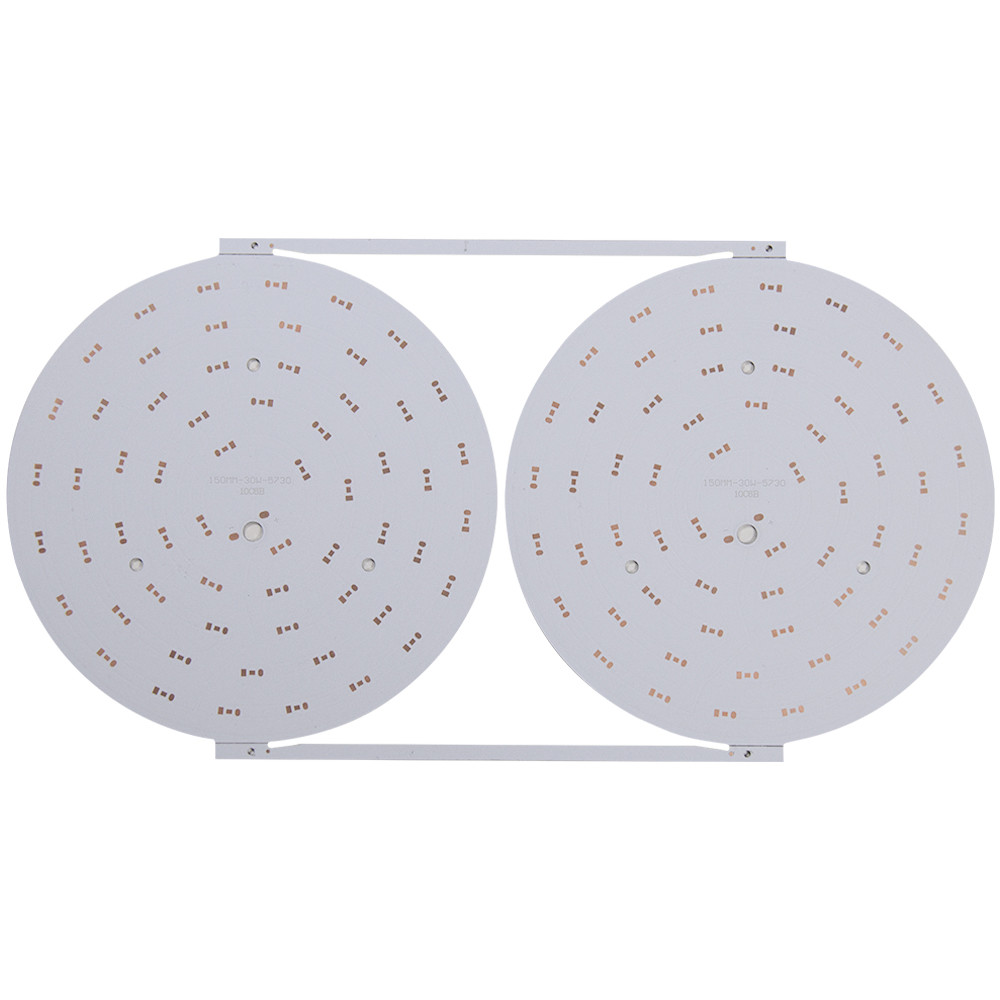

Aluminium printed circuit board manufacturer for Led light pcb boards 0

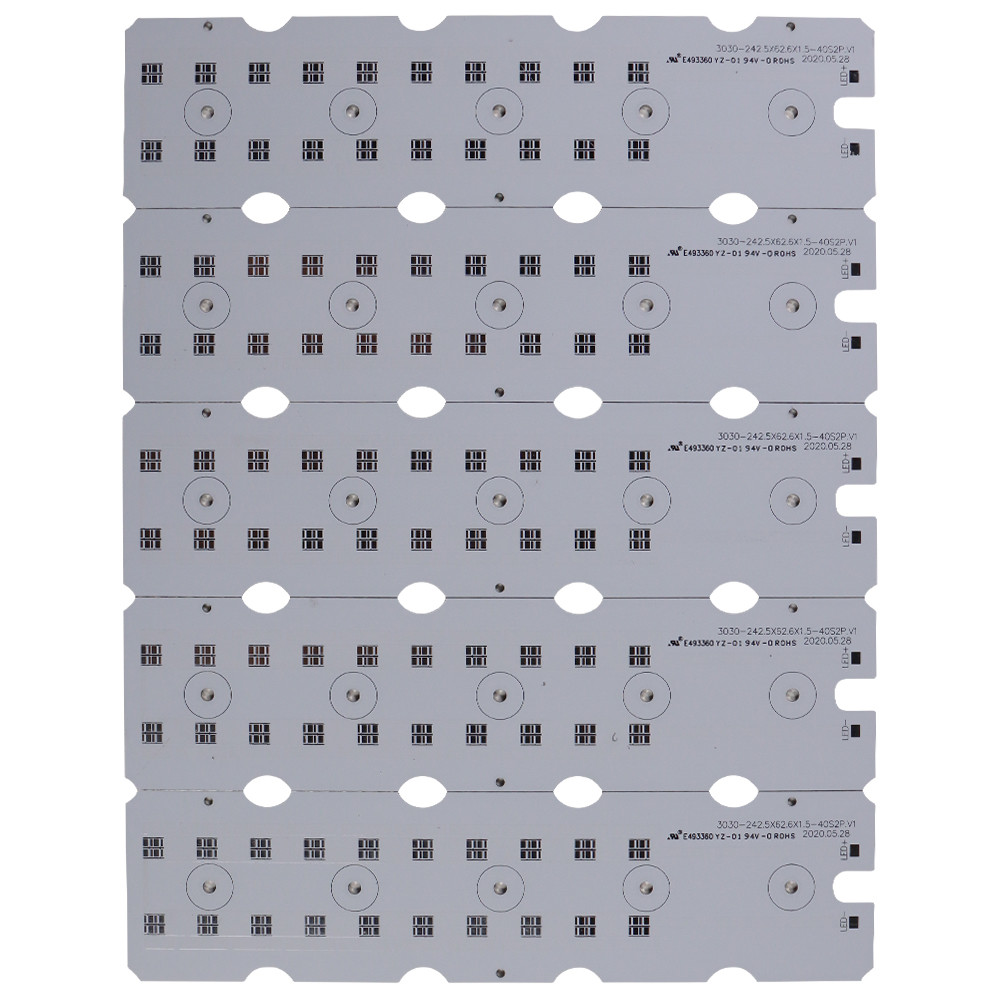

Aluminium printed circuit board manufacturer for Led light pcb boards 1

Shenzhen Yizhuo electronics Co.,Ltd is a high-tech enterprise. Since its establishment in 2012,

it has been committed to the innovative development and production of electronic products.

Now it has established a stable R&D team and it has had more than 5,000 square meters of production site.










FAQ:



Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.



Q2. How about your supply capacity?

A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.



Q3. Do you have any minimum order quantity (MOQ) requirement?
A: No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
