SMD 3030 LED Printed Circuit Board OEM HASLENIG OSP Surface Finishing
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Printed Circuit Board 06
High Light:

SMD 3030 LED Printed Circuit Board

,

HASLENIG LED Printed Circuit Board

,

MCPCB For LED Bulb

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
LED Type: SMD2835
Layer: Single Layer
Min. Line Spacing: 0.15mm
Voltage: 165-265V
Surface Finishing: OSP, HASLENIG OSP
Testing: Function Testing
Product Description

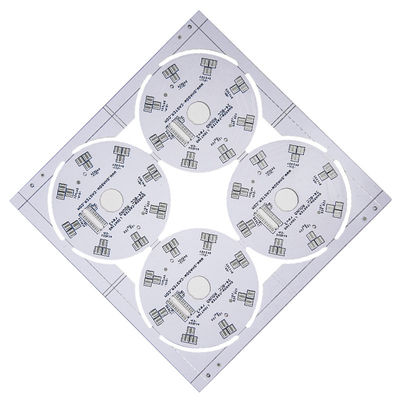

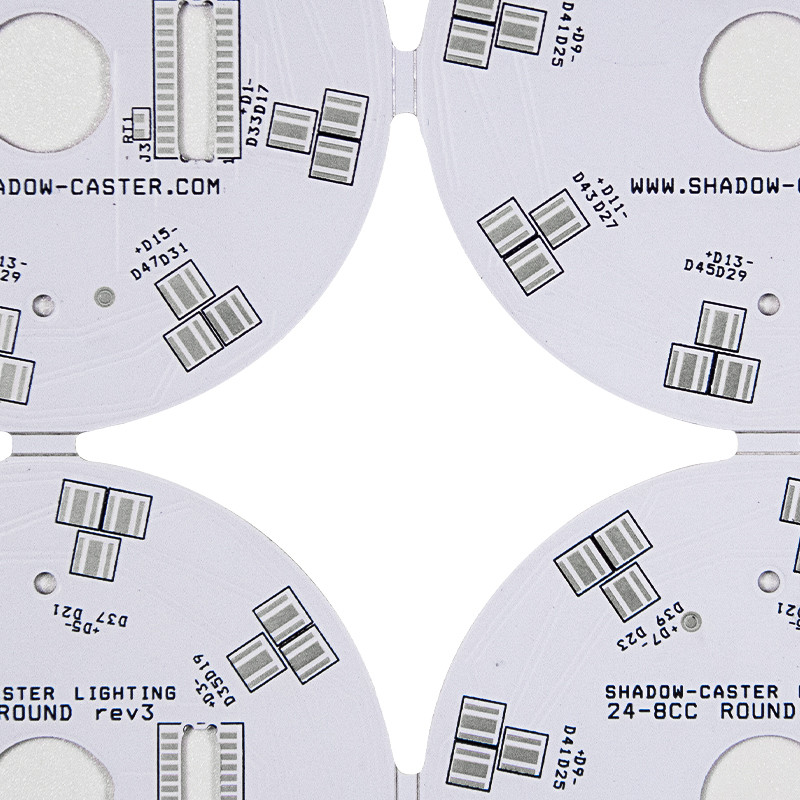

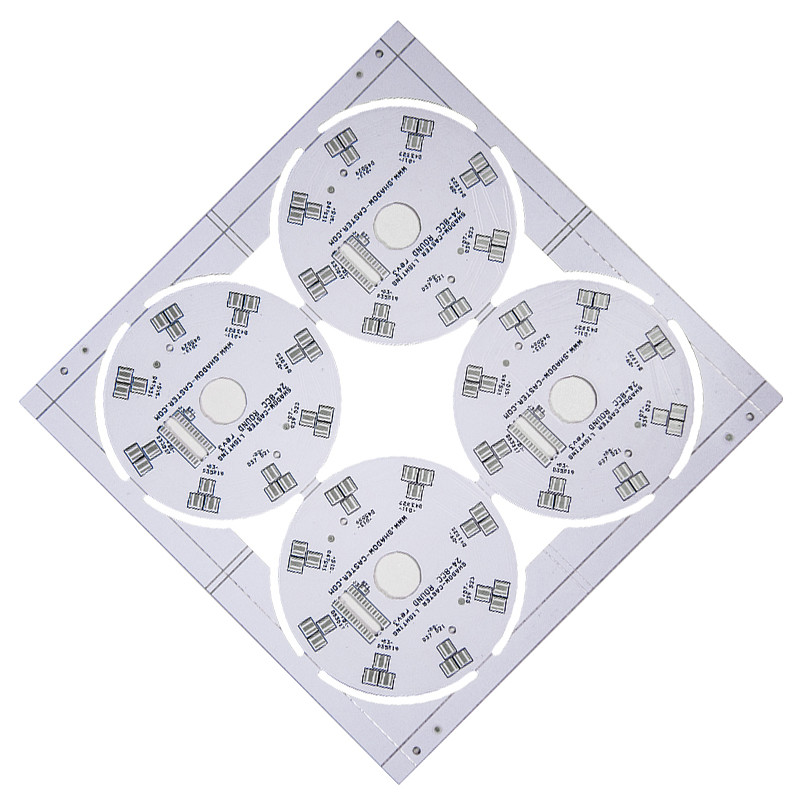

SMD 3030 LED Printed Circuit Board OEM HASLENIG OSP Surface Finishing



led driver circuit board 3030 Led Led Tube Light Mcpcb for light



Advantages of Aluminum PCBs:

Use of Aluminum PCBs offers several advantages over that of regular FR-4 PCBs. Compared to standard FR-4 constructions, the Aluminum PCBs offer a dramatically superior heat dissipation. Although only a tenth of the thickness of conventional epoxy-glass, the dielectrics in an Aluminum PCB can be 5 to 10 times more conductive thermally. This makes thermal management in Aluminum PCBs exponentially more efficient compared to that of a conventional rigid PCB. Therefore, designers can use lower copper weights in Aluminum PCBs than those suggested by IPC in their heat-rise charts.

Different Types of Aluminum PCBs
Manufacturers have been successful in innovating different types of Aluminum PCBs such as:

Flexible Aluminum PCBs: These use new flexible dielectrics featuring Polyimide resin systems with ceramic fillers for excellent electrical insulation, thermal conductivity, and flexibility. The metal base uses flexible Aluminum such as 5754 or similar. The combination produces a PCB that the user can bend into place, but not use for regular flexing.

Hybrid Aluminum PCBs: These use a non-thermal material as the sub-assembly, which the fabricator processes independently, and then bonds to the Aluminum base using thermal materials. For instance, a conventional 2- or 4-layer FR-4 PCB bonded to an Aluminum base helps to improve heat dissipation and mechanical rigidity



Product Type

Round Led Pcb Board

Maximum Panel size

20"*24" (1170mm*600mm)

Copper thickness

0.5oz, 1oz, 2oz, 3oz and 4 oz

Dielectric Thickness (to Substrate)

0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm

Finished Board Thickness

0.4mm To 4.0mm

Thickness Tolerance

+/-10%

Aluminum Machining

Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available

Min. Finish hole size

0.25mm

Max.working voltage

2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric)

Min.Track Width

0.2mm (8mils)

Min.Track gap

0.2mm (8mils)

Min. SMD pad pitch

0.2mm (8mils)

Surface Finishing

HASL, HASL Leadfree, Immersion gold, Flash gold, OSP

Soldermask color

White, Black, others Available

Legend color

Black, White, others Available



Aluminium PCB are widely used in LED lighting with good thermal conductivities. We provide great material with high thermal conductivities to make sure stable and long life for the led product and power supplier project.

Features:

  • IPC 6013 types 1, 2, & 3

  • 1-4 layers capabilities

  • 1W-300W/mk thermal conductivity

  • High standard LED super white solder mask.
