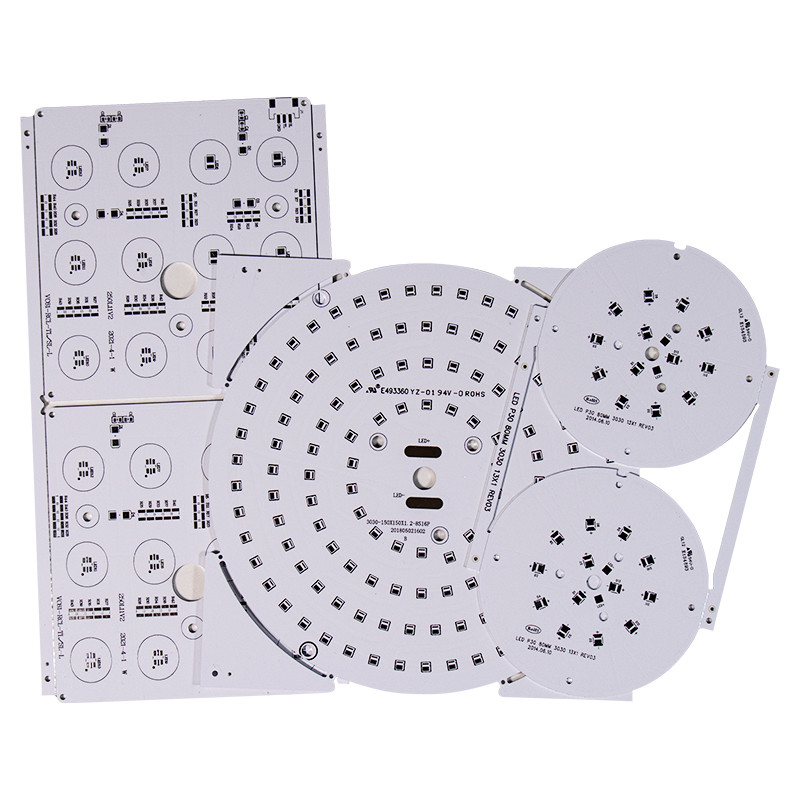

Copper Thick 1oZ 2oZ 3oZ LED Printed Circuit Board Fixturer Testing
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
High Light:

3oZ LED Printed Circuit Board

,

1oZ LED Printed Circuit Board

,

Copper 3oZ LED PCB Assembly

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union, MoneyGram
Specifications
Base Material: Aluminum Base
Copper Thickness: 1oZ 2oZ 3oZ
Peelable: 0.3-0.5mm
Profiling Punching: Routing, V-CUT, Beveling
Service: One-stop Service
Material: Aluminum Single Side Board
Testing: Fixturer Testing Jig/flying Testing
Product Description

Copper Thick 1oZ 2oZ 3oZ LED Printed Circuit Board Fixturer Testing



Led Pcb Boards Led Design Led Lighting Controller Led Lighting Industry



What is an SMD LED PCB Board?

SMD stands for Surface Mount Device. Surface mount technology (SMT) has almost replaced the through-hole technology. However, through-hole technology is still used for the components that cannot be surface mounted. Therefore, Surface Mount LED PCB is very popular
SMDs are compact components that can be directly placed over the PCB. There is no need for a hole because the components do not have leads or might have small leads. There are only small contacts at the ends of the device that are used to make connections. Consequently, the PCBA is very compact. SMDs are soldered using reflow soldering. At first, the solder paste is applied to the bare board. Then, the components are picked and placed in the desired place. Finally, the board is passed through a reflow oven, and the components are directly mounted without any hassle.
An SMD LED PCB board contains SMD LEDs that are more compact than their through-hole equivalents. SMD LEDs are widely used nowadays. They provide higher lumen output, which improves the level of illuminance in the area. They are more efficient and brighter. This is the reason SMD LED PCB boards are preferred.





LAYER

PROTOTYPE

MASS PRODUCTION (above 20 m2)

Quick Turn

Standard Time

MC PCB

48 hours

4-5 days

10-12 days

PFC 1 L

48 hours

5-6 days

12-13 days

1L

24 hours

3-4 days

8-10 days

2L

24 hours

3-4 days

8-10 days

4L

48 hours

5-6 days

8-10 days

6L

72 hours

6-7 days

10-12 days

8L

72 hours

7-8 days

12-14 days

10L

96 hours

9-10days

16-18 days

Copper Thick 1oZ 2oZ 3oZ LED Printed Circuit Board Fixturer Testing 0


Copper Thick 1oZ 2oZ 3oZ LED Printed Circuit Board Fixturer Testing 1



FAQ:

Q1. How about your supply capacity?

A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.



Q2: Are all your products certified with UL, ROHS etc?

A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.



Q3: Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample
