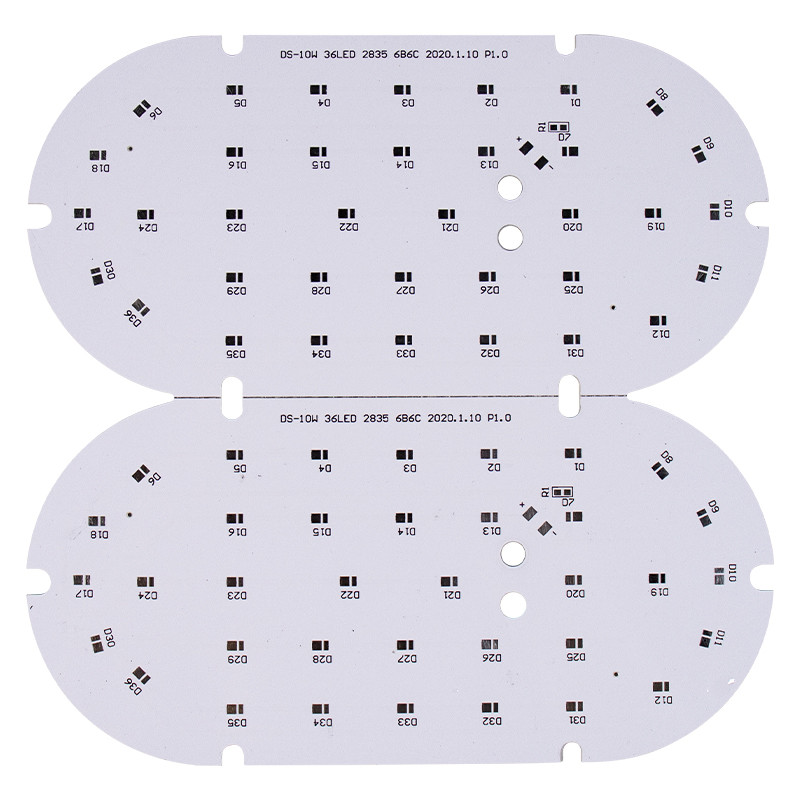

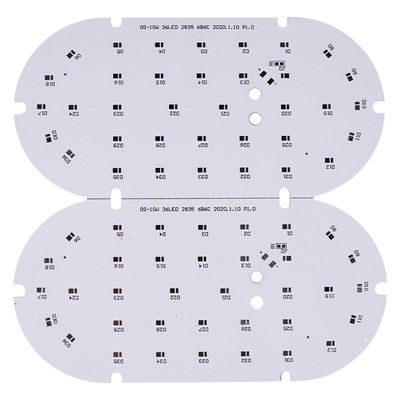

Single side LED Driver OSP Printed Circuit Board For LED Lights
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
High Light:

2OZ LED Driver Circuit Board

,

OSP Printed Circuit Board For LED Lights

,

2OZ LED Driver Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union, MoneyGram
Specifications
Base Material: Aluminum Base
Copper Thickness: 1/2OZ
Peelable: 0.3-0.5mm
Profiling Punching: Routing, V-CUT, Beveling
Silk Screen: White,black,yellow
Material: Aluminum Single Side Board
Surface: OSP
Product Description

Single Side LED Driver OSP Printed Circuit Board For LED Lights



Circuit Technology Led Design Led Lighting Controller Led Lighting Industry



LED Circuit Board Materials

An LED PCB is a metal core PCB, which uses metal as the base material, such as Aluminum, Iron, or Copper. In most cases, LED PCBs are Aluminum PCBs. Aluminum is mostly used for the fabrication of LED PCBs because it is cheap and lightweight as compared to other metals. Thus, we can say, an LED PCB is similar to an Aluminum PCB.

Aluminum LED PCB comprises three layers. These layers are the copper layer, dielectric layer, and aluminum base layer. The topmost layer is the copper layer, which makes the electrical connections in the PCB. This layer is standard in all types of PCBs. For the protection of this layer, a surface finish is used. Copper provides excellent conductivity and completes the circuit.

The next layer is the dielectric layer, which is very important in metal core PCBs. This dielectric layer serves as an insulator, and it prevents the flow of current in the base aluminum layer. The layer has excellent thermal conductivity, which is good for heat dissipation.

The last layer of the PCB is the base layer, which is made of Aluminum. This layer makes the board unique and provides it a separate identity. Due to the base layer, the PCB is more durable than FR-4. It can withstand wear and tear and high temperatures. Moreover, it is excellent for heat dissipation. It’s lighter than copper and iron.
