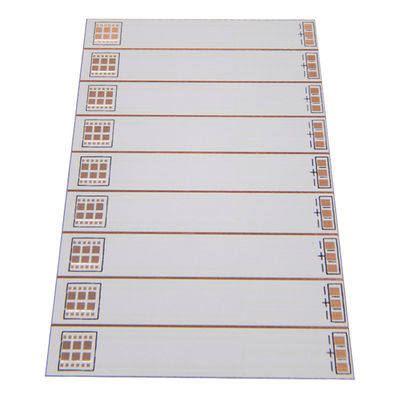

Custom SMD LED PCB Board 5730 5630 2835 3014 4014 3030 5050 RGB LED for Downlight Floodlight Ceiling Lamp
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Brand Name: Yizhuo
Base Material: Aluminum Base
Copper Thickness: 1/2OZ
Peelable: 0.3-0.5mm
Profiling Punching: Routing, V-CUT, Beveling
Service: One-stop Service
Product Description

Custom SMD LED PCB Board 5730 5630 2835 3014 4014 3030 5050 RGB LED for Downlight Floodlight Ceiling Lamp

Description:

We offer a variety of LED PCB products. High-power LEDs for aluminum-based PCBs, copper-based PCBs, ceramic-based PCBs, low-power LEDs for FR4 PCBs, high-temperature PCBs. Due to the good heat dissipation performance of aluminum-based PCBs, the most commonly used high-power LED products are aluminum-based PCBs.
Custom SMD LED PCB Board 5730 5630 2835 3014 4014 3030 5050 RGB LED for Downlight Floodlight Ceiling Lamp 0
We can provide different solder mask options for your LED PCB. We have developed a lot of Led PCB solder mask lumens to provide better brightness for your Led lamps.

Led pcb board assembly is a metal-based copper clad laminate with good heat dissipation. Generally, a single panel consists of a three-layer structure, which is a circuit layer (copper foil), an insulating layer and a metal base layer. Also used for high-end use is designed as a double panel, the structure is circuit layer, insulation layer, aluminum base, insulation layer, circuit layer. A very small number of applications are multi-layer boards, which can be made of ordinary multi-layer boards combined with an insulating layer and an aluminum base.


Custom SMD LED PCB Board 5730 5630 2835 3014 4014 3030 5050 RGB LED for Downlight Floodlight Ceiling Lamp 1



LAYERPROTOTYPEMASS PRODUCTION (above 20 m2)
Quick TurnStandard Time
MC PCB48 hours4-5 days10-12 days
PFC 1 L48 hours5-6 days12-13 days
1L24 hours3-4 days8-10 days
2L24 hours3-4 days8-10 days
4L48 hours5-6 days8-10 days
6L72 hours6-7 days10-12 days
8L72 hours7-8 days12-14 days
10L96 hours9-10days16-18 days





One-stop Service Include




PCB PrototypeQuick Turn PCBSingle-Sided PCB
Double-Sided PCBMultilayer PCBRigid PCB
Flexible PCBRigid-Flex PCBLED PCB
Aluminum PCBMetal Core PCBThick Copper PCB
HDI PCBBGA PCBHigh TG PCB
PCB StencilImpedance Control PCBPCB Assembly
High-Frequency PCBBluetooth Circuit BoardAutomotive PCB
USB Circuit BoardHalogen-Free PCBAntenna PCB
