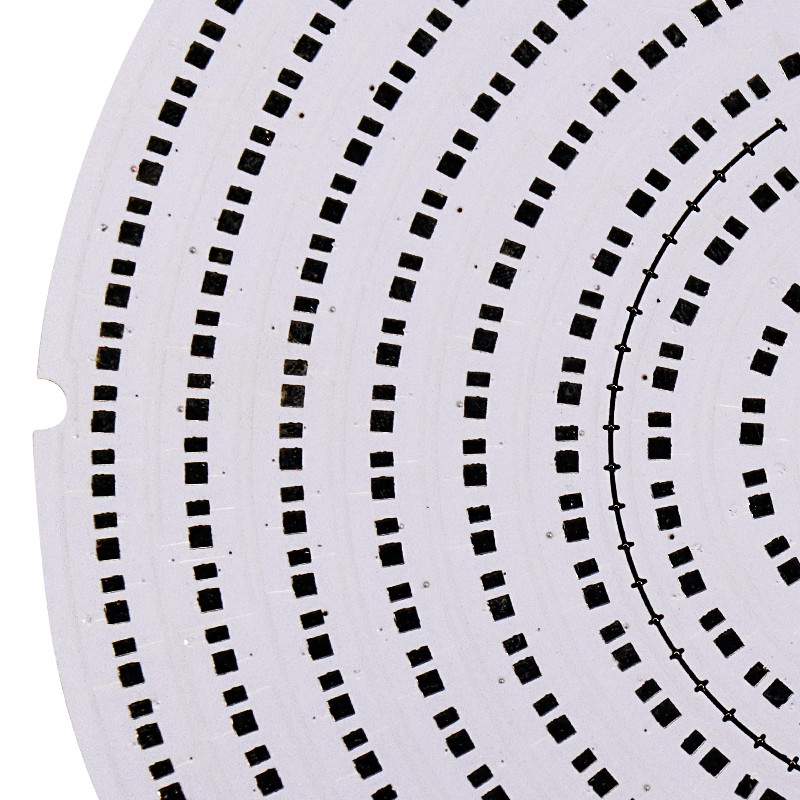

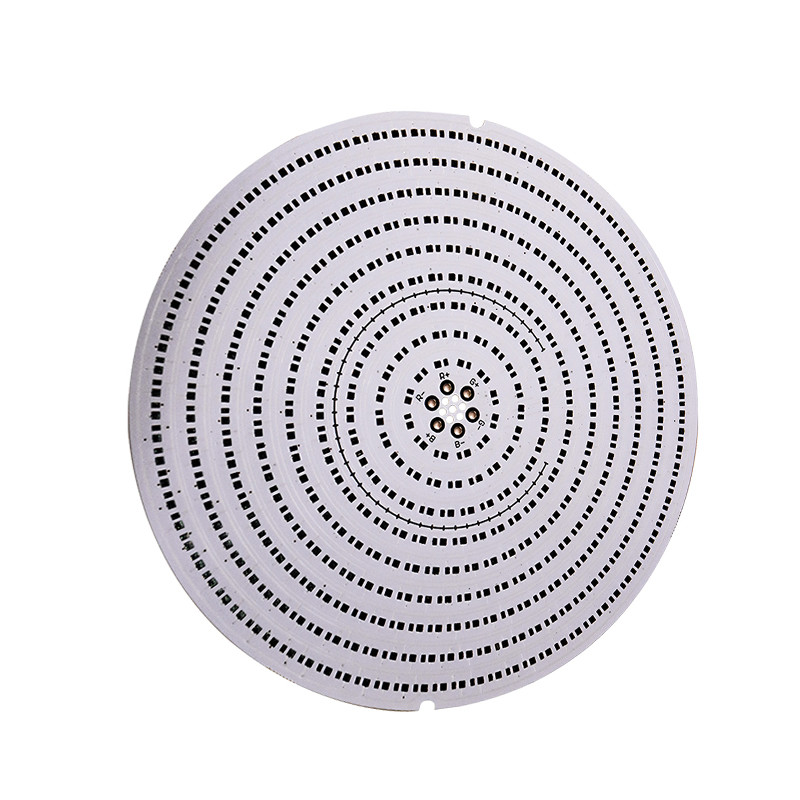

Aluminum SMD2835 Metal Base PCB Single Layer For Commercial Light
Led Pcb Board Aluminum T80 Bulb Pcb Circuit Board Used For Led Light
Aluminium PCB Metal Base Layer
Usually, considering the cost and technical characteristic, aluminium is the ideal choice. The available aluminum plates are 6061,5052,1060 etc. If there is a higher heat transfer performance, mechanical properties, electrical properties and other special performance requirements, copper, stainless steel plate, iron plate, silicon steel plate, etc can also be used.
Features
1. High quality products, Europoean and US standard
2. 3528 or 5050 SMD LED adopted,high brightness ,stable performance.
3. long lifetime,5% attenuation after 2500 hours,life time is 80000-100000 hours
4. Energy saving and environmental friendly.
5. 5m/rell is the standard package,but the size can be customized
6. Various of LED density optional, e.g.30LEDs/M,60LEDs/M,96LEDs/M. etc.
7. Each unit of 3LEDs can be cut out at regular segments.
8. White, warm white,red,green,blue and yellow color and RGB available.
|
Features |
Capability |
|---|---|
|
Quality Grade |
Standard IPC 2 |
|
Number of Layers |
1-4 layers |
|
Order Quantity |
1pc – 10000+pcs |
|
Lead Time |
3days – 5weeks |
|
Material |
Aluminum core (Domestic 1060), Copper core, FR4 covering |
|
Board Size |
Min 6*6mm | Max 610*610mm |
|
Board Thickness |
0.8mm – 5.0mm |
|
Copper Weight (Finished) |
0.5oz – 10.0oz |
|
Solder Mask Color |
Green, White, Blue, Black, Red, Yellow |
|
Silkscreen Color |
White, Black, Yellow |
|
Surface Finish |
HASL – Hot Air Solder Leveling |
|
Min Drilling Hole Diameter |
6mil |
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you have after-sales product servicing available for your customers?
A: Yes, for any quality problems Fulltronics will take our responsibility to solve it for you any time.
Q3: What about the transportation and delivery date?
A: Normally,we use international express(such as,Fedex,DHL,TNT) to deliver samples and small volume orders. For large mass order, we can arrange shipping by sea.
