SMD Heat Dissipation LED PCB Board For Indoor And Outdoor Lighting
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
High Light:

SMD Heat Dissipation LED PCB Board




3W LED Light PCB Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Brand Name: Yizhuo
Base Material: Aluminum Base
Copper Thickness: 1/2OZ
Peelable: 0.3-0.5mm
Profiling Punching: Routing, V-CUT, Beveling
Service: One-stop Service
Product Description

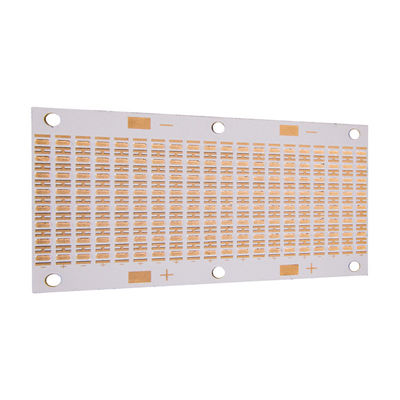

SMD Heat Dissipation LED PCB Board For Indoor And Outdoor Lighting


LED Bulb PCB Board for Multiple Scenes 3W SMD LED Light PCB Board Panel



This SMD LED circuit board is made with the most environmentally friendly materials in 2020 and the most professional production technology. It can meet daily lighting needs. In addition, we also produce strip light PCB, get a quote now!



Type: aluminum plate welded lamp module Power:3W/ 5W/ 7W/ 9W/ 12W/ 15W/ 18W/ 24W Chip Leds:6pcs/ 10pcs/ 14pcs/ 18pcs/ 24pcs/ 30pcs/ 36pcs/ 48pcs Chip Size(mm):32mm /40mm/50mm /50mm /65mm /65mm /85mm /85mm /120mm



(1) Easy installation does not require welding lamp beads

(2) Light-emitting more uniform, heat dissipation is better to reduce the light fades

(3) Purposes: to replace the downlight bulb, high power LED lights

(4) Ensure that the wire and LED welding temperature is below 85 degrees! Note: LED must be added with a radiator/cooling fan.



indoor and outdoor lighting, road lamp, flashlight, lighting, spotlights, buried lights


Quick Turn Standard Time
MC PCB 48 hours 4-5 days 10-12 days
PFC 1 L 48 hours 5-6 days 12-13 days
1L 24 hours 3-4 days 8-10 days
2L 24 hours 3-4 days 8-10 days
4L 48 hours 5-6 days 8-10 days
6L 72 hours 6-7 days 10-12 days
8L 72 hours 7-8 days 12-14 days
10L 96 hours 9-10days 16-18 days

SMD Heat Dissipation LED PCB Board For Indoor And Outdoor Lighting 0



Q1. What service can you supply ?
A: We are OEM PCB and PCBA manufacturer since 2012 ,we can provide one-stop solution including RD PCB fabrication,SMT and assembly PCBA.

Q2. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
