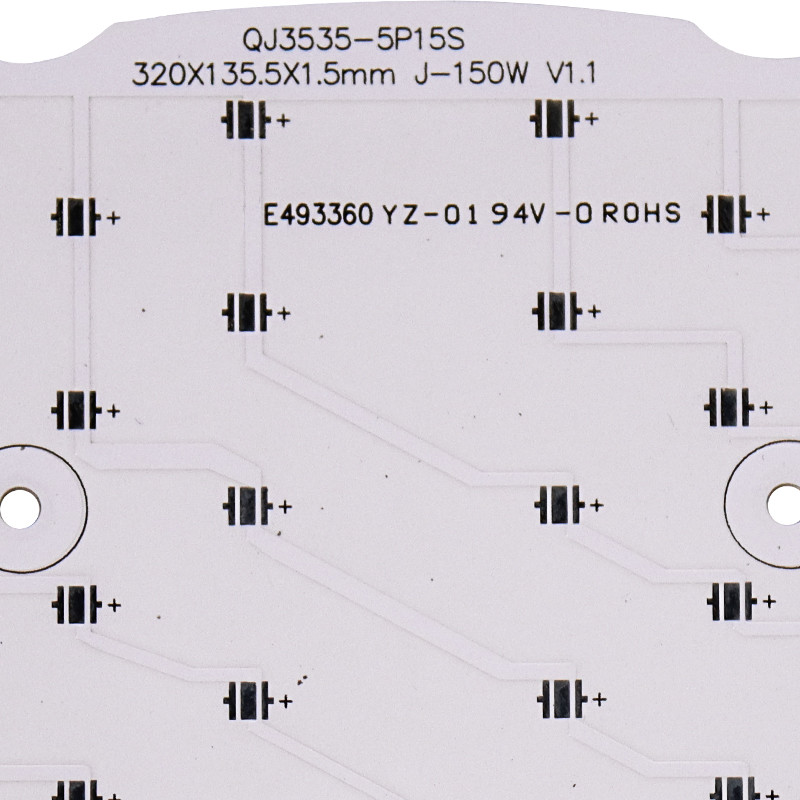

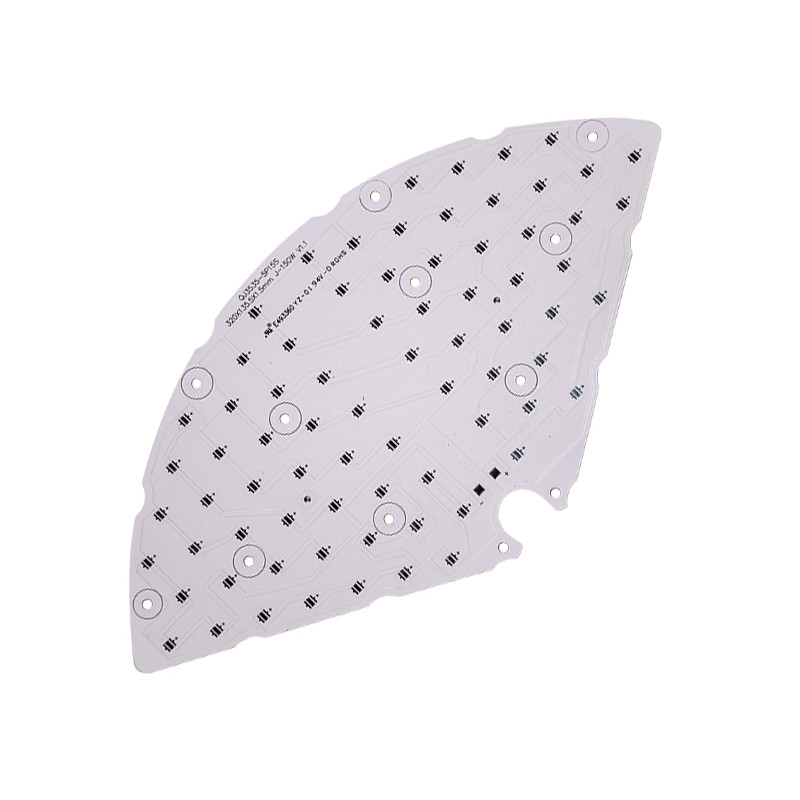

Single Side Aluminum 94V0 LED Strip PCB White Black Silkscreen
LED Strip Single Side Aluminum PCB Board 94-v0 led mcpcb for light
Aluminium PCB Stack Up details as the drawing.
1. Aluminium PCB Copper Traces Layer
The copper circuit (traces) layer is etched to form the printed circuit, Compared to FR4 material,
Aluminium PCB can bear higher electric current when same thick circuit layer and same trace width.
2. Aluminium PCB Dielectic Layer
The dielectic layer is the core technology of the Aluminium PCB, which mainly serves as the function of adhesion, insulation and heat conduction.
The better the thermal conductivity of insulation is, the quicker the components spread the heat when they work, which can realize the purpose like improving power loading of the modules,reducing volume, extending life span and increase the output power.
3. Aluminium PCB Metal Substrate Layer
Usually, considering the cost and technical characteristic, aluminium is the ideal choice. The available aluminum plates are 6061,5052,1060 etc.
|
SERIAL |
ITEM |
TECHNICAL DATA |
|
1 |
Product Name |
High quality Base 5630 Led Aluminum Pcb Board |
|
2 |
Brand |
sunsoar |
|
3 |
Layer |
1-24 layers |
|
4 |
Max Board Size |
457x610mm |
|
5 |
Min Board Thickness |
4(layers)0.40mm/16mil |
|
6(layers)0.80mm/32mil |
||
|
8(layers)1.00mm/40mil |
||
|
10(layers)1.20mm/48mil |
||
|
6 |
Min Line Width1 |
0.10mm/4mil |
|
7 |
MinLine Spacing |
0.10mm/4mil |
|
8 |
Min Hole Size |
0.20mm/8mil |
|
9 |
PTH Wall Thickness |
0.020mm/0.8mil |
|
10 |
PTH dia tolerance |
±0.05mm/±2mil |
|
11 |
NPTH hole dia tolerence |
±0.025mm/±1mil |
|
12 |
Outline Tolence |
±0.1mm/±4mil |
|
13 |
S/M Pitch |
0.08mm/3mil |
|
14 |
Aspect ratio |
10:1 |
|
15 |
PCB Wrap and Twist |
≤0.7% |
|
16 |
Electric Strength |
>1.3KV/mm |
|
17 |
Peel Strength |
1.4N/mm |
|
18 |
Solder Mask Abrasion |
≥6H |
|
19 |
PCB Flammability |
94V-0 |
|
20 |
Impedance Control |
±5% |
FAQ:
Q1. Are you a factory or trade company?
A: We have our own PCB manufacturing & Assembly factory.
Q2: Are all your products certified with UL, ROHS etc?
A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.
Q3: What service do you have?
A: We are providing pcb fabrication, components purchasing, pcb assembly, complete assembly.
