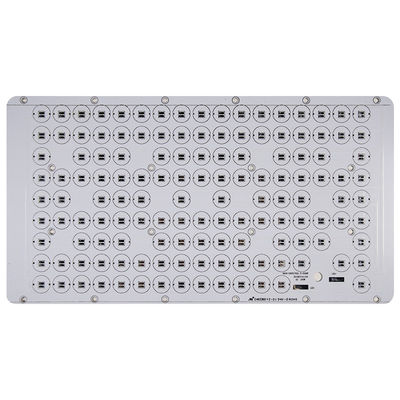

CE ROHS UL 24w PCB LED Board Immersion Gold 94V0 Circuit Board
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Led Board Circuit Board
High Light:

24w PCB LED Board


94V0 PCB LED Board


24w 94V0 Circuit Board

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Product Name: Led Board Circuit Board
CCT: 3000-3200k/ 600-6500k
Silk Screen: White,black,yellow
Electrical Testing: Fixture / Flying Probe
Hole Tolerance: PTH: ±0.075, NTPH: ±0.05
Surface Finishes: OSP, HASL, HASL Lf, Immersion Gold, Etc.
Product Description

CE ROHS UL 24w PCB LED Board Immersion Gold 94V0 Circuit Board


24w Pcb Led Board 94v0 Circuit Board Led Lights for T5 T8 Pcb


Product Description
●  24w pcb led board is an ideal lighting system for the new energy saving led bulb. The led bulb made by new aluminum pcb for led compared with the traditional tungsten filament lamp or flash bulb is more efficient. 24w led bulb will have the same lighting result with the 38w traditional lamp. It can save a lot of electricity.
●  led printed circuit board is more efficient, if it can be powered by new energy, such as the sun, to make the solar light system. As led solar street light, led solar garden light, led solar wall light, led solar flood light and so on.
●  The inside or outside led driver is needed for this pcb led board
●  pcb led board is ideal components for led light, such as household led panel light, led ceiling light, led wall light, led down light, and led spotlight and so on. It can power by any energy you can think out to save the electricity.
●  pcb led board Available in 3W, 5W, 7W, 9W, 12W, 15W, 18W, 24W, 30W etc.
●  pcb led board Available in many size, such as 23mm, 26mm, 32mm, 40mm, 44mm, 47mm, 50mm, 56mm, 58mm, 65mm, 78mm, 80mm, 85mm, 90mm, 100mm, 120mm, 135mm, 145mm, etc.
Products features:
1.  Unique pcb led board, departed with led driver, so that easy to fixed if one of them is broken down and with good heat dissipation.
2.  Size and Watt are flexible, it is customized.
3.  Much longer life span and stable working performance. Hardly any maintenance cost is needed.


Monthly capability
1-14 Layers
Board material
FR-4 Tg130-Tg180/ FR-4 CTI175 / FR-4 CTI300/CEM-1/CEM-3
Surface treatment
HASL / RoHS-HASL / Immersion gold / Plating gold / Gold fingers / OSP
Solder mask colour
Green / Blue / Red / Black / Yellow / White
Silk screen colour
White, Black, Yellow
V-cut dept tolerance: +/-0.1mm
Technical Specification
Min line width/space: 0.075/0.075mm
Min PTH copper thickness: 20um
Min hole diameter: 0.2mm
Min pad ring: 0.1mm
UL certified max copper thickness: 6oz)
Via plugging capacity: 0.2-0.6mm

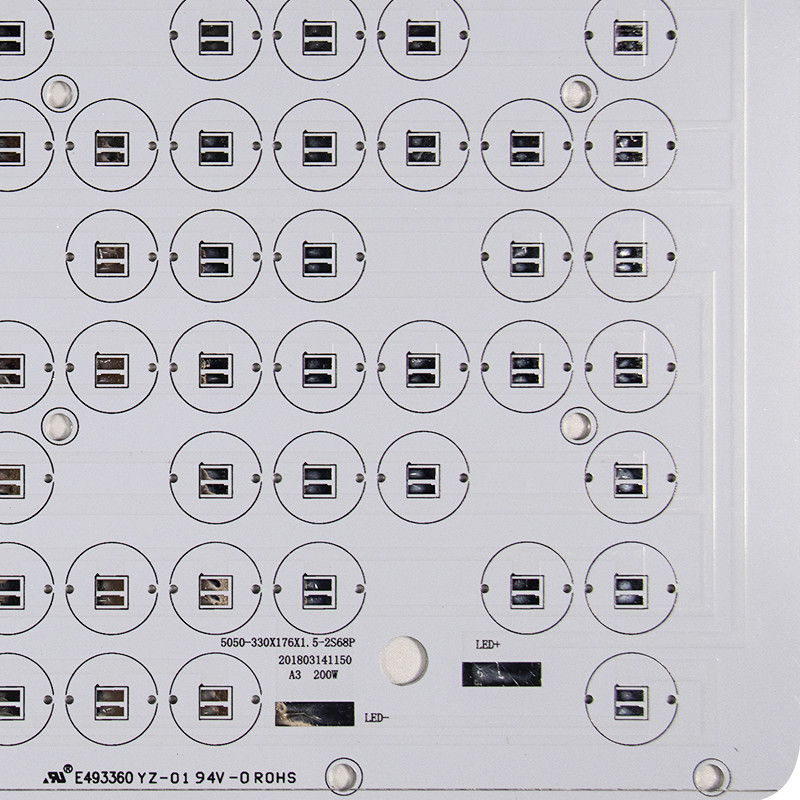

CE ROHS UL 24w PCB LED Board Immersion Gold 94V0 Circuit Board 0

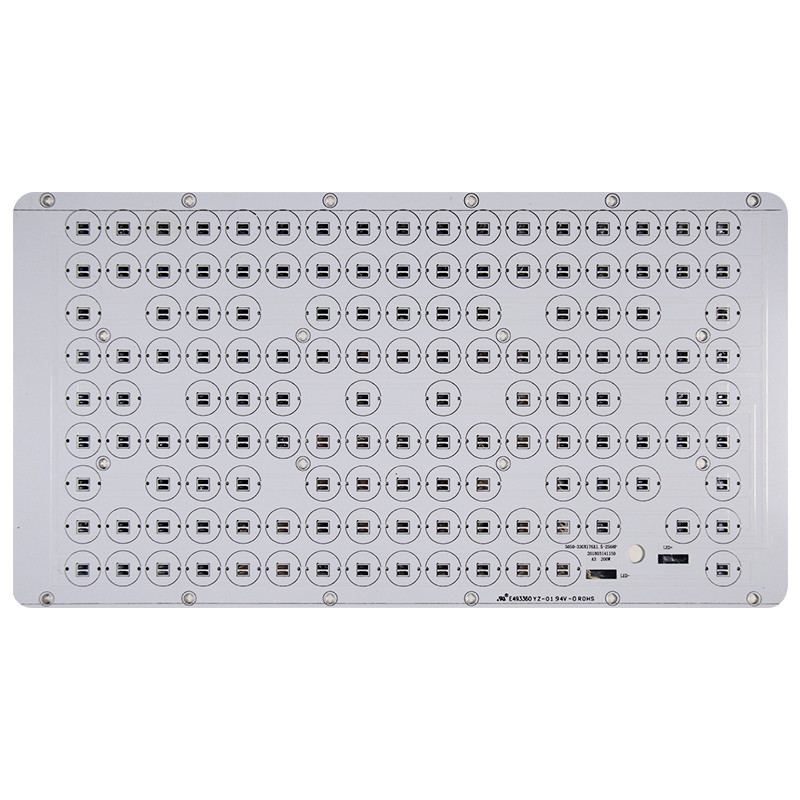

CE ROHS UL 24w PCB LED Board Immersion Gold 94V0 Circuit Board 1
Q1.  Is it OK to print my logo on product?

A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q2:  Are all your products certified with UL, ROHS etc?
A:  Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA,  UL , SGS, ROHS.
Q3:  How to deal with the faulty?
A:  Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the guarantee period, if it's our fault, we will repair them and resend to you or we can discuss the detail, and find the final solution.
