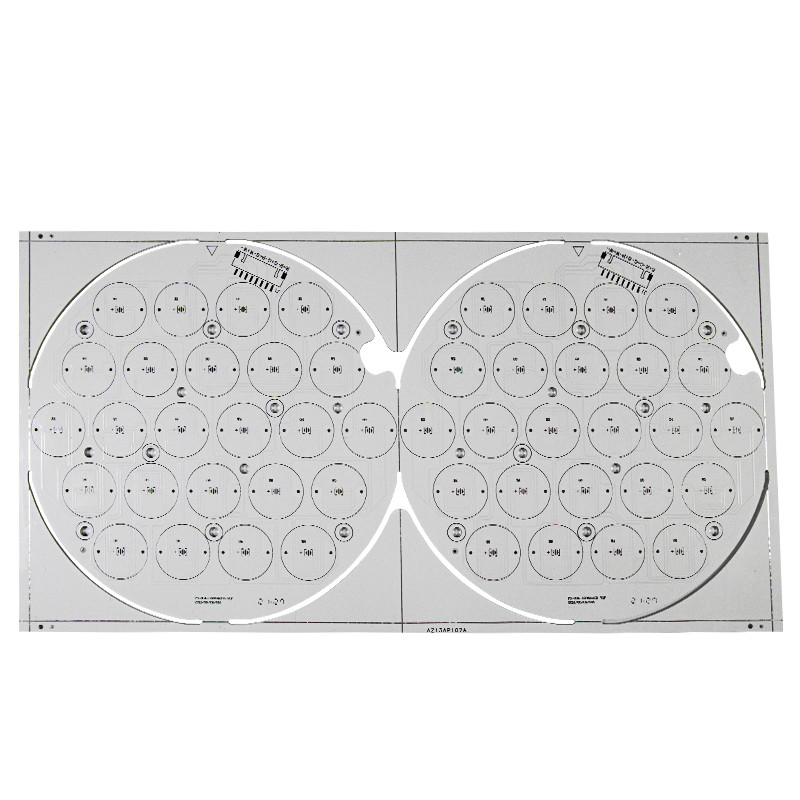

Round PCB 150mm SMD LED PCB Board FOR 100 Watt 3030 Lighting
Round SMD LED PCB Board Dia 150mm 100 Watt SMD 3030 Led 2 Years Warranty
Aluminum PC is one type of metal core printed circuit board (MCPCB), widely be used in LED lighting industry.
If you are looking for Aluminum PCB Manufacturer, Yizhuo has rich experience in manufacturing Aluminium PCB with high thermal conductivity , we offers a first class service and extensive high-tech options.
MCPCB, Metal Core PCB, thermal PCB – whichever name you prefer, they are all boards which use a base metal material as the heat spreader portion of the circuit board.These types of are typically fabricated with a metal base consisting of aluminum (most common) but can also be produced with copper.
|
No. |
Item |
Mass Production |
Prototype |
|
1 |
Layers |
1-8 Layers |
1-36 Layers |
|
2 |
Max. Panel Size |
600*770mm( 23.62″*30.31″) |
600*770mm(23.62″*30.31″) 500*1200mm(19.69″*47.24″) |
|
3 |
Max.Board Thickness |
8.5mm |
8.5mm |
|
4 |
Min. Board Thickness |
2L:0.3mm, |
2L:0.2mm, |
|
5 |
Min Inner Layer Clearance |
0.1mm(4mil) |
0.1mm(4mil) |
|
6 |
Min Line width |
0.075mm(3/3 mil) |
0.075mm(3/3 mil) |
|
7 |
Min Line space |
0.075mm(3/3 mil) |
0.075mm(3/3 mil) |
|
8 |
Min.Hole Size |
0.15mm(6mil) |
0.15mm(6mil) |
|
9 |
Min plated hole thickness |
20um(0.8mil) |
20um(0.8mil) |
|
10 |
Min Blind/Buried hole size |
0.1mm(4mil) |
0.1mm(1-8layers)(4mil) |
|
11 |
PTH Dia. Tolerance |
±0.076mm(±3mil) |
±0.076mm(±3mil) |
|
12 |
Non PTH Dia. Tolerance |
±0.05mm(±2mil) |
±0.05mm(±2mil) |
|
13 |
Hole Position Deviation |
±0.05mm(±2mil) |
±0.05mm(±2mil) |
Applications of Aluminum PCB:
General lighting applications (Streetlight , Flashlight, Spotlight, etc.)
Back light unit applications
System automotive LED applications
Power converters: telecom, high voltage regulator, power supplies
Hybrid/electric motor control applications
Photovoltaic
FAQ:
Q1. What is needed for PCB PCBA quotation?
A: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
Q2: Are all your products certified with UL, ROHS etc?
A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.
Q3: How long is the lead time?
A: For samples, it will take 5-7 work days; for bulk orders, it will take 10-15 word days.
