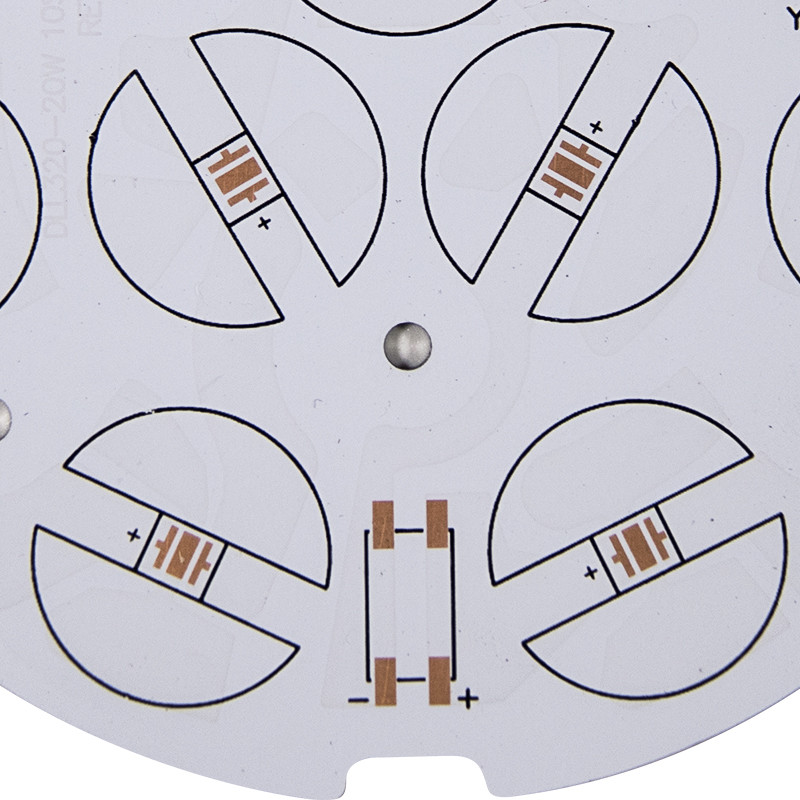

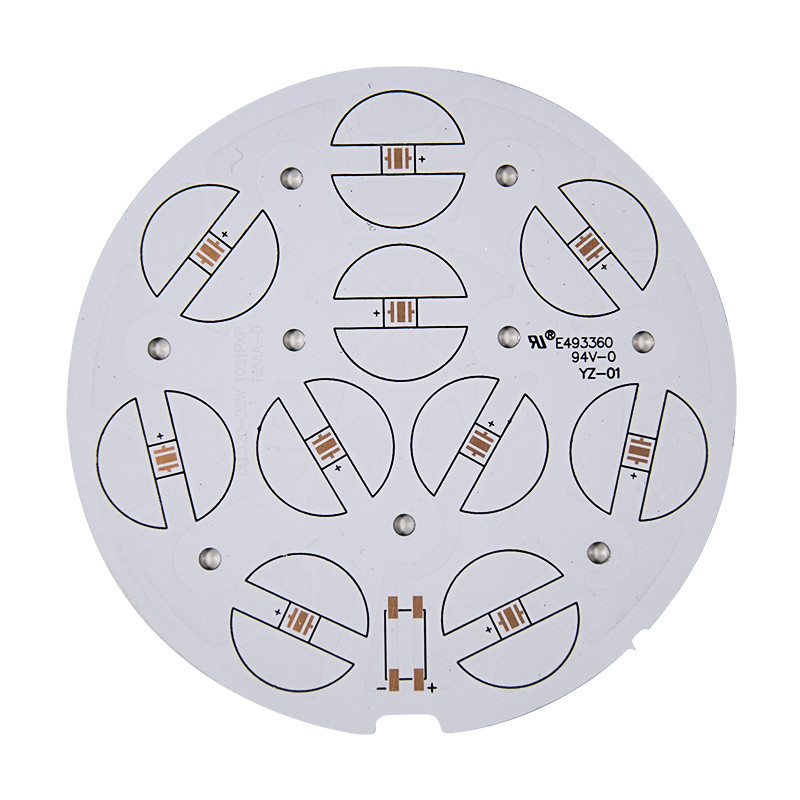

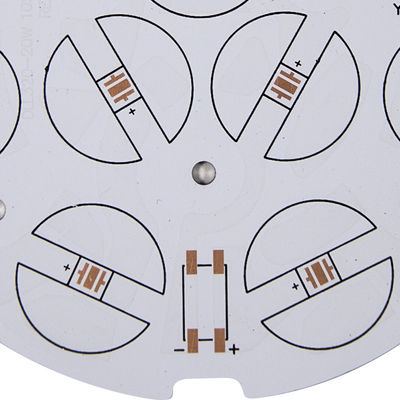

Aluminum Lightweight ISO SMT LED Bulb PCB Board Dimensional Stability
Led light board pcb circuit boards manufacturer led aluminum pcb
The advantages of LED PCB:
With the electronic products is more and more smaller and thinner, making it popular to use LED PCB, and there are various advantages with using LED PCB as follows:
· Lightweight, low profile
· dimensional stability
· thermal expansion
· heat dissipation
· Lower cost backlit membrane switch
· Dust and moisture resistant
· Make it easy to integrate into complex interface assemblies
· Efficient low power consumption
· Available in a wide variety of sizes, colors, and intensities
· May be used in silver flex membrane switches and copper flex membrane switches.
SMT and Thru-hole, ISO SMT and DIP lines
Prototype: 15 work days. Mass order: 20~25 work days
Testing on products
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Min quantity: 1pcs. Prototype, small order, mass order, all OK
PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel Size
Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type
Water Soluble Solder Paste, RoHS lead free
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Cut Tape,Tube,Reels,Loose Parts
PCB assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
Q1. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation
Q2: Are all your products certified with UL, ROHS etc?
A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.
Q3: How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
