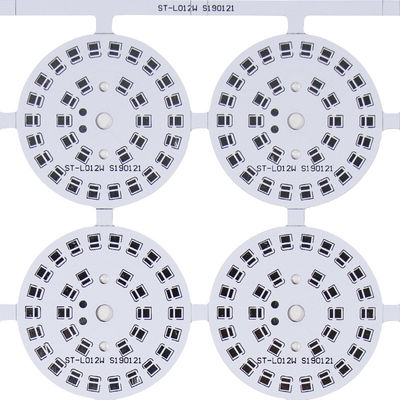

SMD 5630 3030 Chip LED Light Bar Circuit Board CE ROHS UL Approved
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Led PCB 05
High Light:

3030 Chip LED Light Bar Circuit Board

,

SMD 5630 LED Bar PCB

,

5630 Chip LED Light Bar Circuit Board

Payment & Shipping Terms
Packaging Details: Inner vacuum packing,Outer standard carton box packing.
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Product Name: Led Pcb Board
Material: Aluminum Base
Soldermask Color: Green/ White/ Black/ Blue/ Yellow
Certificate: ISO9001:2008,ROHS
Profiling Punching: Routing, V-CUT, Beveling
Application: Electronics Device
Product Description

SMD 5630 3030 Chip LED Light Bar Circuit Board CE ROHS UL Approved



LED PCB Aluminum ROHS UL SMD 5630 3030 chips PCB boards for LED bars​



SMD LED PCB Board Description:

1. Best raw materials used in our LED production : 1)Chip: Bridge lux chip or Epistar 45MIL chip; 2) Silicon glue: USA Dow corning (good glue has less lighting decreasing); 3) Powder: USA Intermatix (good powder has better performance in lumens);4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;5) Led base:red/ black cooper base (for better thermal conductive/ disspation) .

2. Super high Flux output and high Luminance, Designed for high current operation, Low thermal resistance, SMT solder technology , Lead Free product, ROHS compliant

3. We have many kind of color for your choice like : Warm white , Natural white , Cool white , Red , Blue , Green , Yellow .etc.

4.  Accept the small order and 2 years warranty .



Material

Aluminum Base

Layers

Single layer

Soldermask

white soldermask

Circuit

1B12C

Breads type

2835 leds

Panel way

4*5 pcs in one panel

Routing

CNC and molding

Application

DOB Bulb light, inddor lighting

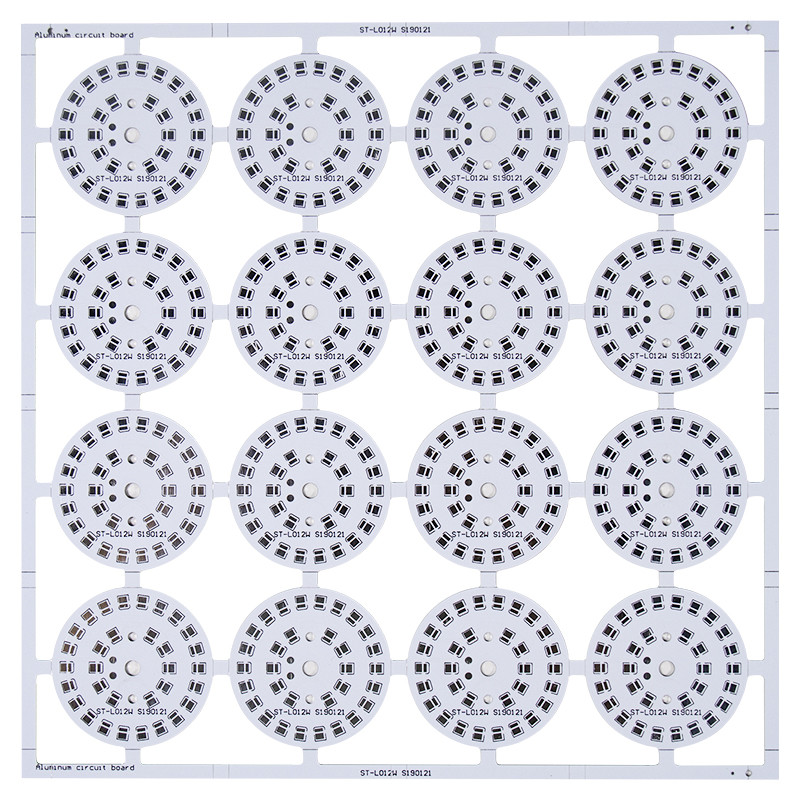

SMD 5630 3030 Chip LED Light Bar Circuit Board CE ROHS UL Approved 0





SMD LED PCB Board Applications:

–  General Illumination

–  Outdoor & Indoor architectural lighting

–  Decorative lighting

–  Flood lighting, cast light lamps

–  Steet lamp, Tunnel lamp

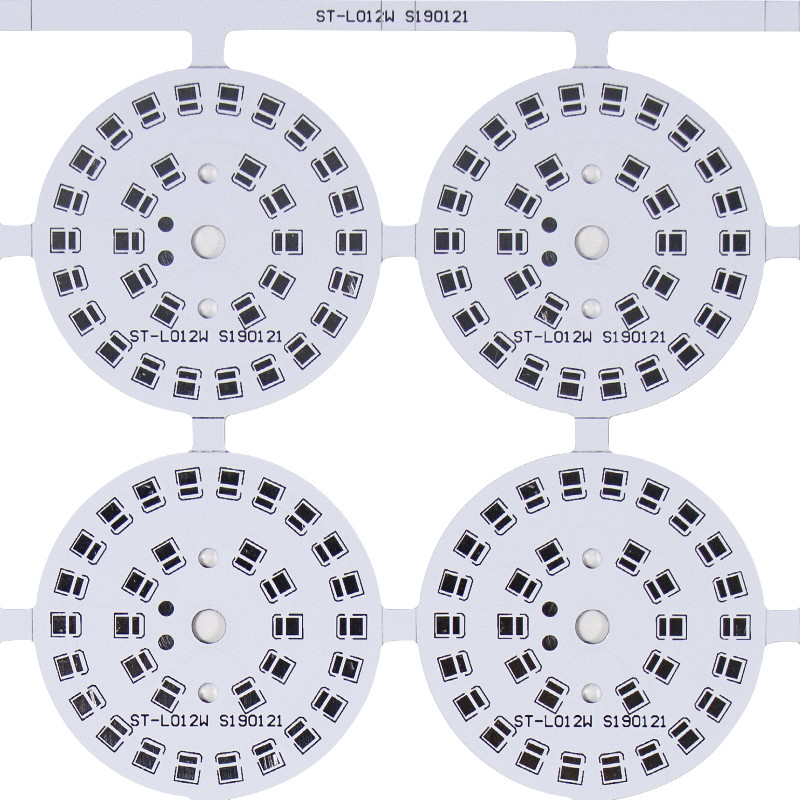

SMD 5630 3030 Chip LED Light Bar Circuit Board CE ROHS UL Approved 1


FAQ:

Q1.  What is needed for PCB PCBA quotation?

A:  Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)



Q2:  Are all your products certified with UL, ROHS etc?

A:  Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA,  UL , SGS, ROHS.



Q3:  Is it OK to print my logo on product?

A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
