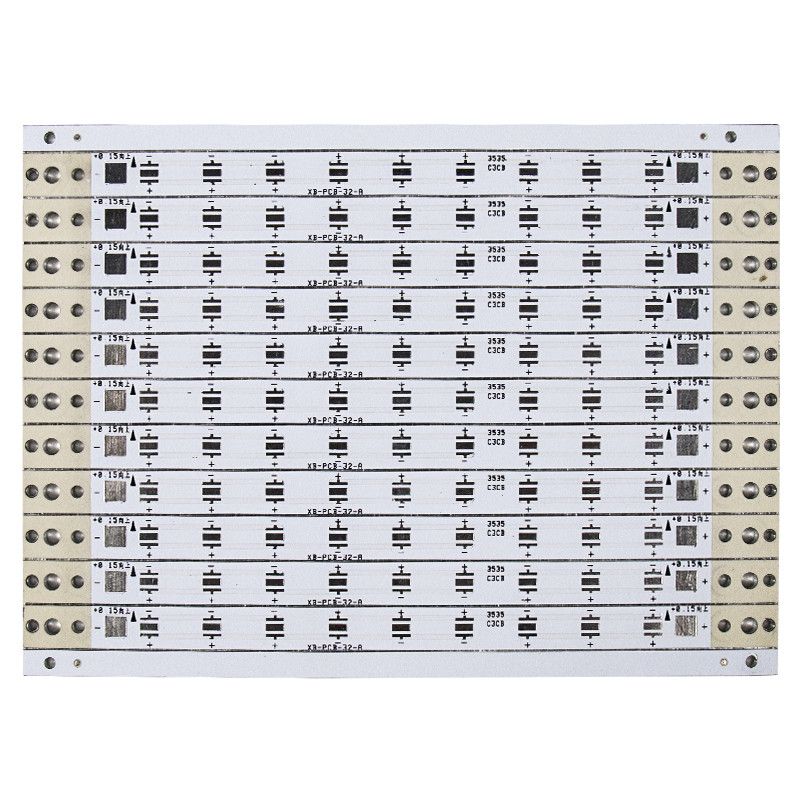

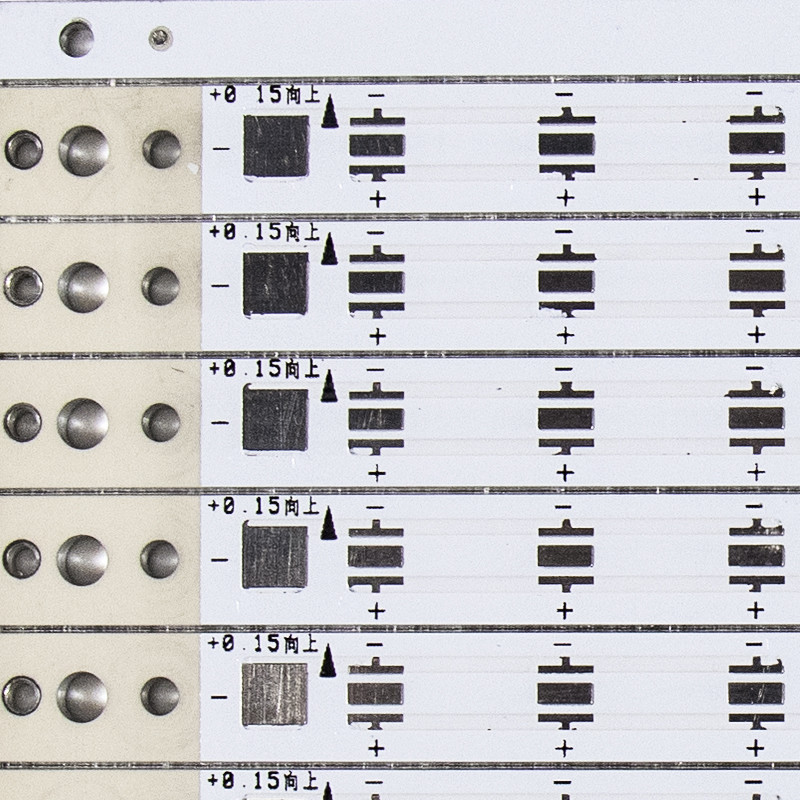

Copper Thick 1OZ 2OZ 3OZ LED PCB Board Lightweight Board Metal Base
Led Ceiling Aluminum pcb 94v-0 Aluminum Led Bulb Board Metal Base PCB
Advantages of Aluminum PCB:
Aluminum boards are one of the most thermally conductive PCB options. They keep as much heat away from vital components as possible to ensure minimal circuit damage. Thanks to their high heat tolerance, they can handle higher density circuits and larger power levels. Substrates created from aluminum alloys have a high level of physical durability that lowers the risk of breakage. Compared to other metals, aluminum has a lower environmental impact in addition to a reasonable cost.
1. Low Cost: Aluminum is a metal that can be found in a variety of climates, so it is easy to mine and refine. Therefore, the costs of doing so are significantly lower than other metals. In turn, this means that manufacturing products with these metals are less expensive as well.
2. Environmentally Friendly: Aluminum is non-toxic and recyclable. Manufacturing with aluminum is also conducive to conserving energy due to its ease of assembly. For printed circuit board suppliers, using this metal helps maintain the health of our planet.
3. Heat Dissipation: High temperatures can cause severe damage to electronics, so it is wise to use a material that can help dissipate heat. Aluminum can actually transfer heat away from vital components, thus minimizing the harmful effect it could have on the circuit board.
4. Higher Durability: Aluminum provides strength and durability to a product that ceramic or fiberglass bases cannot. Aluminum is a sturdy base material that can reduce accidental breakage during manufacturing, handling, and everyday use.
5. Lightweight: For its incredible durability, aluminum is a surprisingly lightweight metal. Aluminum adds strength and resilience without adding on any additional weight.
|
PCBA Capabilities
|
|
|
Turnkey PCBA
|
PCB+components sourcing+assembly+package
|
|
Assembly details
|
SMT and Thru-hole, ISO SMT and DIP lines
|
|
Lead Time
|
Prototype: 15 work days. Mass order: 20~25 work days
|
|
Testing on products
|
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
|
|
Quantity
|
Min quantity: 1pcs. Prototype, small order, mass order, all OK
|
|
Files needed
|
PCB: Gerber files(CAM, PCB, PCBDOC)
|
|
Components: Bill of Materials(BOM list)
|
|
|
Assembly: Pick-N-Place file
|
|
|
PCB Panel Size
|
Min size: 0.25*0.25 inches(6*6mm)
|
|
Max size: 20*20 inches(500*500mm)
|
|
|
PCB Solder Type
|
Water Soluble Solder Paste, RoHS lead free
|
|
Components details
|
Passive Down to 0201 size
|
|
BGA and VFBGA
|
|
|
Leadless Chip Carriers/CSP
|
|
|
Double-sided SMT Assembly
|
|
|
Fine Pitch to 0.8mils
|
|
|
BGA Repair and Reball
|
|
|
Part Removal and Replacement
|
|
|
Component package
|
Cut Tape,Tube,Reels,Loose Parts
|
|
PCB assembly process
|
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
FAQ:
Q1. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q2: Are all your products certified with UL, ROHS etc?
A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.
Q3: Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
