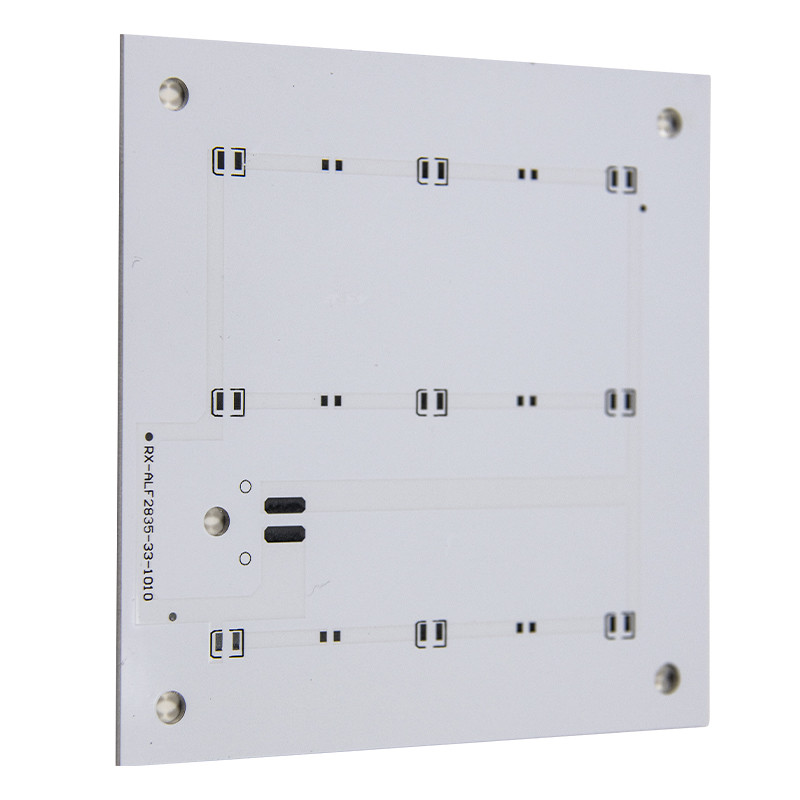

Name: Thick 0.2mm 4.0mm LED Printed Circuit Board HASL Falsh Gold Surface
Brand: Yizhuo
SKU: Aluminum Pcb Board 01

Features Gallery Product Description Request A Quote

Features

Basic Infomation

Place of Origin: China

Brand Name: Yizhuo

Certification: CE,ROHS,UL

Model Number: Aluminum Pcb Board 01

High Light:

4.0mm LED Printed Circuit Board

0.2mm LED Printed Circuit Board

4.0mm LED Light PCB Board

Payment & Shipping Terms

Packaging Details: Vacuum Package+ Good quality carton box

Delivery Time: 10-12 work days

Payment Terms: T/T, Western Union, MoneyGram

Specifications

Board Thickness: 0.2-4.0mm

Copper Thickness: 1/2OZ

Peelable: 0.3-0.5mm

Profiling Punching: Routing, V-CUT, Beveling

Service: One-stop Service

Material: Aluminum Single Side Board

Finished Surface: HASL.Lead-free HASL.Falsh Gold, ENIG(Immersion Gold). OSP, Lmmersion Tin.lmmersion Silver,Hard Gold

Gallery

Product Description

Thick 0.2mm 4.0mm LED Printed Circuit Board HASL Falsh Gold Surface

Led Lighting Pcb Board And Their Applications In The Led Lighting Industry

They are Largely Resistant to Dust & Moisture

While this is not an absolute per se, it is in comparison to the more traditional forms of circuits and lighting sources, far more resistant and durable.

This makes LED PCBs an excellent pick for both general-purpose as well as heavy-duty applications. More specifically, they make for ideal outdoor use, where there is frequent exposure to both dust and moisture, on an almost regular basis.

In addition to this, the construction can be made further durable, through the design of proper protection, sealing systems, safety features, and more, all of which can help to extend its resistance to the elements.

ITEM	Capability
Layers	1-2
Thicker Copper	1-6OZ
Products Type	HF(High-Frequency)&(Radio Frequency) board, lmpedance controlled board. HDl board.BGA& Fine Pitch board
Solder Mask	Nanya&Taiyo; LPl & Mattgreen,yellow,white,blue,black,red.
Base material	FR4(Shengyi China, ITEQ, KBA+,HZ), Hl-TG. FR06,Rogers Taconic, Argon, Nalco, lsola, aluminum and so on
Finished Surface	HASL.Lead-free HASL.Falsh Gold, ENIG(Immersion Gold). OSP, lmmersion Tin.lmmersion Silver,Hard Gold
Technical Specification	Minimum line width/gap:3.5/4mll(laserdrill) Minimum hole size:0.2mm(mechanical drill)/4mil(laser drill) Minimum Annular Ring: 4mil Max Copper thickness: 60Z Board Thickness:D/S: 0.2-4.0mm. Multilayers:0.40-4.0mm, Min Solder Mask Bridge:0.08mm Aspect ratio: 8: 1 Plugging Vias capability: 0.2-0.8mm

One-stop Service Include

PCB Prototype	Quick Turn PCB	Single-Sided PCB
Double-Sided PCB	Multilayer PCB	Rigid PCB
Flexible PCB	Rigid-Flex PCB	LED PCB
Aluminum PCB	Metal Core PCB	Thick Copper PCB
HDI PCB	BGA PCB	High TG PCB
PCB Stencil	Impedance Control PCB	PCB Assembly
High-Frequency PCB	Bluetooth Circuit Board	Automotive PCB
USB Circuit Board	Halogen-Free PCB	Antenna PCB

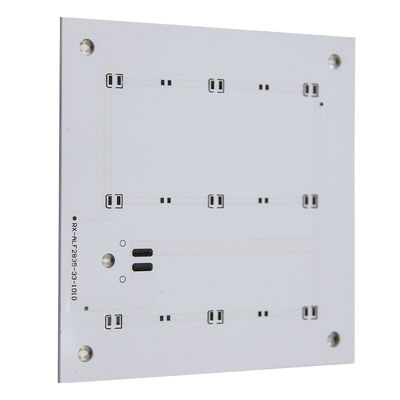

Thick 0.2mm 4.0mm LED Printed Circuit Board HASL Falsh Gold Surface 1
