Thick 0.2mm 7.0mm Custom Circuit Board Assembly Electronic Components
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
High Light:

7.0mm Custom Circuit Board Assembly

,

0.2mm Custom Circuit Board Assembly

,

0.2mm Emergency Light Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union, MoneyGram
Specifications
Base Material: Aluminum Base
Copper Thickness: 1/2OZ
Finished Board Thickness: 0.2mm-7.0mm
Profiling Punching: Routing, V-CUT, Beveling
Service: One-stop Service
Material: Aluminum Single Side Board
Surface: OSP
Product Description

Thick 0.2mm 7.0mm Custom Circuit Board Assembly Electronic Components



Car Led Lighting Board And Their Applications In The Led Lighting Industry



PCB Functions

The role of the PCB is to support the electronic components and to ensure the electrical connections necessary for the operation of the system.

PCB cannot perform these functions alone, soldering is necessary to make the mechanical and electrical connections between the components and the tracks of the circuit.

From calculators and microwave ovens to cell phones and aircraft control systems, all electronic equipment used today involves the use of PCBs. These devices are printed circuit boards. Its purpose is, in a simplified way, to connect electrical components in an organized manner, since the logic that your circuit must exercise is already defined.

Planning is the keyword that defines the production of a PCB since its entire creation process is methodical. There is basically an exchange of debugging troubleshooting of your circuit for the previous logical organization of its components. That is, it is necessary to think very carefully about the connections and functions of each of the elements of your circuit before making it, with this, it is possible to not have problems of bad contact in the wiring.





LAYER

PROTOTYPE

MASS PRODUCTION (above 20 m2)

Quick Turn

Standard Time

MC PCB

48 hours

4-5 days

10-12 days

PFC 1 L

48 hours

5-6 days

12-13 days

1L

24 hours

3-4 days

8-10 days

2L

24 hours

3-4 days

8-10 days

4L

48 hours

5-6 days

8-10 days

6L

72 hours

6-7 days

10-12 days

8L

72 hours

7-8 days

12-14 days

10L

96 hours

9-10days

16-18 days

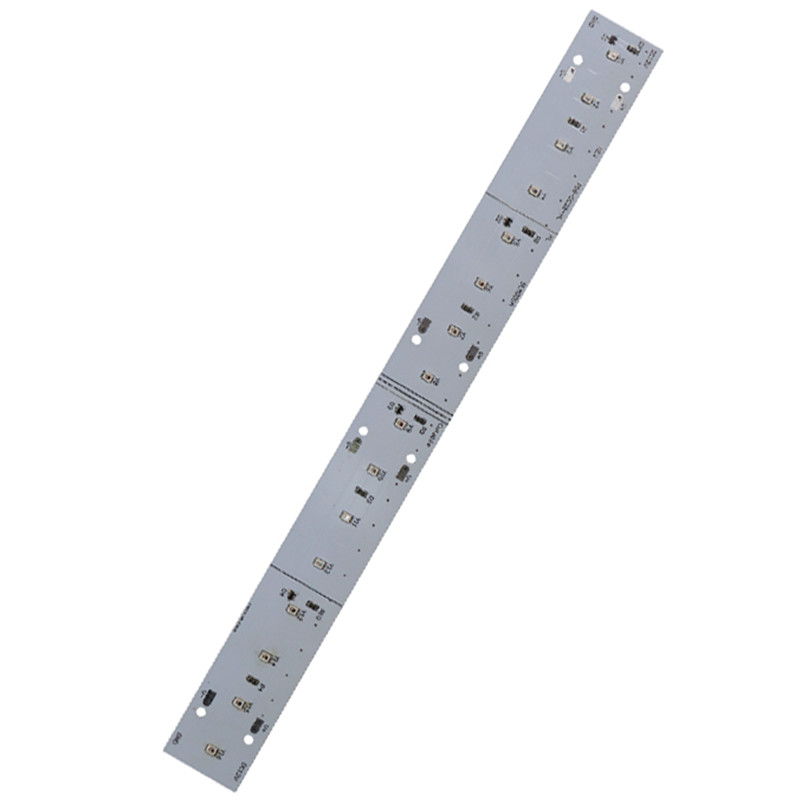

Thick 0.2mm 7.0mm Custom Circuit Board Assembly Electronic Components 0

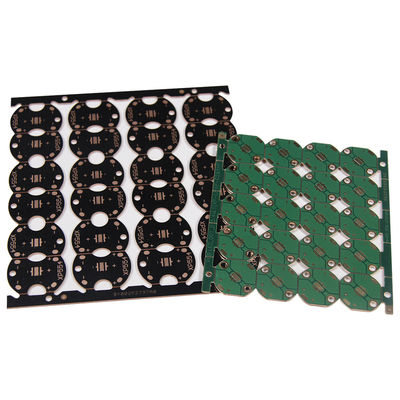

Thick 0.2mm 7.0mm Custom Circuit Board Assembly Electronic Components 1
