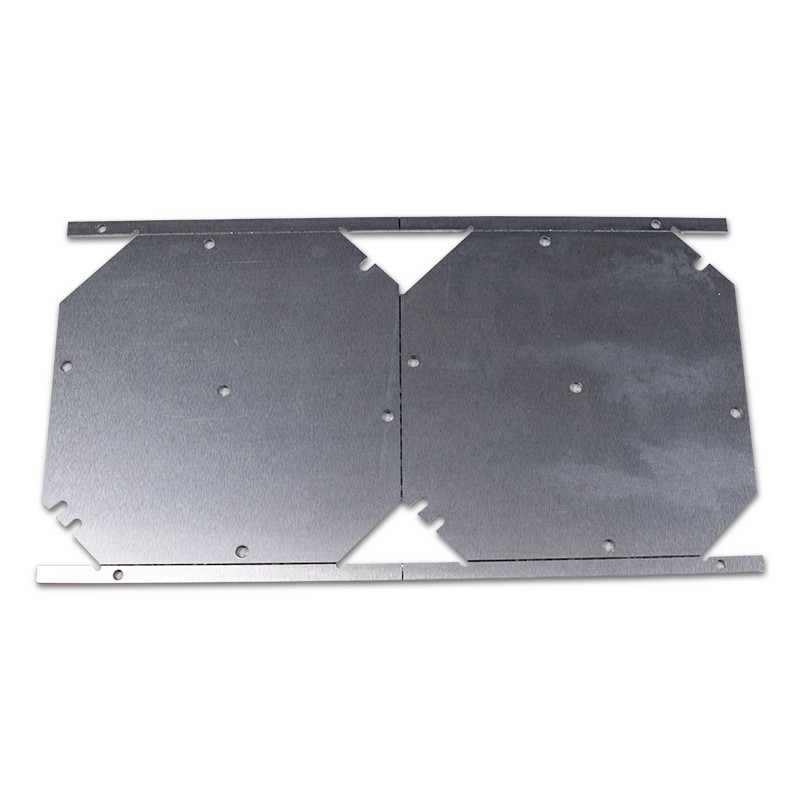

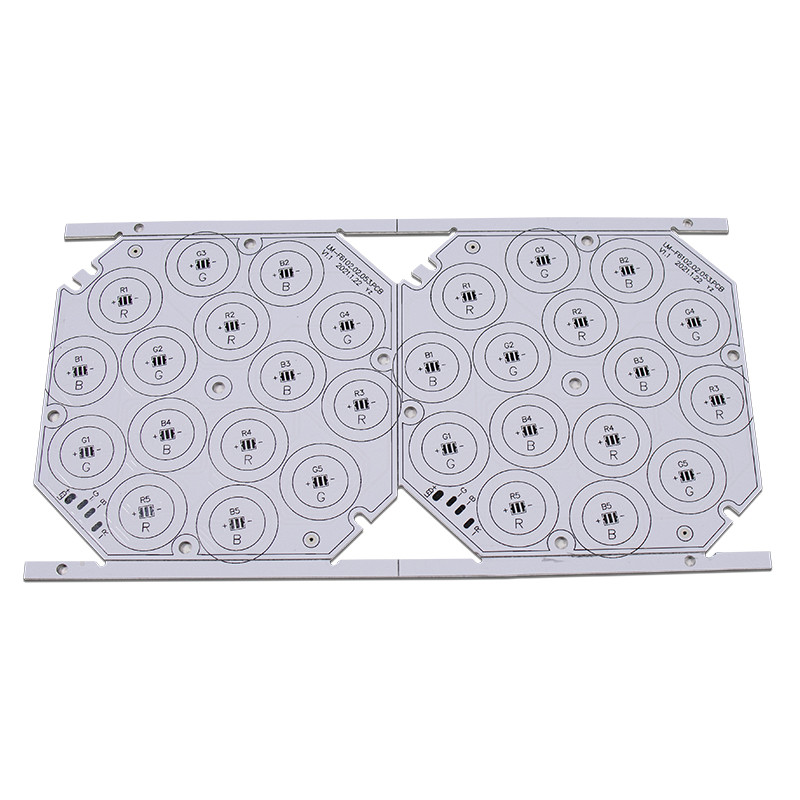

Multilayer Aluminum LED PCB Board For Downlight
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: OSP Aluminum pcb 02
High Light:

Multilayer LED PCB Board

,

Downlight LED PCB Board

,

Multilayer Aluminum Printed Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Layer: 1-2 Layers
Testing: Fixturer Testing Jig/flying Testing
Certificate: ISO9001:2008,ROHS,UL
PCB Size: Can Be Customized
Silkscreen: White, Yellow, Black
Package: Vacuum Package
Product Description

Multilayer aluminum printed circuit board Round Led Pcb Board for downlight​



PCBA Capabilities
Turnkey PCBA
PCB+components sourcing+assembly+package
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Lead Time
Prototype: 15 work days. Mass order: 20~25 work days
Testing on products
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Quantity
Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel Size
Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type
Water Soluble Solder Paste, RoHS lead free
Components details
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape,Tube,Reels,Loose Parts
PCB assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
