94V-0 HASL Lead Free OSP Aluminum PCB Board For T8 Light
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: Single-sided circuit board
High Light:

OSP Aluminum PCB Board


94V-0 Aluminum PCB Board


T8 Light OSP PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Layer: 1-2 Layers
Copper Thickness: 18um,35um
Certificate: ISO9001:2008,ROHS,UL
Surface Finishing: HASL Lead Free
Cover Film: White, Black
Package: Vacuum Package
Product Description

94V-0 OSP Aluminum Circuit PCB Led Module For T8 Light

Aluminum PCB Layers:

Aluminum PCBs are a unique layered system comprised of the following layers.

Circuit Layer:

Printed circuit foil with thickness of 1oz to 5 oz.

Dielectric Layer:  Aluminum Backed Printed Circuit Board

The dielectric layer can have many different options which offer electrical isolation with minimum thermal resistance. Also used to bond the circuit layer and base material together. Each specific dielectric has its own UL recognition. See below for a listing of the different materials that we have in stock to ensure a wide variety of options with quick delivery.

Base Layer:

The base layer is most often aluminum but can also

be copper. The most commonly used thickness is 0.040" (1.0mm) although many alternative thicknesses are available.



Product Name Aluminum Circuit PCB
PCB type FR4 ,alumnium pcb
Board thickness 0.8mm 1.0mm 1.2mm 1.5mm 1.6mm 2.0mm
Copper thickness 0.5oz 1oz 1.5oz 2oz
Soldermask Color Green White Black Blue Red
Silkscreen Color White Black

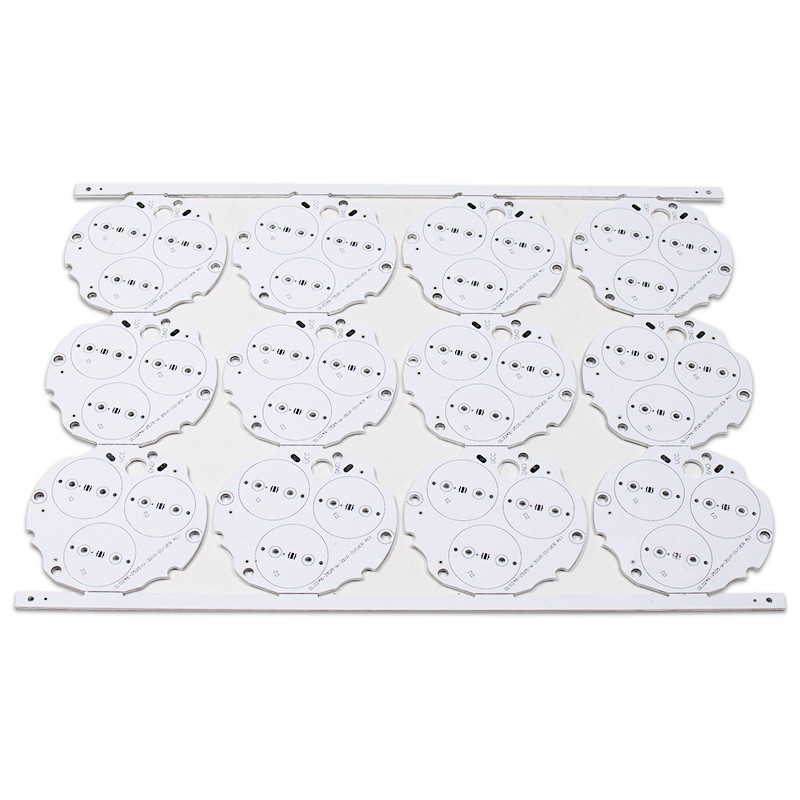

94V-0 HASL Lead Free OSP Aluminum PCB Board For T8 Light 1

Aluminum Circuit PCB Applications:

  • LED Lighting
  • Power Conversion Systems
  • Power Supplies
  • Photovoltaics
  • Telecom & Industrial
  • Automobile Electronics

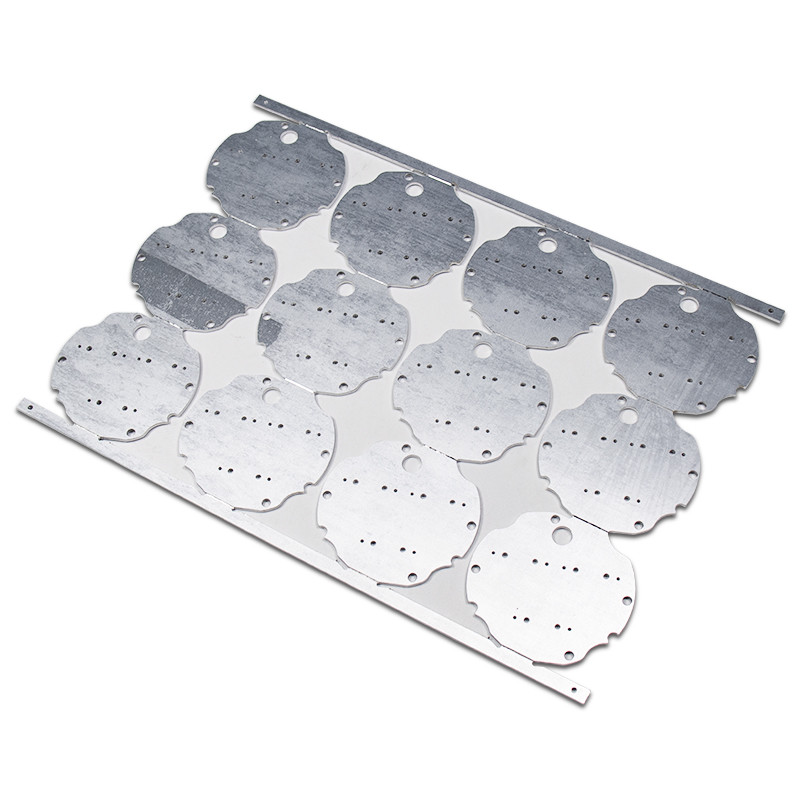

94V-0 HASL Lead Free OSP Aluminum PCB Board For T8 Light 2


Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Is it OK to print my logo on product?
A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
How long can I receive the sample?
A: After you make a payment and send us confirmed files,your samples will be ready within 3-5 work days.
