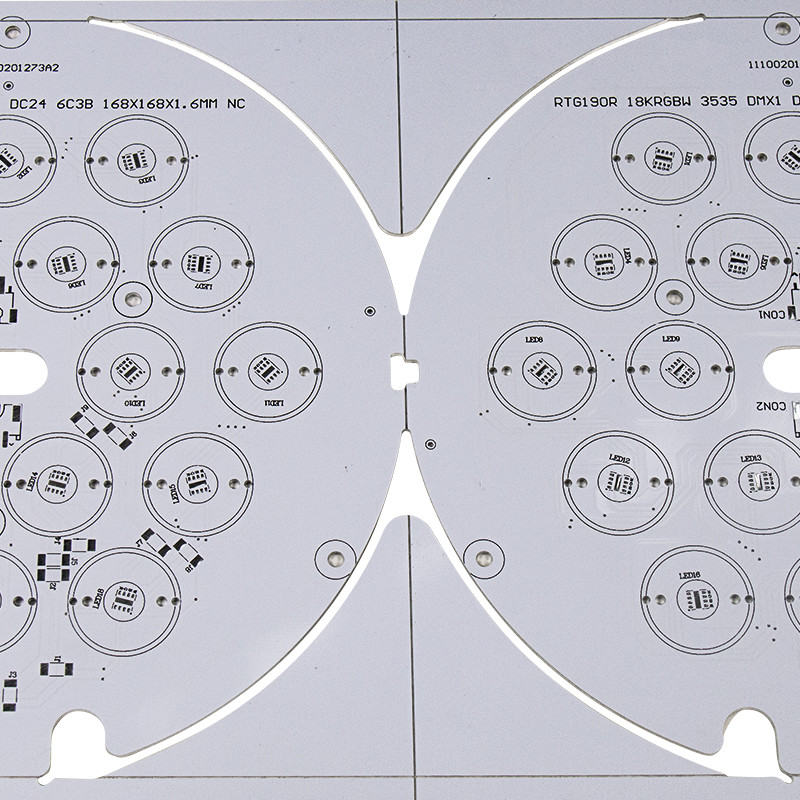

Thickness 1.6mm 2.0mm Custom LED Circuit Board Aluminum Base

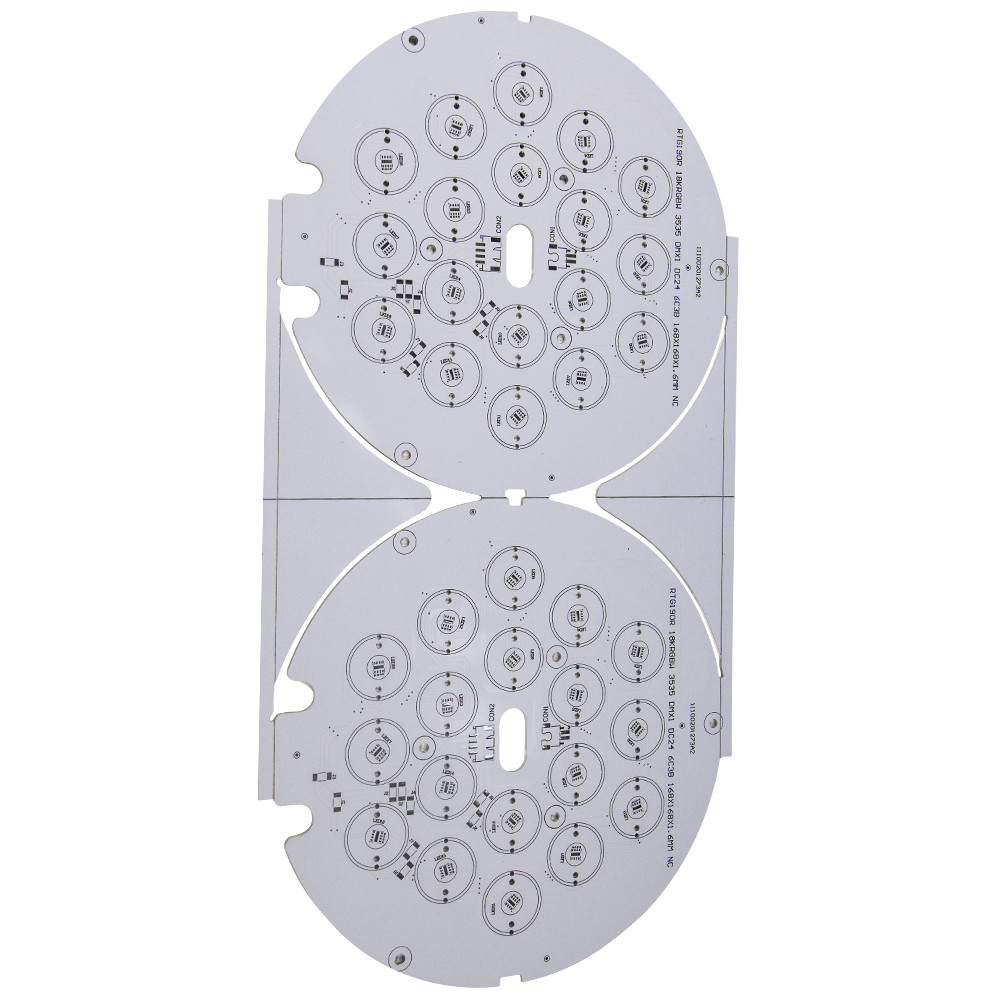

LED PCB Aluminum LED Bulb PCB Board Customized LED PCB manufacturing
Aluminium PCB Stack Up details:
1. Aluminium PCB Copper Traces Layer
The copper circuit (traces) layer is etched to form the printed circuit, Compared to FR4 material,
Aluminium PCB can bear higher electric current when same thick circuit layer and same trace width.
2. Aluminium PCB Dielectic Layer
The dielectic layer is the core technology of the Aluminium PCB, which mainly serves as the function of adhesion, insulation and heat conduction.
The better the thermal conductivity of insulation is, the quicker the components spread the heat when they work, which can realize the purpose like improving power loading of the modules,reducing volume, extending life span and increase the output power.
3. Aluminium PCB Metal Substrate Layer
Usually, considering the cost and technical characteristic, aluminium is the ideal choice. The available aluminum plates are 6061,5052,1060 etc.
If there is a higher heat transfer performance, mechanical properties, electrical properties and other special performance requirements, copper, stainless steel plate, iron plate, silicon steel plate, etc can also be used.
|
Item |
Craft Capacity |
|
Layer |
1-8Layers |
|
Base Material for PCB |
FR4, CEM-1, 22F, Aluminium, High Tg Material, High Frequence ROGERS Halogen-free Material |
|
Thickness |
0.6-2.4mm |
|
Copper thickness |
0.5-2OZ |
|
Surface Treatment |
HASL (Tin-Lead Free), ENIG(Immersion Gold), Immersion Silver , Gold Plating (Flash Gold), OSP, etc. |
|
Soldermask |
Green, White, Red, Yellow, Black, Blue, transparent etc |
|
Min.line width |
0.15mm |
|
Min.line space |
0.15mm |
|
Min.hole size |
0.25mm |
|
E-Testing |
100% E-Testing (High Voltage Testing);Flying probe testing |
|
Certificate |
SGS.UL. ROHS,CQC. ISO9001:2015 |
|
MOQ |
5pcs |
|
Applicable to |
LED light, air conditioner,electric equipent,washing maching |
Applications of Aluminum PCB:
General lighting applications (Streetlight , Flashlight, Spotlight, etc.)
Back light unit applications
System automotive LED applications
Power converters: telecom, high voltage regulator, power supplies
Hybrid/electric motor control applications
Automobile
FAQ:
Q: Do you have any MOQ Limited ?
A: We havent any limited about MOQ .Sample and mass production all can support.
Q: How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q: How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
