Min Hole Size 0.1mm SMD LED Circuit Board For 12v T5 T8 LED Tube
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 02
High Light:

Hole 0.1mm SMD LED Circuit Board

,

HASL High TG PCB

,

Hole 0.1mm SMD LED Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Product Name: Printed Circuit Board
Base Material: Aluminum Base
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL, Gold Fingers,Immersion Gold
PCB Standard: IPC-II Standard
Application: Medical Equipments,automotive Electronics,industry
Product Description

Min Hole Size 0.1mm SMD LED Circuit Board For 12v T5 T8 LED Tube



Smd led pcb circuit board 12v T5 T8 led tube aluminium pcb led panel



Aluminum PCB is the most common type of all Metal Core PCBs (MCPCB), also known as IMS (Isolated Metal Substrate). Aluminum Board is a unique metal-based, copper-clad laminate, with excellent thermal conductivity, high mechanical strength, and dimensional stability.



Copper Thickness
Max 6oz
Board Thickness
0.1mm-7.0mm
Min. Hole Size
0.1mm
Min. Line Width
0.075mm (3mil)
Min. Line Spacing
0.075mm (3mil)
Surface Finishing
HASL,OSP,ENIG, Gold fingers,etc
Board material
FR-4 Tg130-Tg180/ FR-4 CTI175 / FR-4 CTI300/CEM-1/CEM-3
Tolerance
V-cut dept tolerance: +/-0.1mm
Wrap and twist
5%
Minimun thickness of soldermask
10um
Soldermask
Green/ White/ Black/ Blue/ Yellow etc.
Certificate
ISO9001/UL
Testing Service
AOI X-Ray Function Test

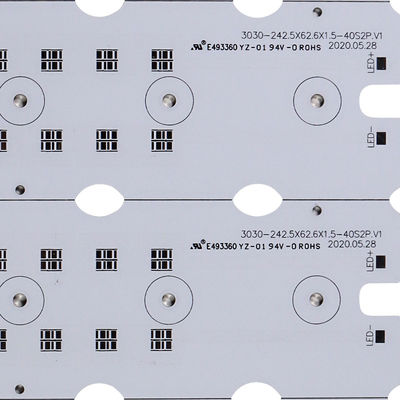

Min Hole Size 0.1mm SMD LED Circuit Board For 12v T5 T8 LED Tube 0









WHY CHOOSE US:



1. QUALITY

All PCBs are 100% electrical tested. They can pick and send PCBs to E-fixture test machines automatically, and place the PCBs at appointed places after testing, according to the test result;All PCBs are 100% visually inspected. All tests and inspect results are recorded in the inspection report and shipped together with the PCBs.



2. EXEPERIENCE

More than 12 years of experiences in the production of PCB. Professional Engineer and oversea sales team in the PCB industry fully involved in the whole business procedures.Designed and manufactured various complex PCBs, which can meet all your design and manufacturing needs.



3. Equipment

More than 80% are automated production equipment, improves the production efficiency and product quality.And a variety of famous brand equipment is used in all processes, including Drilling, Electroless Plating, Electroplating, Etching, Solder Mask, Silk Screen, Chemical Gold, Electrolytic Gold, CNC Profiling,Electrical Testing, and Packing.



4. Price

Since we are directly operated by the factory, intermediate links are omitted. Secondly, we have a complete supply chain management system to control the cost of production, manufacturing and procurement sources. We will give you the cheapest purchase price to compare with other factories or manufacturers while ensuring good quality.



Min Hole Size 0.1mm SMD LED Circuit Board For 12v T5 T8 LED Tube 1
