Lightweight ROHS OSP PCB High Current Rigid PCB Control Board
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Pcb Board 01
High Light:

ROHS OSP PCB

,

Lightweight OSP PCB

,

OSP Rigid PCB Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Brand Name: Yizhuo
Base Material: Aluminum Base
Copper Thickness: 1/2OZ
Peelable: 0.3-0.5mm
Profiling Punching: Routing, V-CUT, Beveling
Service: One-stop Service
Product Description

Lightweight ROHS OSP PCB High Current Rigid PCB Control Board



Electronic Printed Circuit Board Osp Pcb Rohs High Current Rigid Pcb Control Board



CNC Our products include: double-sided, multi-layer boards, metal base (core) boards, high Tg thick copper foil boards, HDI, flexible circuit boards, rigid-flex boards and various customized printed circuit boards with special requirements. The circuit boards produced by the company are widely used in computers, communication products, household appliances, instrumentation, industrial equipment, automobiles, aerospace, microelectronics, capacitive screens, touch screens, LCDs,and LEDs.





LAYER

PROTOTYPE

MASS PRODUCTION (above 20 m2)

Quick Turn

Standard Time

MC PCB

48 hours

4-5 days

10-12 days

PFC 1 L

48 hours

5-6 days

12-13 days

1L

24 hours

3-4 days

8-10 days

2L

24 hours

3-4 days

8-10 days

4L

48 hours

5-6 days

8-10 days

6L

72 hours

6-7 days

10-12 days

8L

72 hours

7-8 days

12-14 days

10L

96 hours

9-10days

16-18 days



What is an SMD LED PCB Board?



SMD stands for Surface Mount Device. The surface mount technology (SMT) has almost replaced the through-hole technology. However, through-hole technology is still used for the components that cannot be surface mounted. Therefore, Surface Mount LED PCB is very popular

SMDs are compact components that can be directly placed over the PCB. There is no need for a hole because the components do not have leads or might have small leads. There are only small contacts at the ends of the device that are used to make connections. Consequently, the PCBA is very compact. SMDs are soldered using reflow soldering. At first, the solder paste is applied on the bare board. Then, the components are picked and placed in the desired place. Finally, the board is passed through a reflow oven, and the components are directly mounted without any hassle.

An SMD LED PCB board contains SMD LEDs that are more compact than their through-hole equivalents. SMD LEDs are widely used nowadays. They provide higher lumen output, which improves the level of illuminance in the area. They are more efficient and brighter. This is the reason SMD LED PCB boards are preferred.

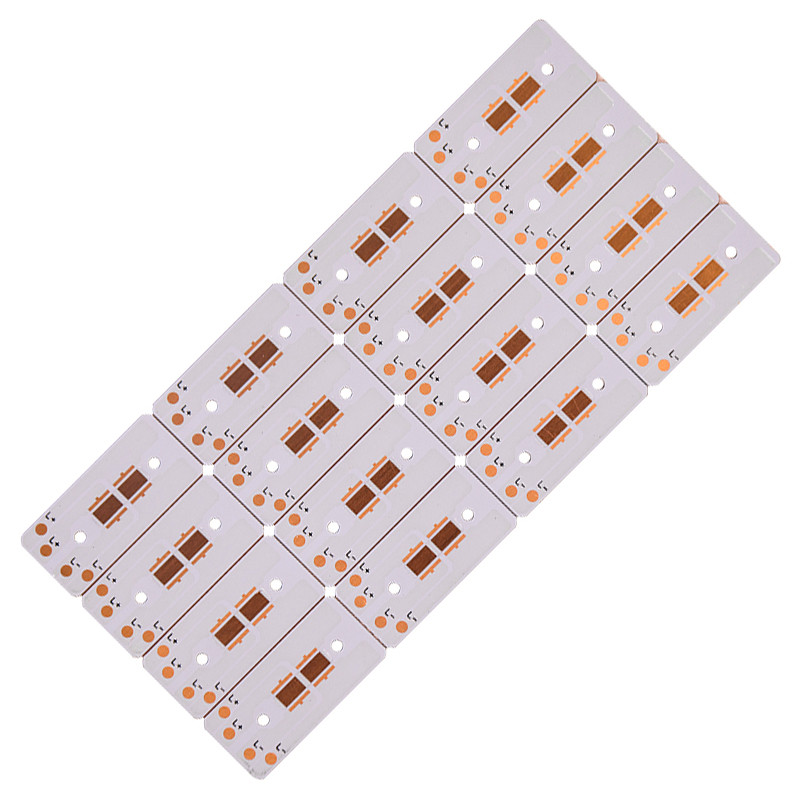

Lightweight ROHS OSP PCB High Current Rigid PCB Control Board 0


Lightweight ROHS OSP PCB High Current Rigid PCB Control Board 1
