SMD Min Distance 8mil 94V0 LED Light PCB Custom Aluminum Core
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: Aluminum Core LED PCB
High Light:

94V0 LED Light PCB

,

Min Distance 8mil LED Light PCB

,

94V0 SMD LED PCB Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Hole Tolerance: PTH: +/-3mil NPTH: +/-2mil
Base Material: Aluminum Base
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL, Gold Fingers,Immersion Gold
Min Distance Pad-pad: 8mil
Application: Medical Equipments,automotive Electronics,industry
Product Description

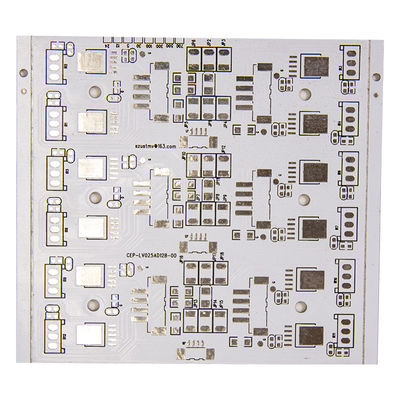

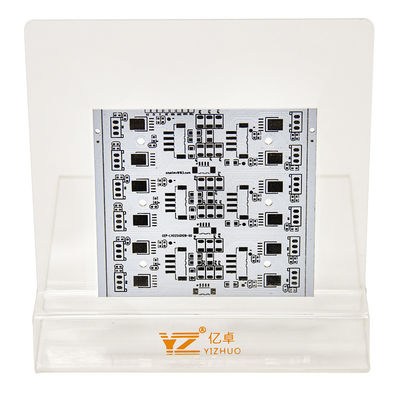

SMD Min Distance 8mil 94V0 LED Light PCB Custom Aluminum Core



Custom Aluminum Core LED PCB Board 94v-0 Strip SMD Led PCB Board



LED PCBs is the core of the LED lighting. A chip creates an electrical connection between LED and printed circuit board, and there has a thermal heat sink to dissipate heat. Because of the well-performance in dissipate heat, the metal core PCBs, especially aluminum PCBs are popular for LED PCB manufacturers. Usually, the aluminum LED PCB has a thin layer of thermally conductive dielectric material that is more efficient at dissipating heat than traditional PCBs.



Copper thickness

0.5oz, 1oz, 2oz, 3oz and 4 oz

Dielectric Thickness
(to Substrate)

0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm

Substrate Core Thickness

0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm

Finished Board Thickness

0.4mm To 4.0mm

Thickness Tolerance

+/-10%

Aluminum Machining

Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available

Min. Finish hole size

0.25mm

Max.working voltage

2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric)

Min.Track Width

0.2mm (8mils)

Min.Track gap

0.2mm (8mils)

Min. SMD pad pitch

0.2mm (8mils)

Surface Finishing

HASL, HASL Leadfree, Immersion gold, Flash gold, OSP

Soldermask color

White, Black, others Available



Application of aluminum PCB

1. Audio equipment: input, output amplifier, balanced amplifier, audio amplifier, preamplifier, power amplifier.

2. Power supply: switching regulator, DC / AC converter, SW regulator, etc.

3. Communication electronics: high-frequency amplifiers, filtering equipment, transmitting circuits

4. Office automation equipment: motor drive, etc.

5. Automotive: electronic regulator, igniter, power controller, etc.

6. Computer: CPU board, floppy drive, power supply, etc.

7. Power module: inverter, solid state relay, rectifier bridge.

8. Lamps and lighting: As the promotion of energy-saving lamps, various color energy-saving LED lamps have been welcomed by the market, and aluminum PCBs for LED lamps have also begun to be applied on a large scale.
