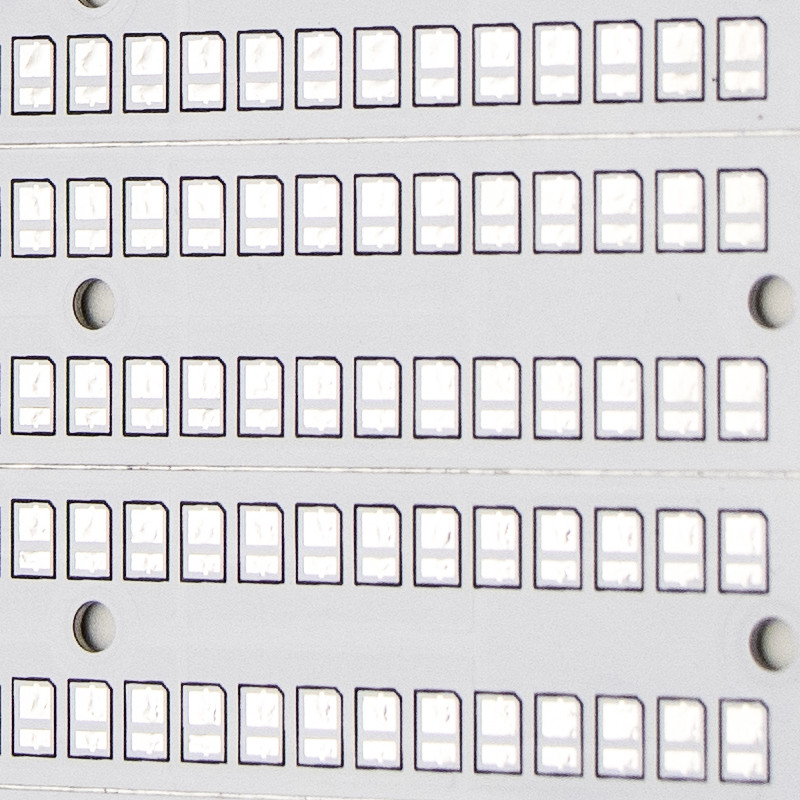

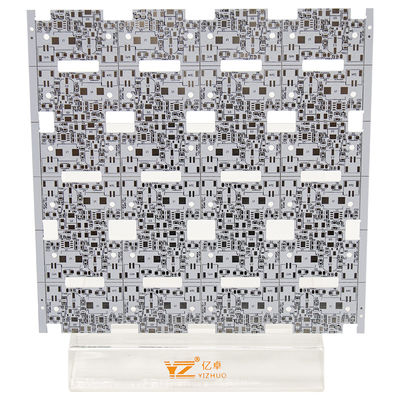

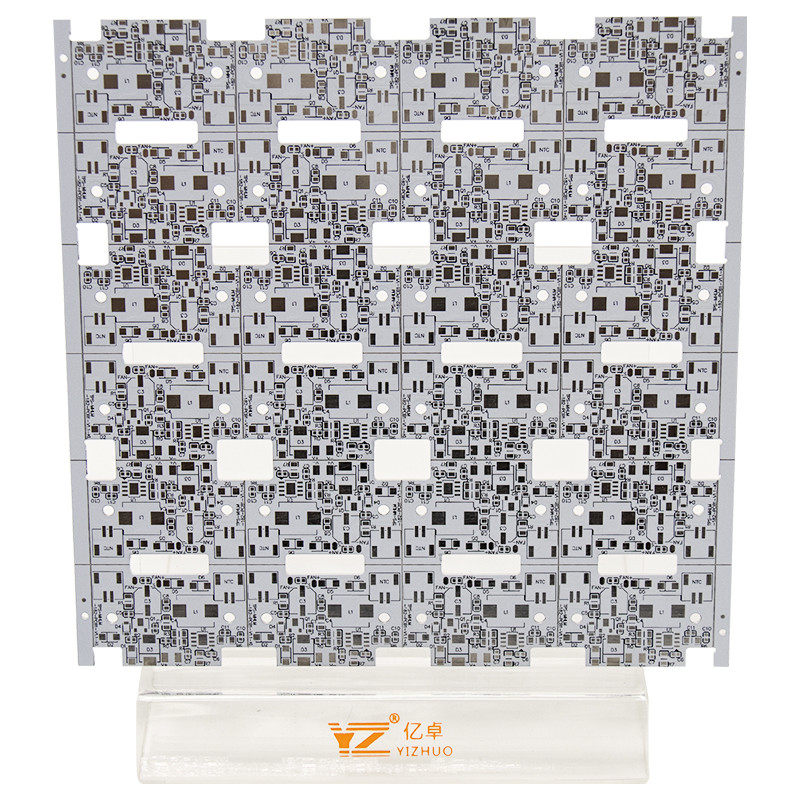

Aluminum SMD 5730 LED Lamp Circuit Board Copper Thickness 0.5oz 4.0oz
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: LED PCB Board 12
High Light:

SMD 5730 LED Lamp Circuit Board

,

4.0oz LED Lamp Circuit Board

,

Copper 0.5oz LED Strip PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Layers: 1-2 Layers
Material: Aluminum Material
Copper Thickness: 0.5-4.0oz
Surface Finishing: HASL/ENIG/OSP/Immersion Silver
Min. Line Width: 0.3-0.35um
Application: Medical Equipments,automotive Electronics,industry
Product Description

Aluminum SMD 5730 LED Lamp Circuit Board Copper Thickness 0.5oz 4.0oz



Aluminum Lamp Circuit Board LED light SMD 5730 LED Strip PCB​



Wide Application of LED Lighting

LED is an abbreviation for light-emitting diode. An LED is mostly a two-lead semiconductor device that emits light when current passes in a specific direction. Although LEDs start with devices that only emit low-intensity infrared light, this technology has been widely used in lighting for many years. Modern LEDs provide not only high intensity, very bright light but also different uses and use in various scenes, such as plant growth lights, car lights, street lights, traffic lights, shadowless lights in hospital operating rooms.



LED Printed Circuit Board

Soldering the LED chip to the PCB Board, as long as the PCB circuit is connected in some way, it will illuminate, which forms the LED PCB. LED PCBs typically also have a heat sink and ceramic pedestal to hold the circuit in place and allow the smooth operation of the channel. A heat sink is required because LEDs tend to generate a lot of heat, which can damage the PCB and the equipment that connects the circuits.

Because LED will produce a lot of heat, led PCB generally uses metal substrate as its production material. Metals with the ability to dissipate heat quickly have proved to be a better choice. Generally, whenever led PCB is designed, Aluminum PCB is preferred. Aluminum PCB usually also contains a thin layer of dielectric, which can dissipate heat faster.

In addition to general lighting, led PCB can also provide visible light, infrared, and ultraviolet light. Compared with other light sources, LED PCB can provide higher energy.



1

Layer

1-30 layer

2

Material

FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum

3

Board thickness

0.2mm-7mm

4

Max.finished board side

500mm*500mm

5

Min.drilled hole size

0.25mm

6

Min.line width

0.075mm(3mil)

7

Min.line spaceing

0.075mm(3mil)

8

Surface finish/treatment

HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating

9

Copper thickness

0.5-4.0oz

10

Solder mask color

green/black/white/red/blue/yellow

11

Hole tolerance

PTH:±0.076, NTPH:±0.05

12

Certificate

UL, ISO9001,ISO14001,ROHS





Aluminum SMD 5730 LED Lamp Circuit Board Copper Thickness 0.5oz 4.0oz 0



FAQ:

Q1.  How about your supply capacity?

A:  Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.



Q2.  Is it OK to print my logo on product?

A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q3.  How long is the lead time?

A:  It is 5-10 word days for sample , it is 15-20 work days for bulk quantity.
